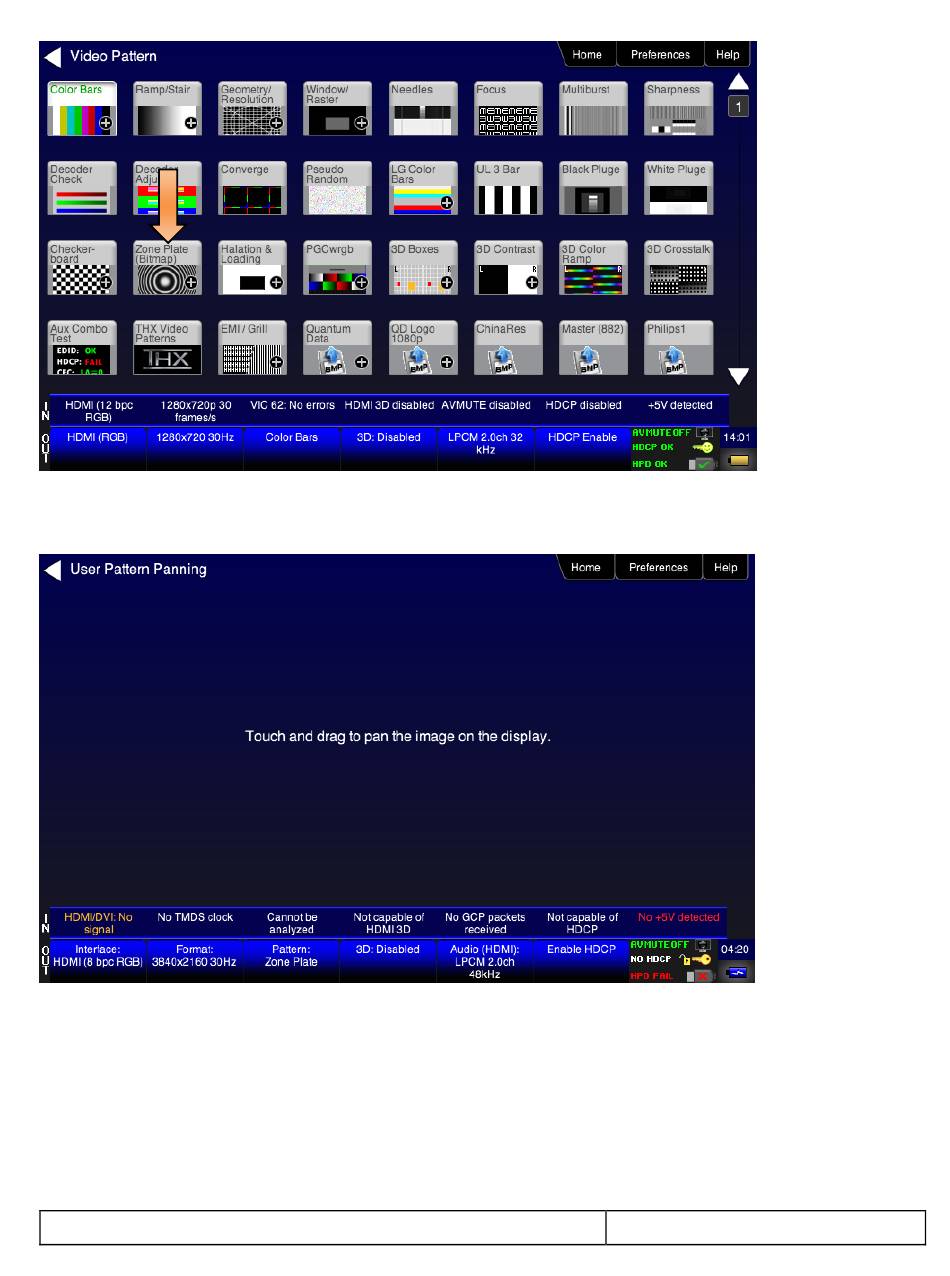

A message will appear informing you how to scroll the bitmap.
2. Drag and pan the test pattern.
4.7.3
Procedures for Viewing the Video from an HDMI Source Device
Use the following procedures to view the incoming video from an HDMI source device.
1. Connect the HDMI source device under test to the 780B HDMI IN connector.
2. Touch select Video Display from the Home menu shown below.
December 1, 2014
Revision A7
