780B Video Generator/Analyzer – User Guide
3. Touch select the Start Fullscreen activation button on the Video Display menu to view the incoming video
without viewing the metadata from the source device under test.

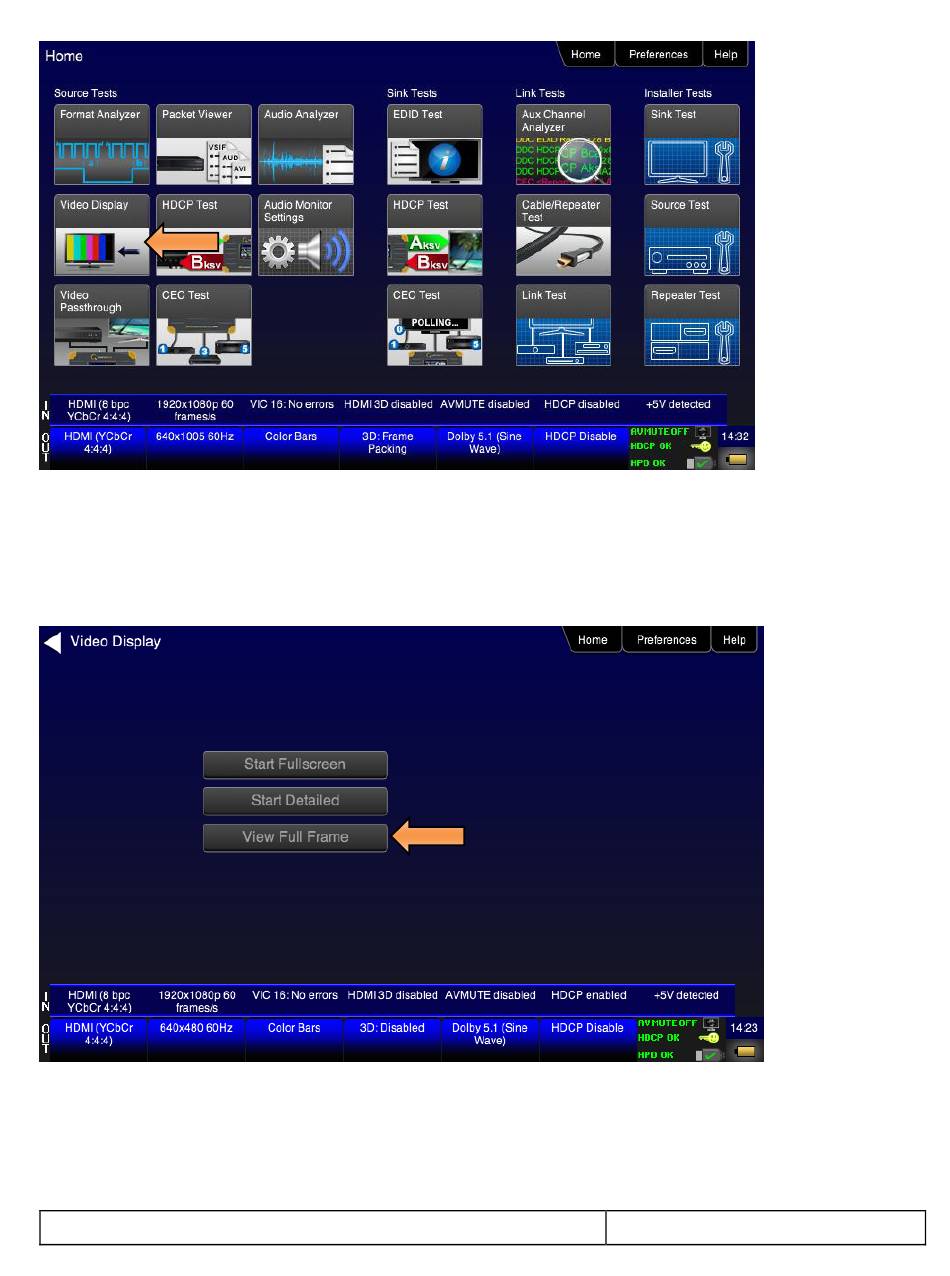

Note: The 780B has an additional option for viewing a captures incoming video screen and scrolling
throughout the entire video resolution. This is shown on the second screen shot below as View Full
Frame.
The video from the source is shown on the 780B LCD as depicted below.
December 1, 2014
Page 51
Revision A7
