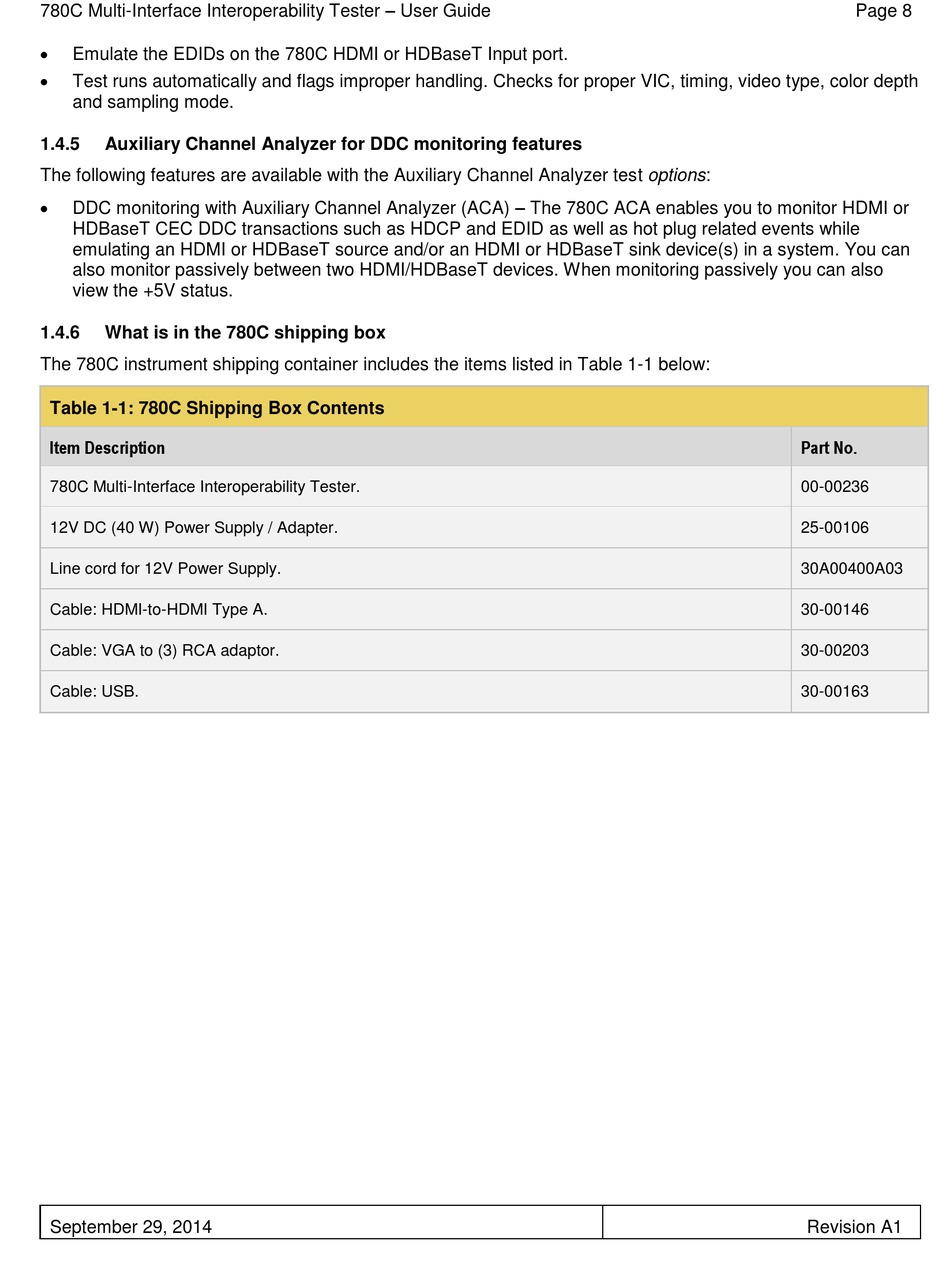

780C Multi-Interface Interoperability Tester – User Guide

Emulate the EDIDs on the 780C HDMI or HDBaseT Input port.

Test runs automatically and flags improper handling. Checks for proper VIC, timing, video type, color depth
and sampling mode.
1.4.5

Auxiliary Channel Analyzer for DDC monitoring features

The following features are available with the Auxiliary Channel Analyzer test options:

DDC monitoring with Auxiliary Channel Analyzer (ACA) – The 780C ACA enables you to monitor HDMI or
HDBaseT CEC DDC transactions such as HDCP and EDID as well as hot plug related events while
emulating an HDMI or HDBaseT source and/or an HDMI or HDBaseT sink device(s) in a system. You can
also monitor passively between two HDMI/HDBaseT devices. When monitoring passively you can also
view the +5V status.
1.4.6

What is in the 780C shipping box

The 780C instrument shipping container includes the items listed in Table 1-1 below:
Table 1-1: 780C Shipping Box Contents
Item Description
780C Multi-Interface Interoperability Tester.
12V DC (40 W) Power Supply / Adapter.
Line cord for 12V Power Supply.
Cable: HDMI-to-HDMI Type A.
Cable: VGA to (3) RCA adaptor.
Cable: USB.
September 29, 2014
Page 8
Part No.
00-00236
25-00106
30A00400A03
30-00146
30-00203
30-00163
Revision A1
