780B Video Generator/Analyzer – User Guide
5. Touch select the screen to return to Video Display menu.

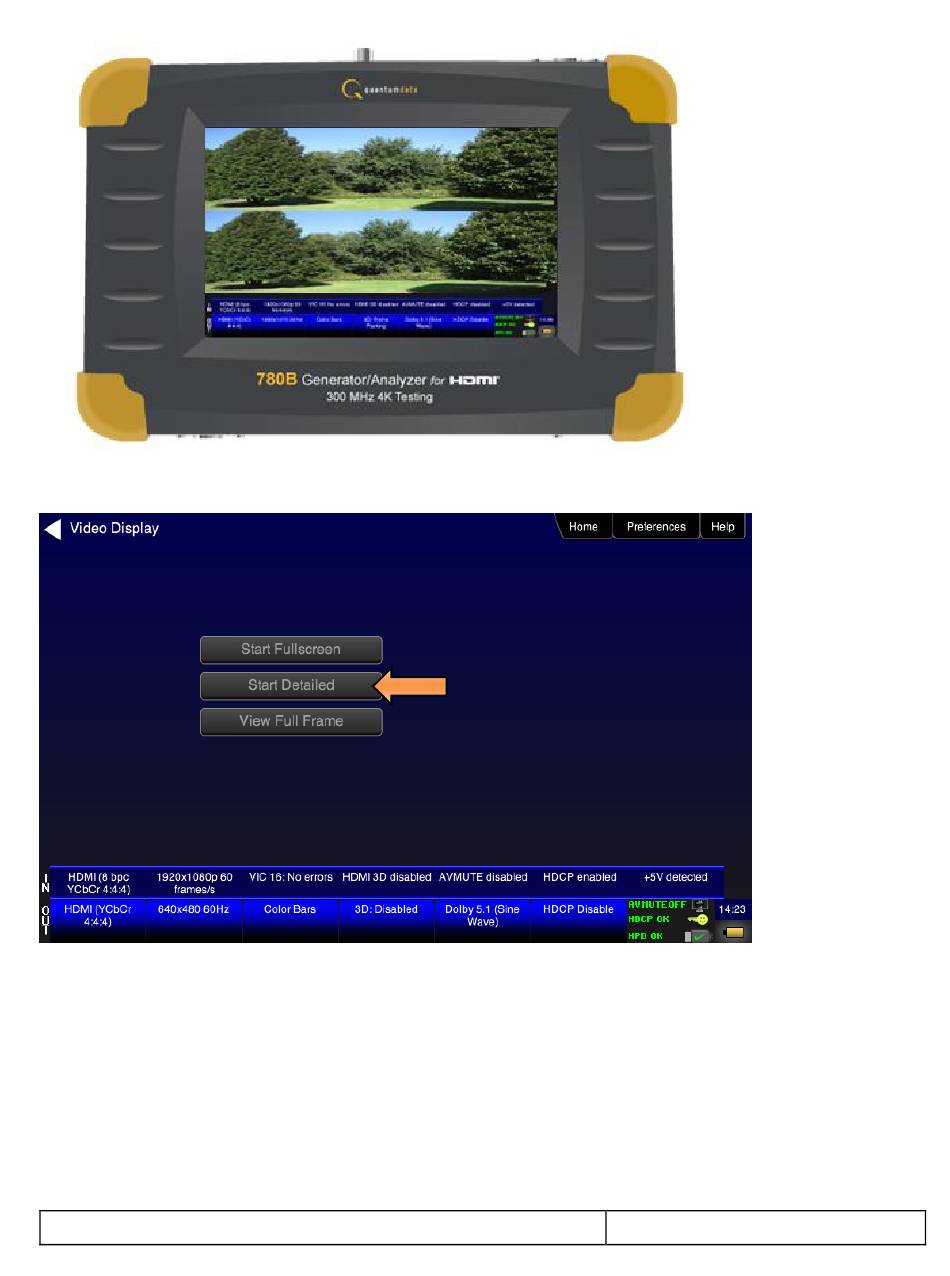

6. Touch select the Start Detailed activation button on the Video Display menu to view the incoming video
along with the metadata from the source device under test. In this example a test pattern is shown.
Note that the HDCP encryption status and AVmute status are also shown.
December 1, 2014
Page 84
Revision A7
