780B Video Generator/Analyzer – User Guide
This subsection provides procedures for monitoring the CEC transactions using the ACA of HDMI sink devices.
Note: You will have to obtain a license key for the ACA option to use the feature.
1. Connect the HDMI system devices to the 780B in either of the ways shown in the diagrams above and
described as follows:
a. The HDMI sink device input is connected the 780B HDMI OUT connector, or
b. The HDMI source device input is connected to the 780B HDMI IN connector.

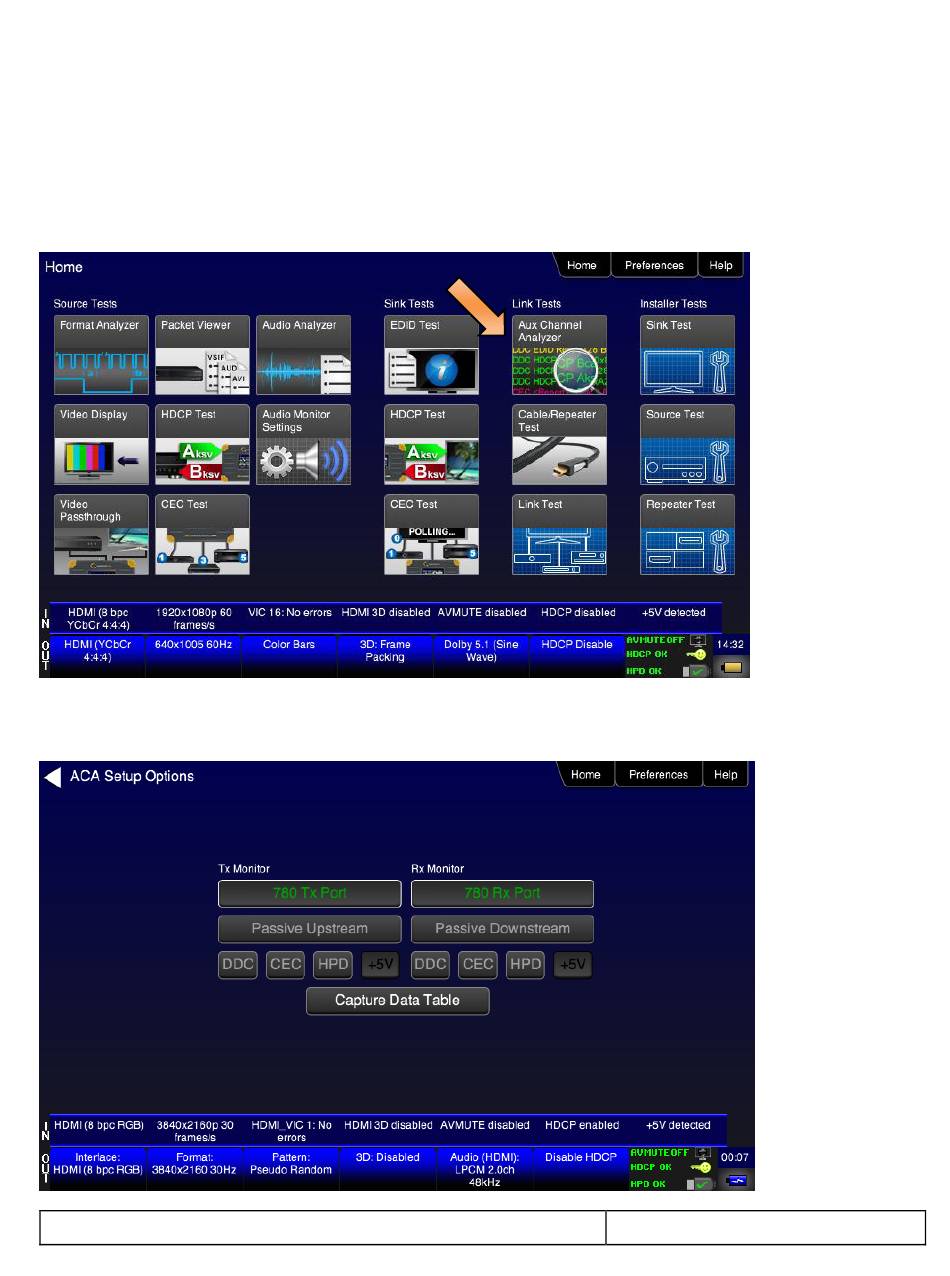

From the main screen (shown below) touch select the Aux Channel Analyzer activation button.
The ACA Setup Options screen appears:
December 1, 2014
Page 134
Revision A7
