780B Video Generator/Analyzer – User Guide

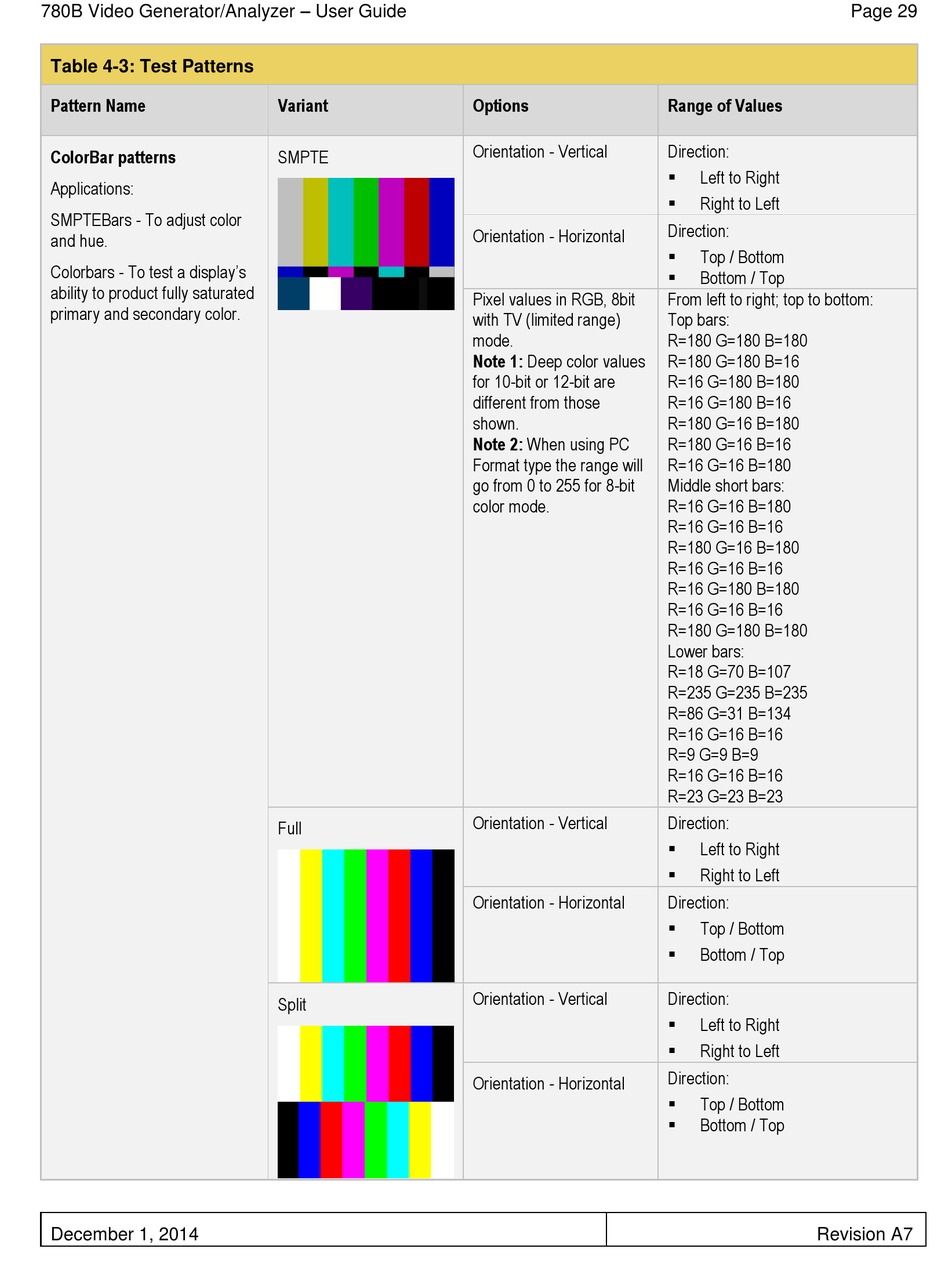

Table 4-3: Test Patterns
Pattern Name
ColorBar patterns
Applications:
SMPTEBars - To adjust color
and hue.
Colorbars - To test a display's
ability to product fully saturated
primary and secondary color.
December 1, 2014
Variant
SMPTE
Full
Split
Options
Orientation - Vertical
Orientation - Horizontal
Pixel values in RGB, 8bit
with TV (limited range)
mode.
Note 1: Deep color values
for 10-bit or 12-bit are
different from those
shown.
Note 2: When using PC
Format type the range will
go from 0 to 255 for 8-bit
color mode.
Orientation - Vertical
Orientation - Horizontal
Orientation - Vertical
Orientation - Horizontal
Range of Values
Direction:
 Left to Right
Right to Left

Direction:
Top / Bottom

 Bottom / Top
From left to right; top to bottom:
Top bars:
R=180 G=180 B=180
R=180 G=180 B=16
R=16 G=180 B=180
R=16 G=180 B=16
R=180 G=16 B=180
R=180 G=16 B=16
R=16 G=16 B=180
Middle short bars:
R=16 G=16 B=180
R=16 G=16 B=16
R=180 G=16 B=180
R=16 G=16 B=16
R=16 G=180 B=180
R=16 G=16 B=16
R=180 G=180 B=180
Lower bars:
R=18 G=70 B=107
R=235 G=235 B=235
R=86 G=31 B=134
R=16 G=16 B=16
R=9 G=9 B=9
R=16 G=16 B=16
R=23 G=23 B=23
Direction:
 Left to Right
Right to Left

Direction:
Top / Bottom

Bottom / Top

Direction:
Left to Right

 Right to Left
Direction:
 Top / Bottom
 Bottom / Top
