780B Video Generator/Analyzer – User Guide
Page 193
12.3 Procedures for using the Command Line Interface through RS-232 Port
(780B only)
Use the following procedures for command line control of the 780B via the RS-232 serial port.
Please note if you experience a different behavior on your PC, refer to the 780B release notes on the Quantum
Data website at: http://www.quantumdata.com/downloads/index.asp.

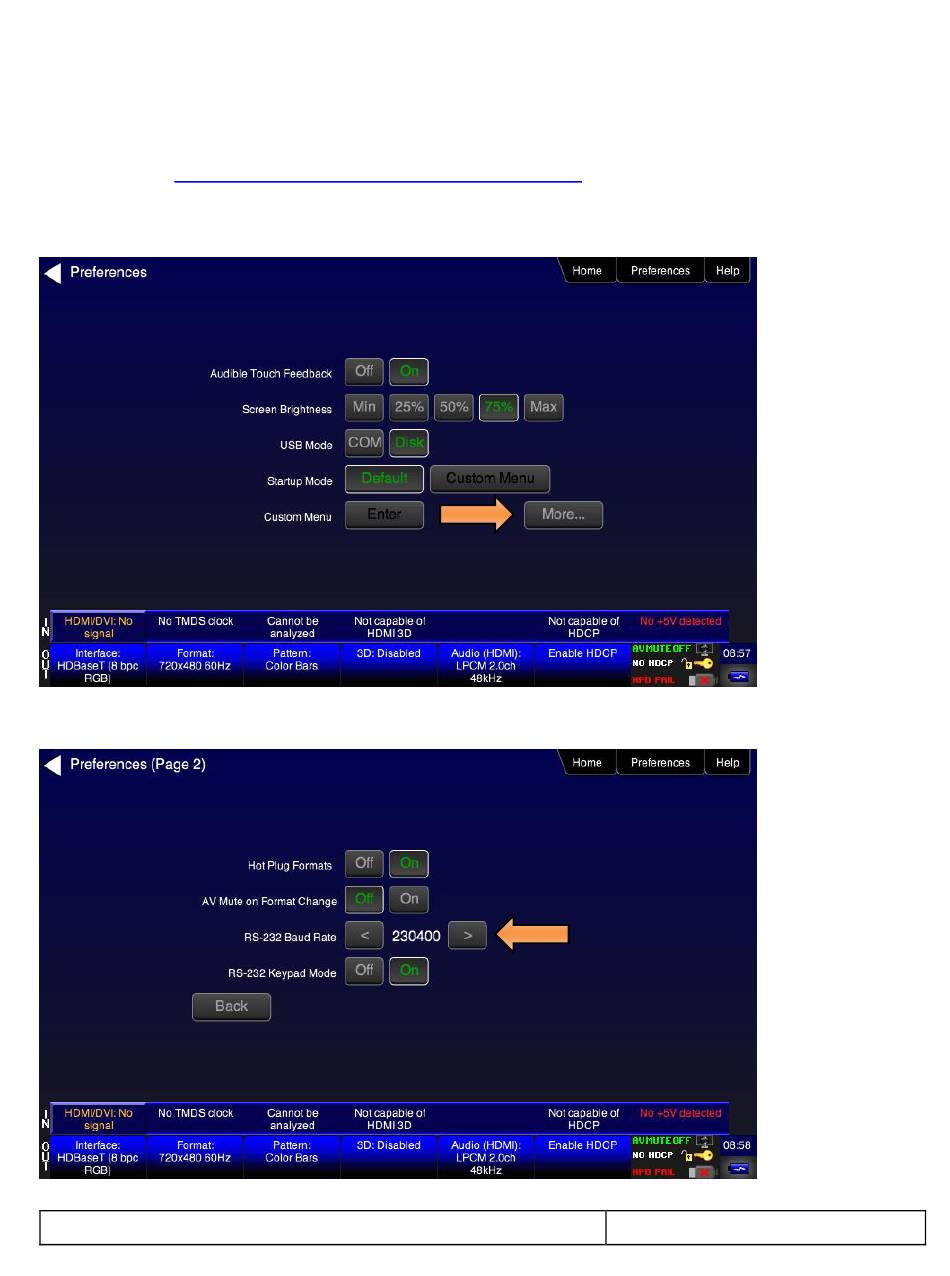

1. Power up the 780B and touch select Preferences from the 780B top level menu.
2. Select More to view the second Preferences page.
3. Choose the baud rate for the RS-232 port.
December 1, 2014 Revision A7
