780B Video Generator/Analyzer – User Guide

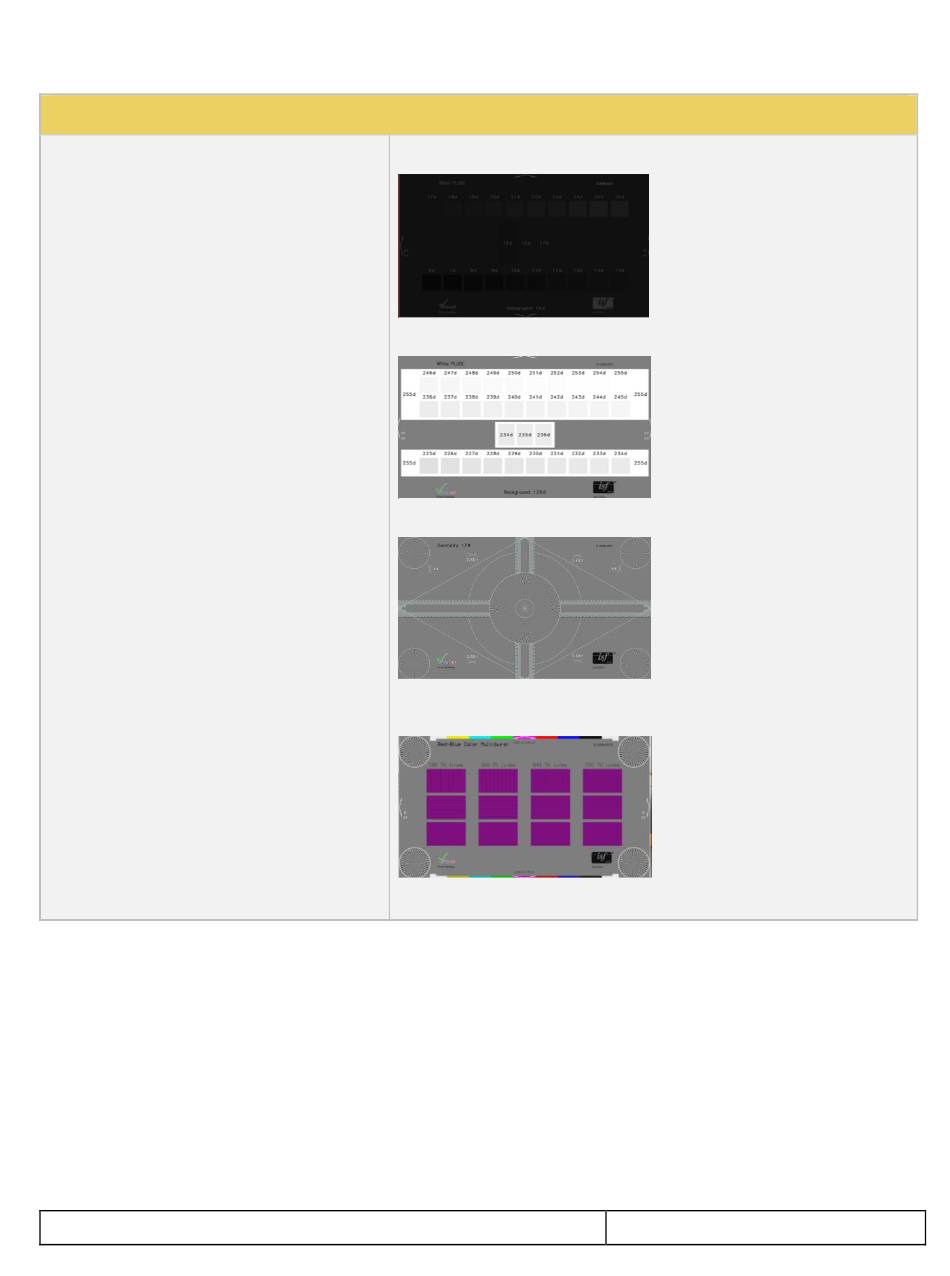

Table 4-6: Custom Test Image Packs – ISF
ISF Test Patterns
The ISF Pattern Pack offers patterns for verifying
white and black levels as well as geometry and
resolution for calibrating high end HDTVs

4.5 Rendering 3D Test Patterns on an HDTV

This subsection describes how to render 3D test patterns on an HDTV. The 780B supports Side-by-Side, Top-
and-Bottom and Frame Packing (for both interlaced and progressive timings) 3D format structures.
4.5.1

Configurations for Rendering 3D Bitmaps on an HDMI Sink Device

Typically you will render 3D bitmap images with the 780B directly connected to an HDTV. This configuration is
shown below:
December 1, 2014
®
Test Patterns
Black Pluge - for calibrating black level for dynamic range.
White Pluge - for calibrating white level for dynamic range.
Geometry/Resolution – test pattern to verify geometry and resolution.
Red-Blue Color Multiburst – test pattern for verifying chroma resolution for red and
blue transitions.
Page 44
Revision A7
