780B Video Generator/Analyzer – User Guide
4. Enable HDCP on the HDMI source device under test. Use the procedures in the section entitled:
HDCP on an HDMI HDTV or HDMI Repeater
5. Take whatever action necessary to initiate CEC messages.

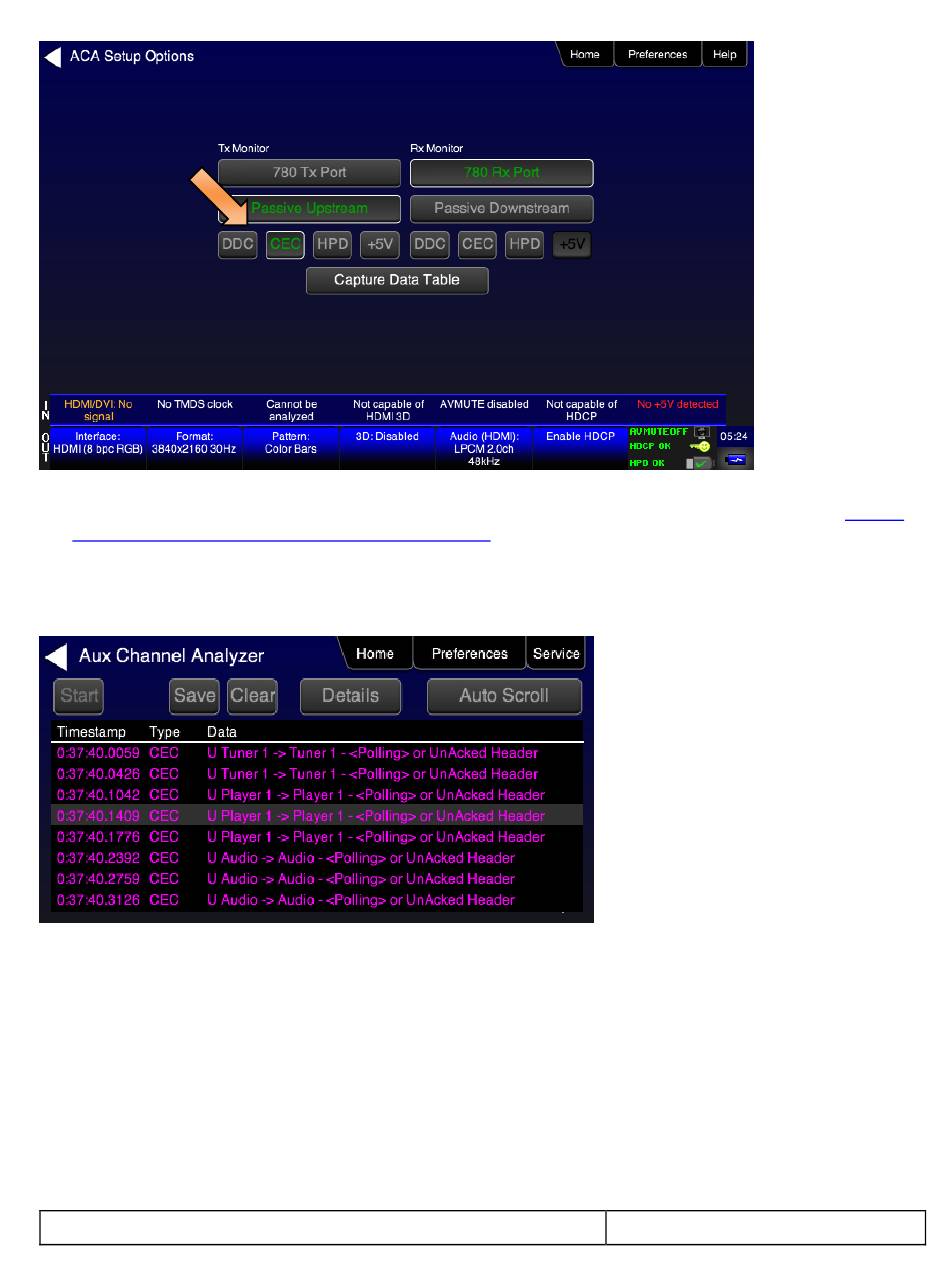

6. Touch select the Capture Data Table activation button to initiate the capturing of the data. A screen similar
to the one shown below will appear.
Touch select the Details activation button (top center) to view the details of any specific transaction that
you have selected. The following screen is an example of the details screen. These screen examples show
polling example.
December 1, 2014
Device.
Page 145
Testing
Revision A7
