780B Video Generator/Analyzer – User Guide
5.2.2

Procedures for Testing and Viewing the EDID on an HDMI Sink Device

Use the procedures below to run an EDID test on an HDMI sink.

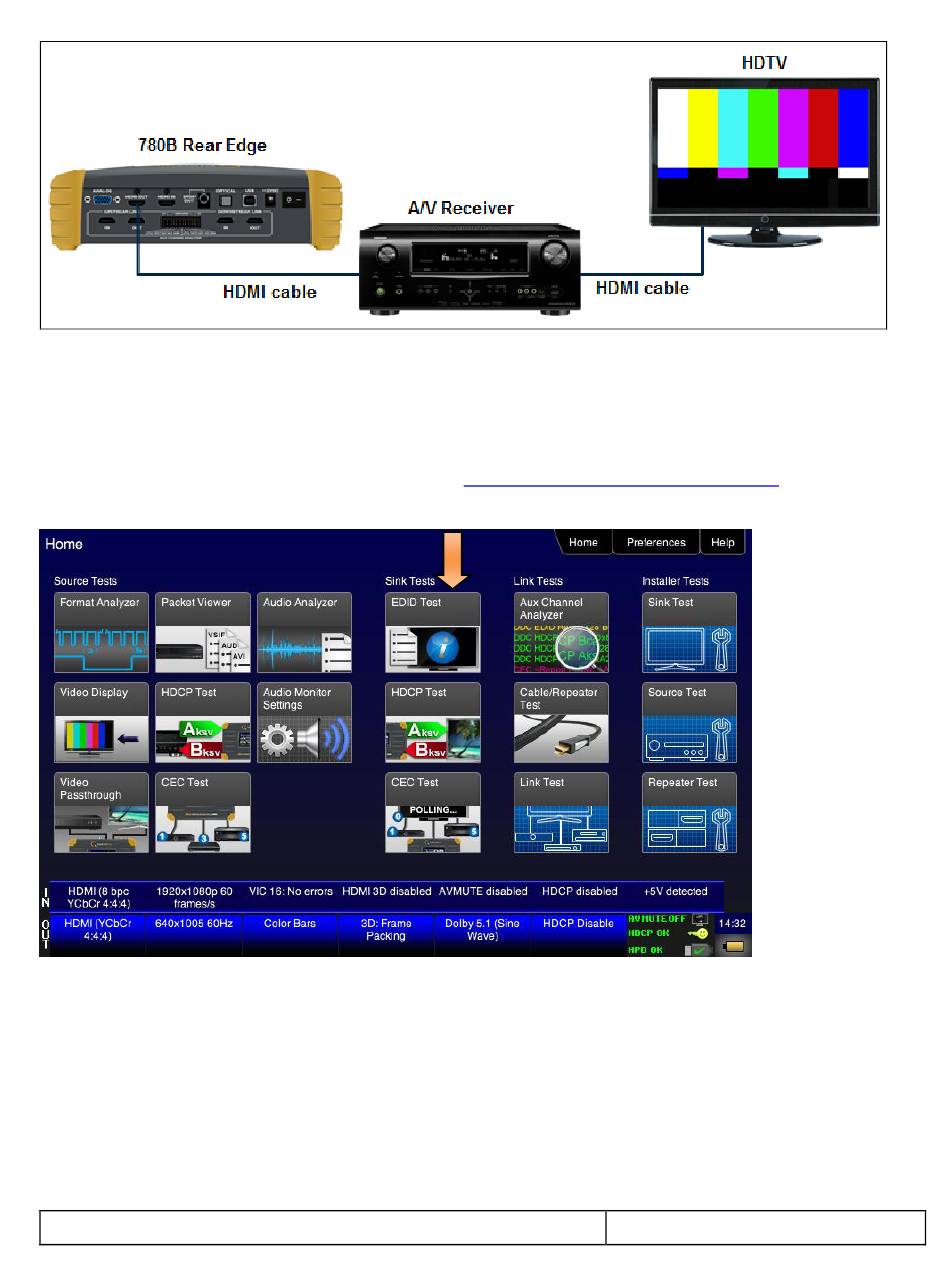

1. Make the physical connections between the 780B HDMI OUT connector and the display device under test.
2. Enable the HDMI output using the procedures at
3. Touch select EDID from the Home menu shown below.
4. Touch select the Read activation button from the EDID Test menu shown below.
The EDID information is presented on multiple pages on the display. An example of a few of the pages of
an EDID listing is shown below. You scroll through all the pages using the scroll bar at the right side of the
listing. In addition, the EDID test runs a check on the EDID header and checksum to determine if the EDID
is valid and runs a portion of the EDID compliance test of the HDMI Compliance Test Specification.
December 1, 2014
Selecting a Signal Type and
Page 70
Resolution.
Revision A7
