780B Video Generator/Analyzer – User Guide
Table 4-3: Test Patterns
Pattern Name
assign it the same name.
4.4

Using Custom Test Image Packs

The 780B provides licensed image packs for certain sets of test images. You need to have a license key to use
these custom test image packs. You can arrange to get access to them by contacting Quantum Data customer
support at: http://www.quantumdata.com/support.

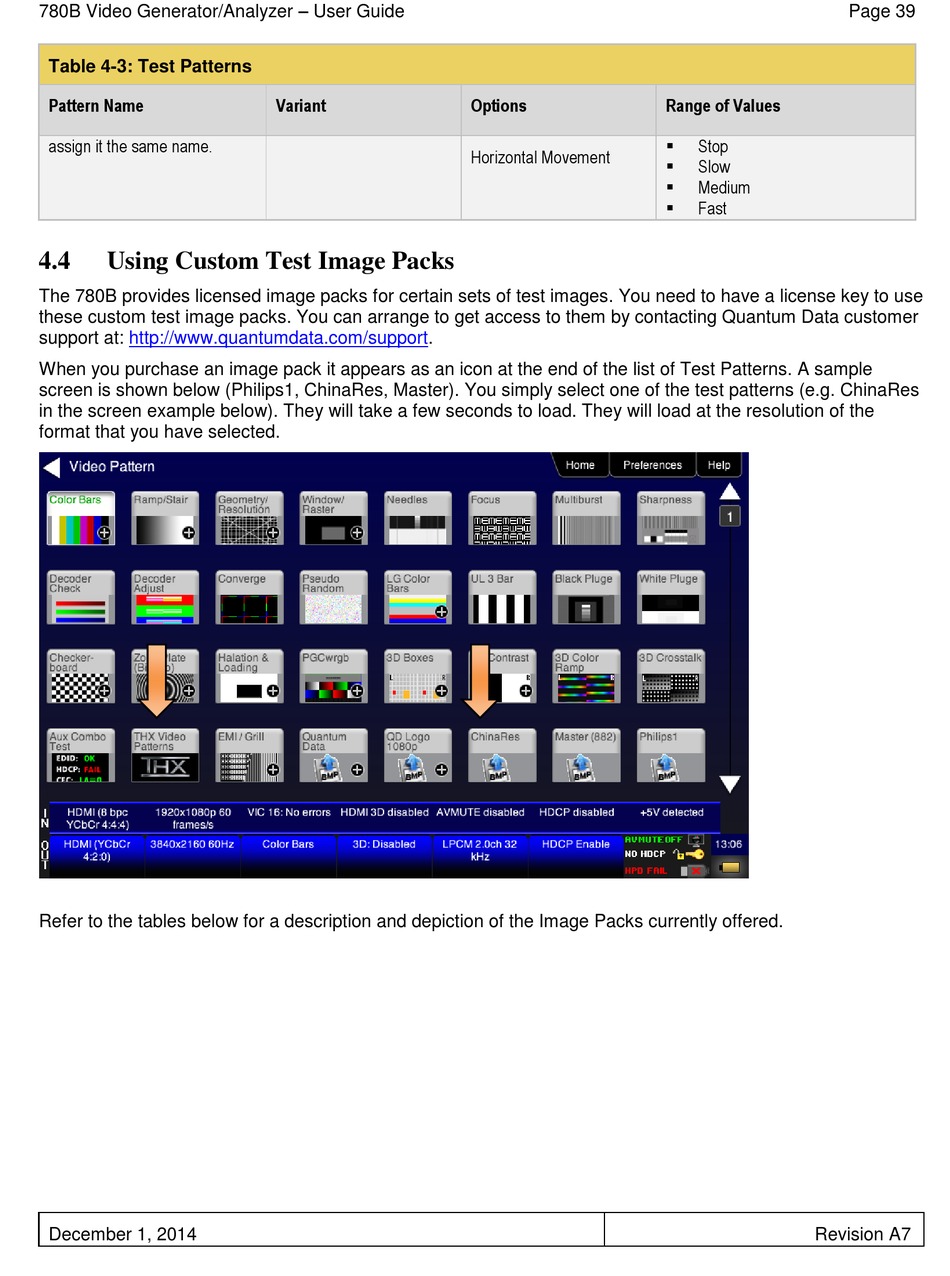

When you purchase an image pack it appears as an icon at the end of the list of Test Patterns. A sample
screen is shown below (Philips1, ChinaRes, Master). You simply select one of the test patterns (e.g. ChinaRes
in the screen example below). They will take a few seconds to load. They will load at the resolution of the
format that you have selected.
Refer to the tables below for a description and depiction of the Image Packs currently offered.
December 1, 2014
Variant Options
Horizontal Movement
Range of Values
Stop

Slow

 Medium
Fast

Revision A7
Page 39
