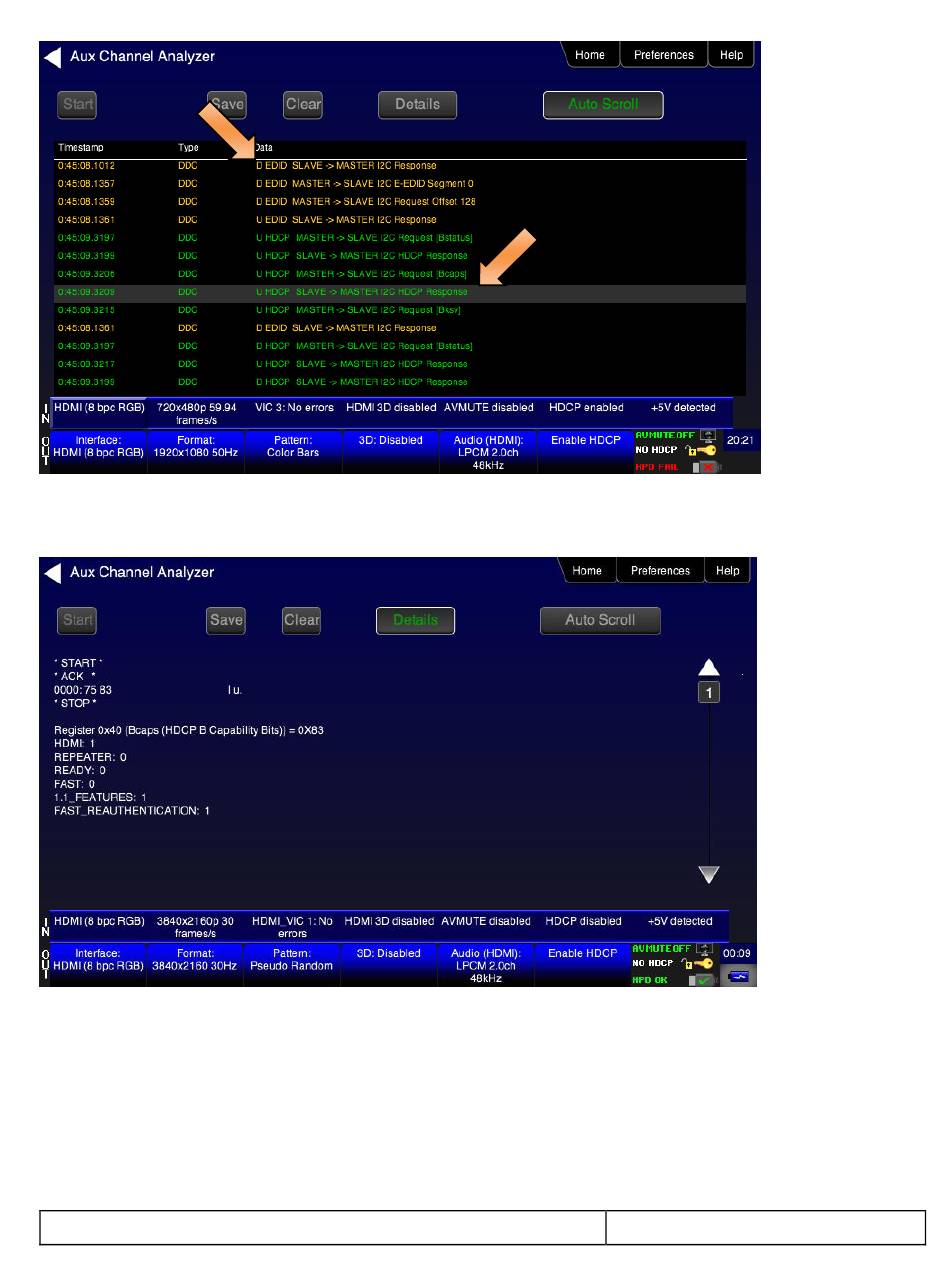

8. Touch select the Details activation button (top center) to view the details of any specific transaction that
you have selected. The following screen is an example of the details screen. This example shows the
BCAPS register details.
9. Touch select Stop activation button (top left) to halt the collection of messages.
10. Touch select Clear activation button (top center) to clear the collected of messages.
8.3.3 Configuration for Passive Monitoring the Upstream Devices while Emulating an HDMI Sink
Device with the Auxiliary Channel Analyzer on HDMI Devices
This subsection provides configuration diagrams that depict ACA passive and emulation monitoring of an HDMI
system.
