2. Select the data types that you wish to monitor. In this application you would select CEC from the Tx Port
side (if testing with a sink DUT) or you would select CEC from the Rx Port side (if testing with a source
DUT).
3. Determine what data types you wish to monitor. In this case select CEC.
Note: By default the two activation buttons labeled 780B Tx Port and 780B Rx port are enabled.
4. Take whatever action necessary to initiate a new CEC messages.

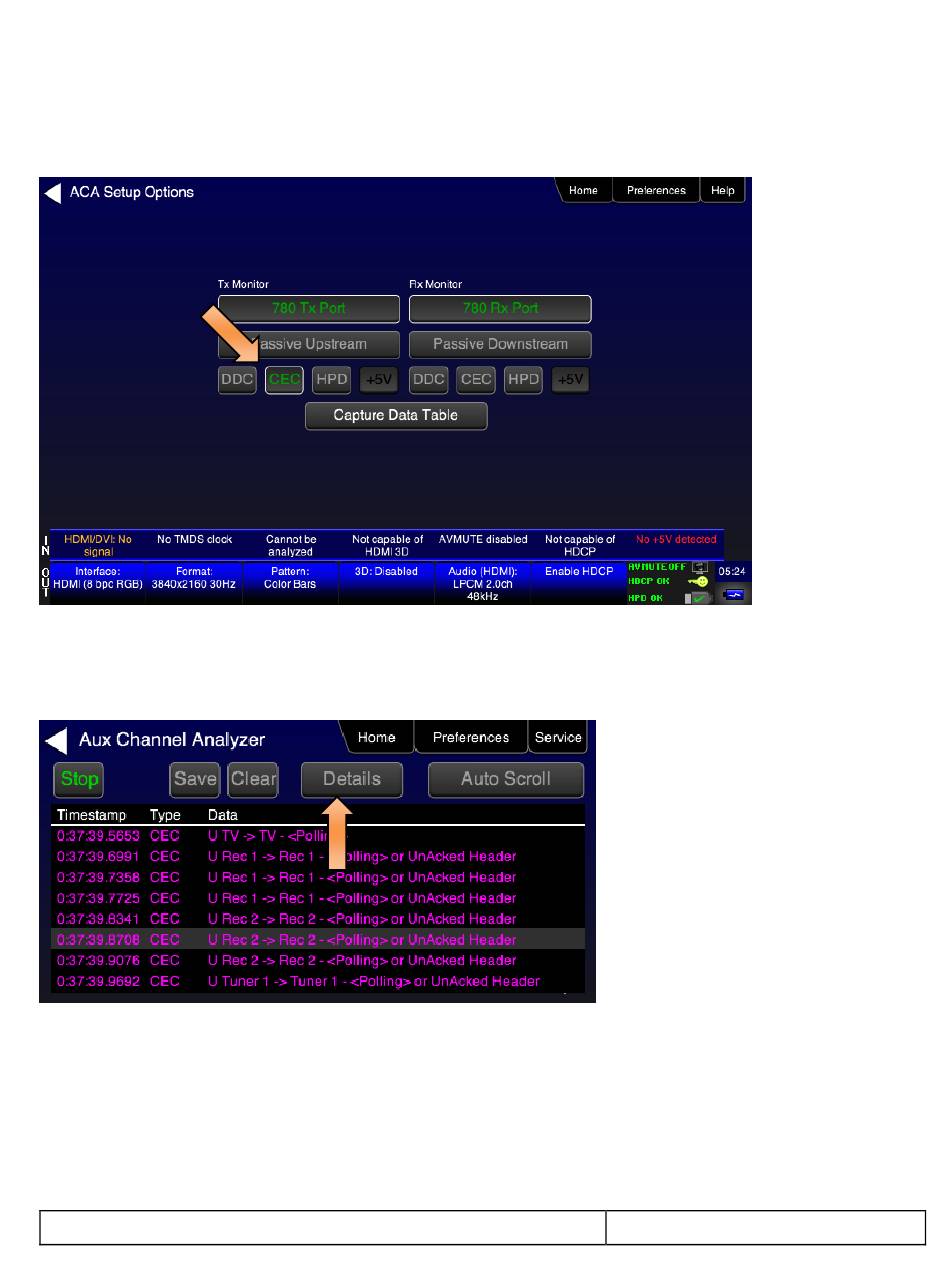

5. Touch select the Capture Data Table activation button to initiate the capturing of the data. A screen similar
to the one shown below will appear.
6. Touch select the Details activation button (top center) to view the details of any specific transaction that
you have selected. The following screen is an example of a polling transaction. The details show the
number of bytes transmitted, the device type and the bit timings.
