780B Video Generator/Analyzer – User Guide
1. Follow the procedures above for rendering a Test Pattern on an HDMI HDTV Rendering Test Patterns on
an HDMI HDTV.

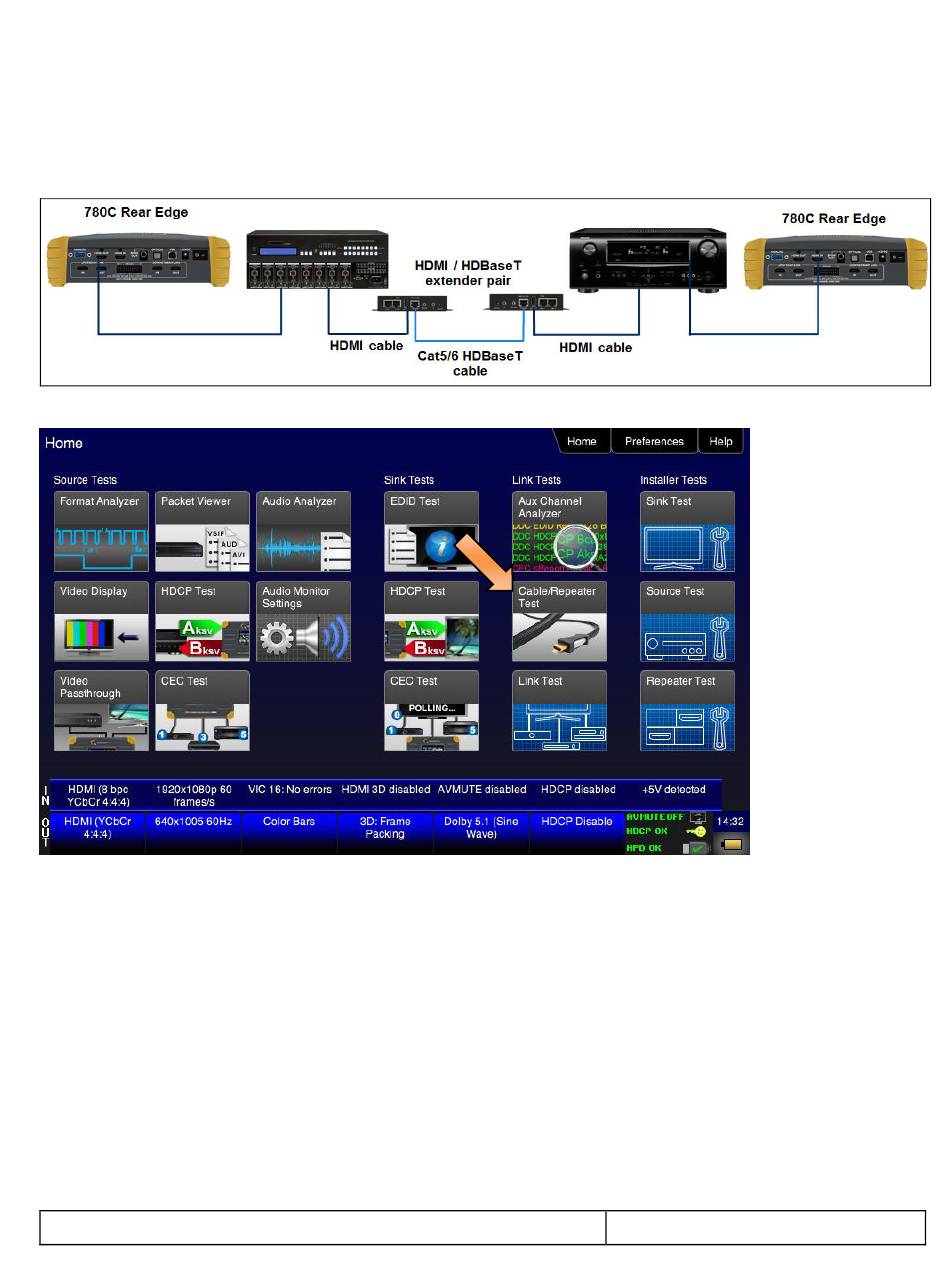

2. Disconnect the source device at the near end of an HDMI distribution network and connect the HDMI cable
to the first 780's HDMI output connector.
3. Disconnect the sink device at the far end of an HDMI distribution network and connect the HDMI cable to
the second 780's HDMI input connector as shown below.
4. Touch select Cable/Repeater Test from the Home menu shown below.
The following screen appears:
December 1, 2014
Page 162
Revision A7
