780B Video Generator/Analyzer – User Guide
4.3

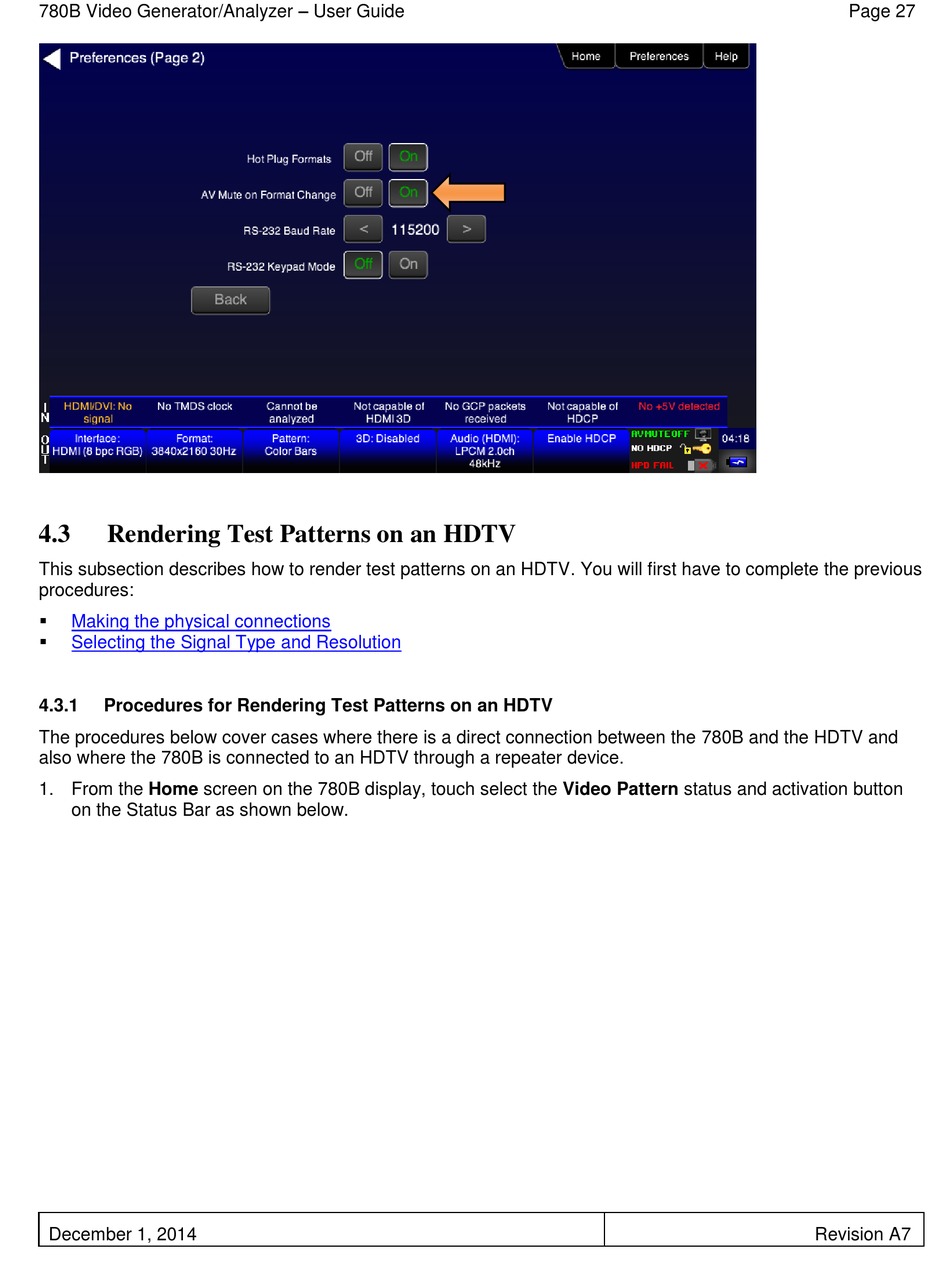

Rendering Test Patterns on an HDTV

This subsection describes how to render test patterns on an HDTV. You will first have to complete the previous
procedures:

Making the physical connections

Selecting the Signal Type and Resolution
4.3.1

Procedures for Rendering Test Patterns on an HDTV

The procedures below cover cases where there is a direct connection between the 780B and the HDTV and
also where the 780B is connected to an HDTV through a repeater device.
1. From the Home screen on the 780B display, touch select the Video Pattern status and activation button
on the Status Bar as shown below.
