780B Video Generator/Analyzer – User Guide

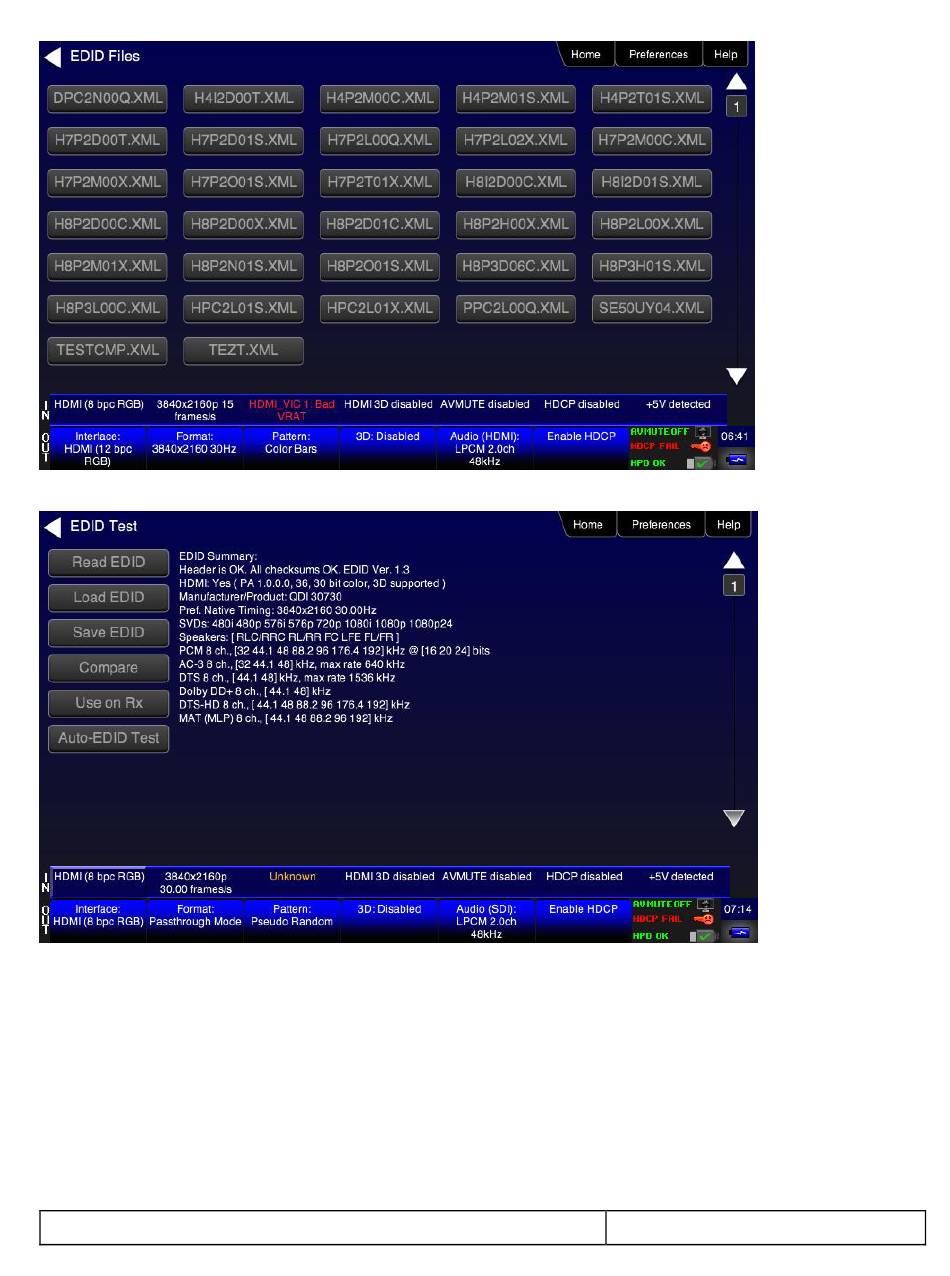

The EDID is loaded and displayed on the screen.
4. If you wish to obtain an EDID from an HDMI sink device that you have on hand, connect the 780B HDMI
OUT port to the HDMI input of that sink device. This configuration is depicted below.
Skip to Step 8 if you do not want to use an EDID from an HDMI sink device you have on hand.
December 1, 2014
Page 109
Revision A7
