780B Video Generator/Analyzer – User Guide
5 Using the 780B Test Instrument to Test HDMI Protocols on Sink
Devices
This section provides procedures for testing HDMI sink devices such as HDTVs, projectors and inputs on
repeater devices.
5.1

Testing HDCP on an HDMI HDTV or HDMI Repeater Device

This section provides procedures for testing HDCP on an HDMI equipped HDTVs. The HDCP authentication
test initiates and HDCP authentication with the sink device (with or without a repeater) and displays the AKSV
and BKSV values, the An value, the Ro values and the Ri values. A pass/fail indication is provided as well.
5.1.1

Configurations for Testing HDCP on an HDMI Sink Device

You can run this test in two configurations.

780B HDMI OUT port connected directly to an HDTV input

780B HDMI OUT port connected to a repeater device which is then connected to a downstream HDTV.

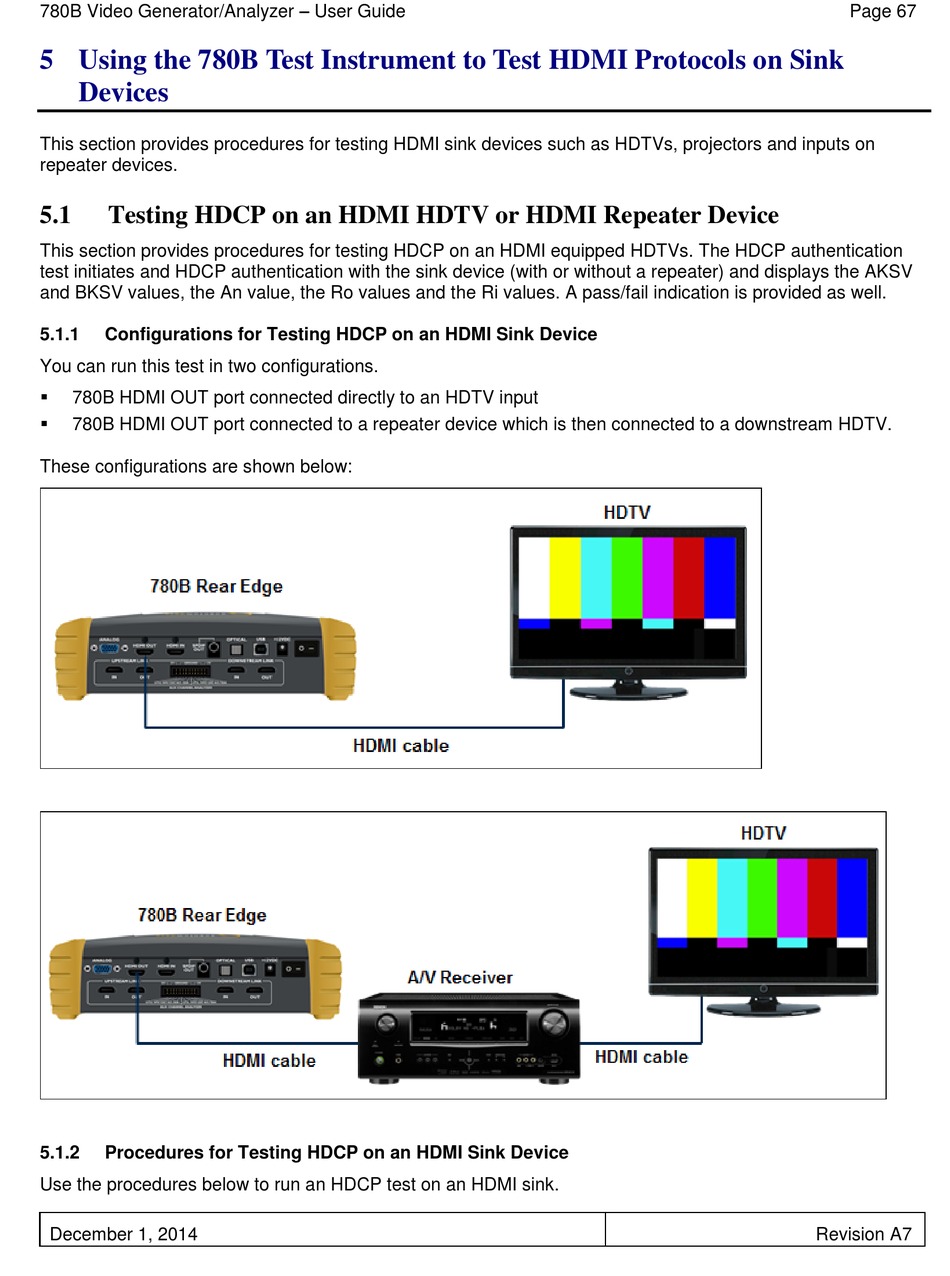

These configurations are shown below:
5.1.2

Procedures for Testing HDCP on an HDMI Sink Device

Use the procedures below to run an HDCP test on an HDMI sink.
December 1, 2014
Page 67
Revision A7
