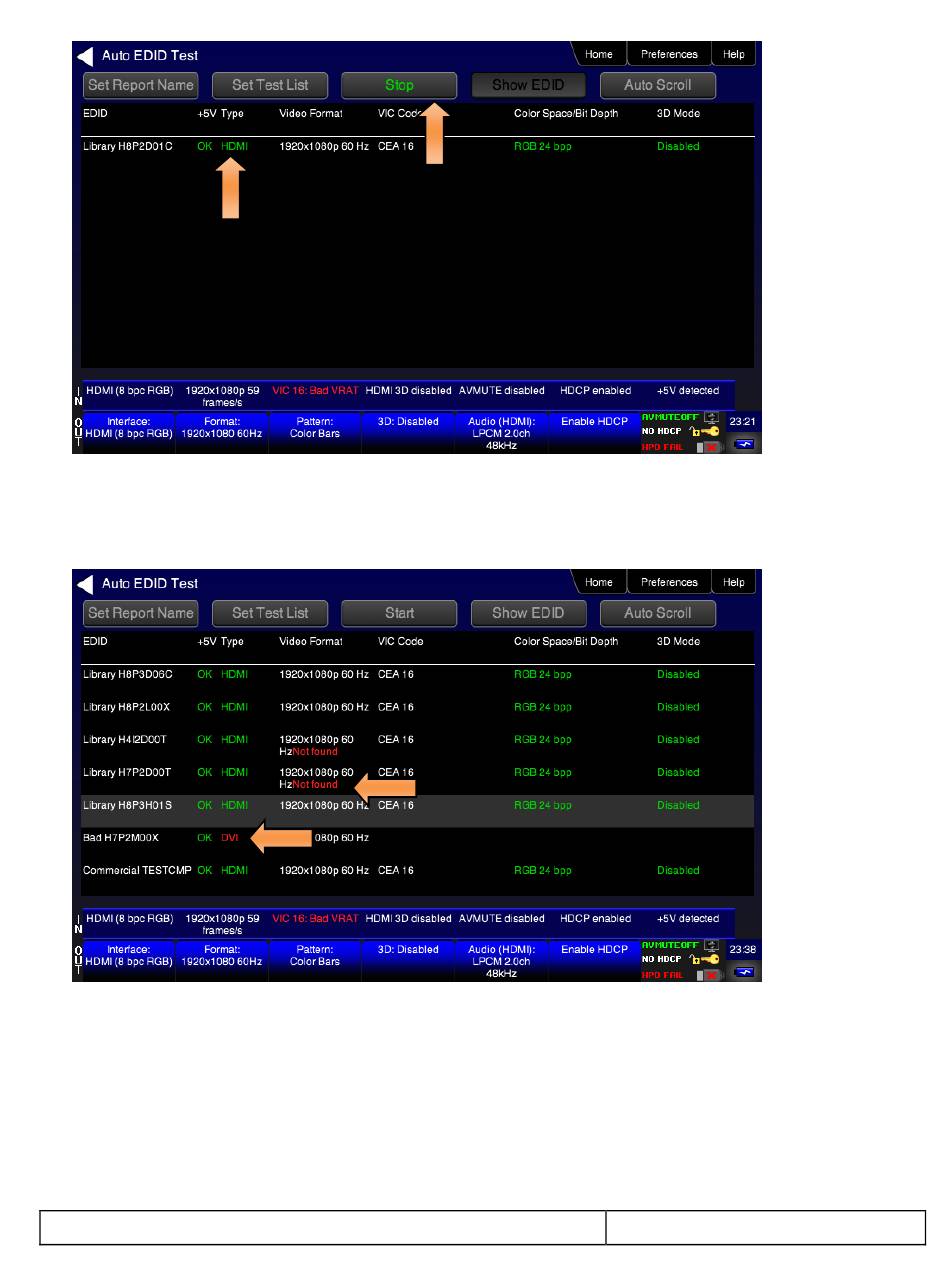

The test will begin executing and you will see the results one by one as each EDID it tested. The following
screen shows another example. Note that you can stop the test anytime by touch selecting the Stop
activation/toggle button (indicated above).
The following screen shows an example of a completed report:
Notes on the example above:
Red text in the example above, indicates anomalous conditions in the handling of an EDID.
Examples show:
1. Incoming video timing resolution is not present in EDID (2 cases).
2. EDID with bad checksum where incoming video is interpreted as DVI (since there are no infoframes).
10.1.4 Running the Auto-EDID Test from the command line
You can also run the auto-EDID test from the command line. Use the commands below.
