Selecting A Signal Type And Resolution; Procedures For Selecting A Signal Type - Quantum Data 780B User Manual

780B Video Generator/Analyzer – User Guide
4.2

Selecting a Signal Type and Resolution

After making the physical connections between the 780B and the display device under test you will need to
select the signal type, Resolution and Frame Rate for the sink device under test.
4.2.1

Procedures for Selecting a Signal Type

The procedures below describe how to select the active signal type.
1. Power up the 780B using the rocker switch on the back panel. Review the guidelines for battery usage at:
Power Considerations.

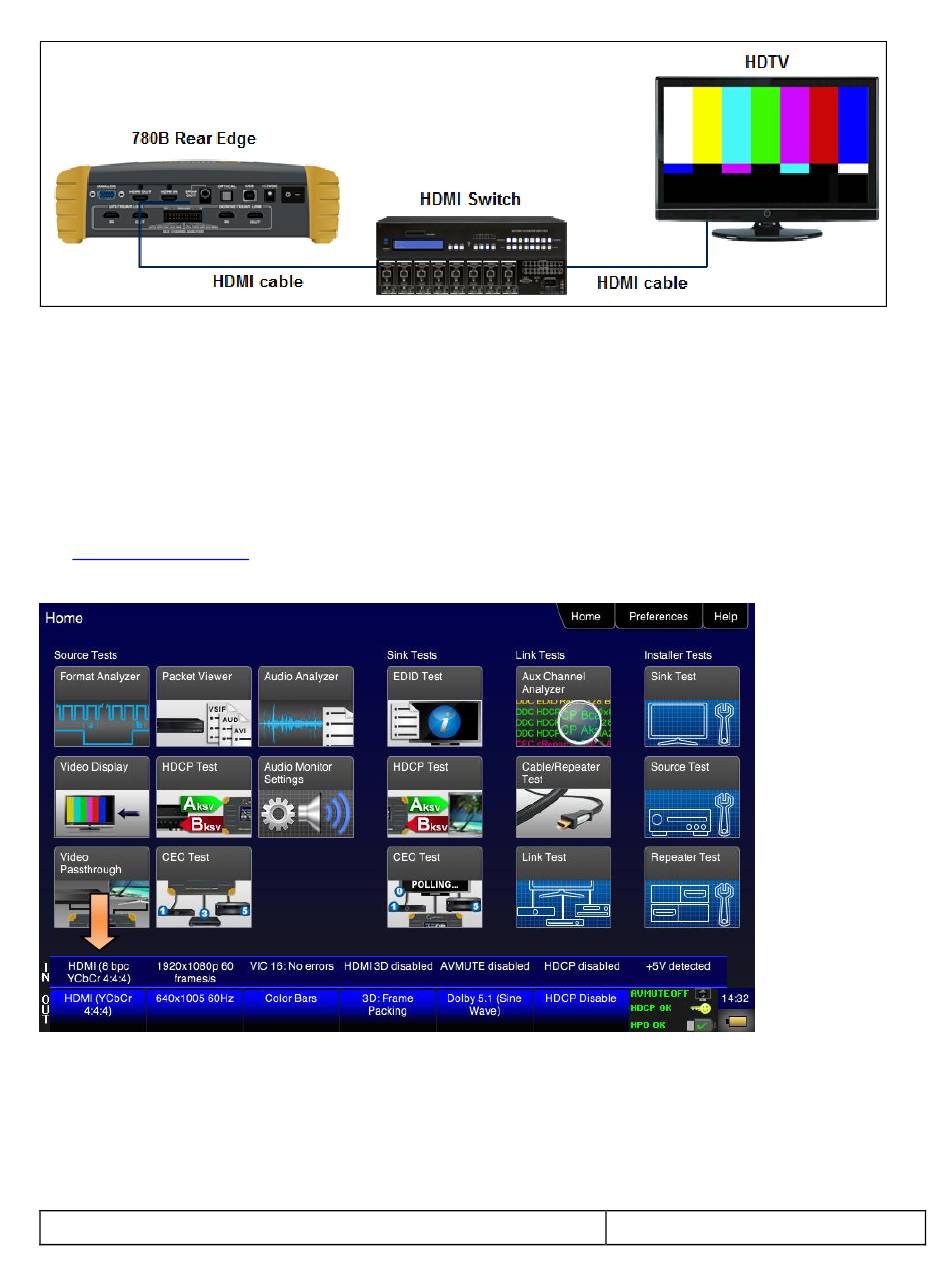

2. Touch select the Signal Type activation button on the OUT Status Bar (see screen example below).
The Signal Type menu appears as shown below.
