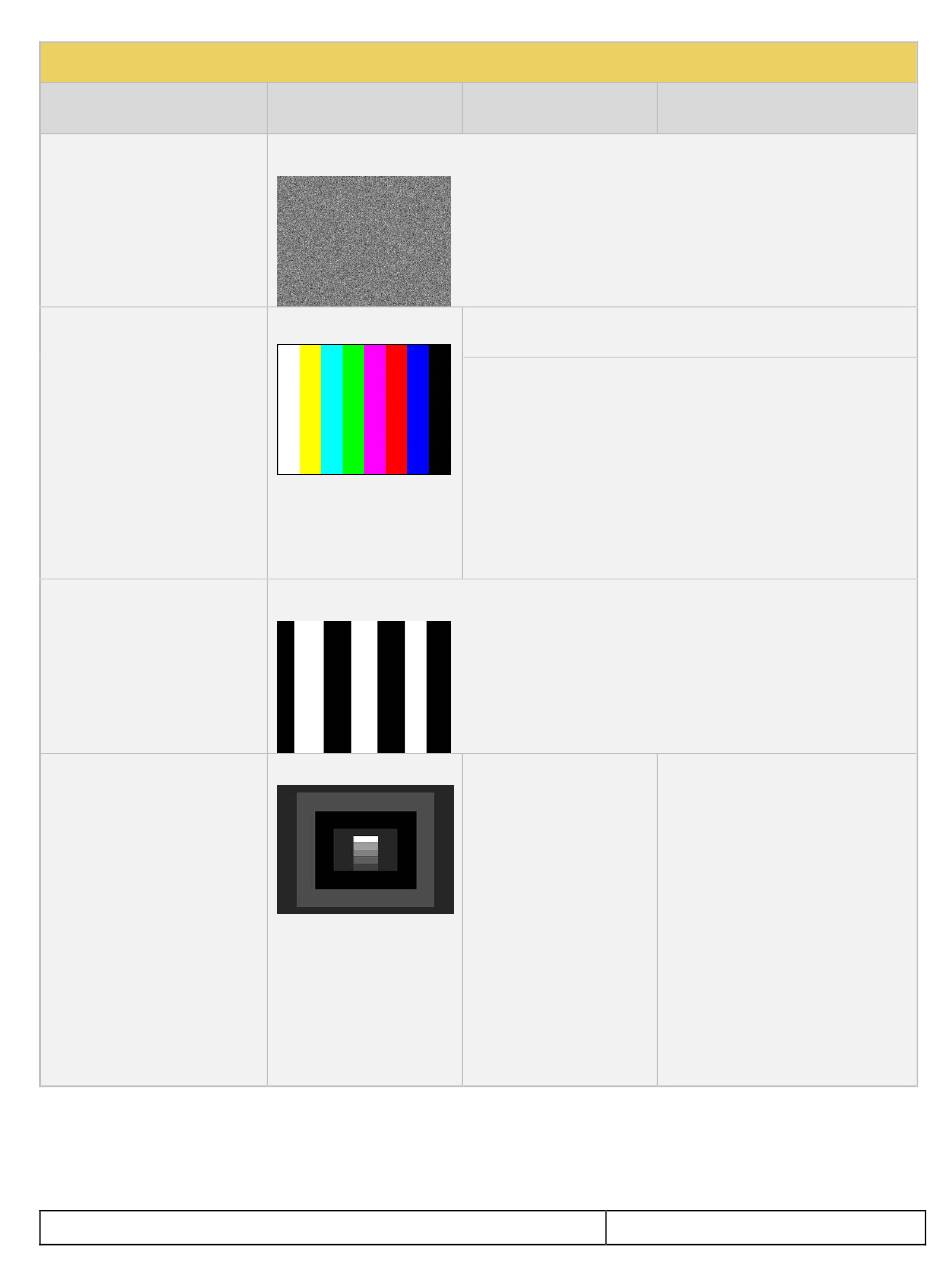

Table 4-3: Test Patterns
Pattern Name
Pseudo Random Pattern
Application: To test for pixel
errors on an HDMI cable.
LG Color Pattern
Application: To test a display's
ability to product fully saturated
primary and secondary color.
White is 100 IRE
Yellow is 100 IRE
Cyan is 100 IRE
Gray is 35 IRE
Red is 100 IRE
Blue is 100 IRE
Black is 0 IRE
UL 3 Bar Pattern
Black Pluge Pattern
Application: To set the picture
black level and check the DC
restoration performance of a
display. Note: Outer boxes
blink once per second.
December 1, 2014
Variant
No Variants
No Variants
No Variants
No Variants
Options
Horizontal
Vertical
Pixel values in RGB, 8bit
with limited range (TV)
mode.
Range of Values
Outer background:
R=16 G=16 B=16
Outer blinking box:
R=20/16 G=20/16 B=20/16
Inner blinking box:
R=9/16 G=9/16 B=9/16
Top most stair value:
R=235 G=235 B=235
Second stair value:
R=180 G=180 B=180
Third stair value:
R=140 G=140 B=140
Fourth stair value:
R=112 G=112 B=112
Bottom stair value:
R=90 G=90 B=90
