Procedures for Testing Video on an HDMI Source Device

Use the following procedures to test the video from an HDMI source device. You can view the incoming video
and check the video and timing parameters of the incoming video.
1. Make the physical connection between the 780B HDMI IN port and the source device under test using the
configuration instructions above.

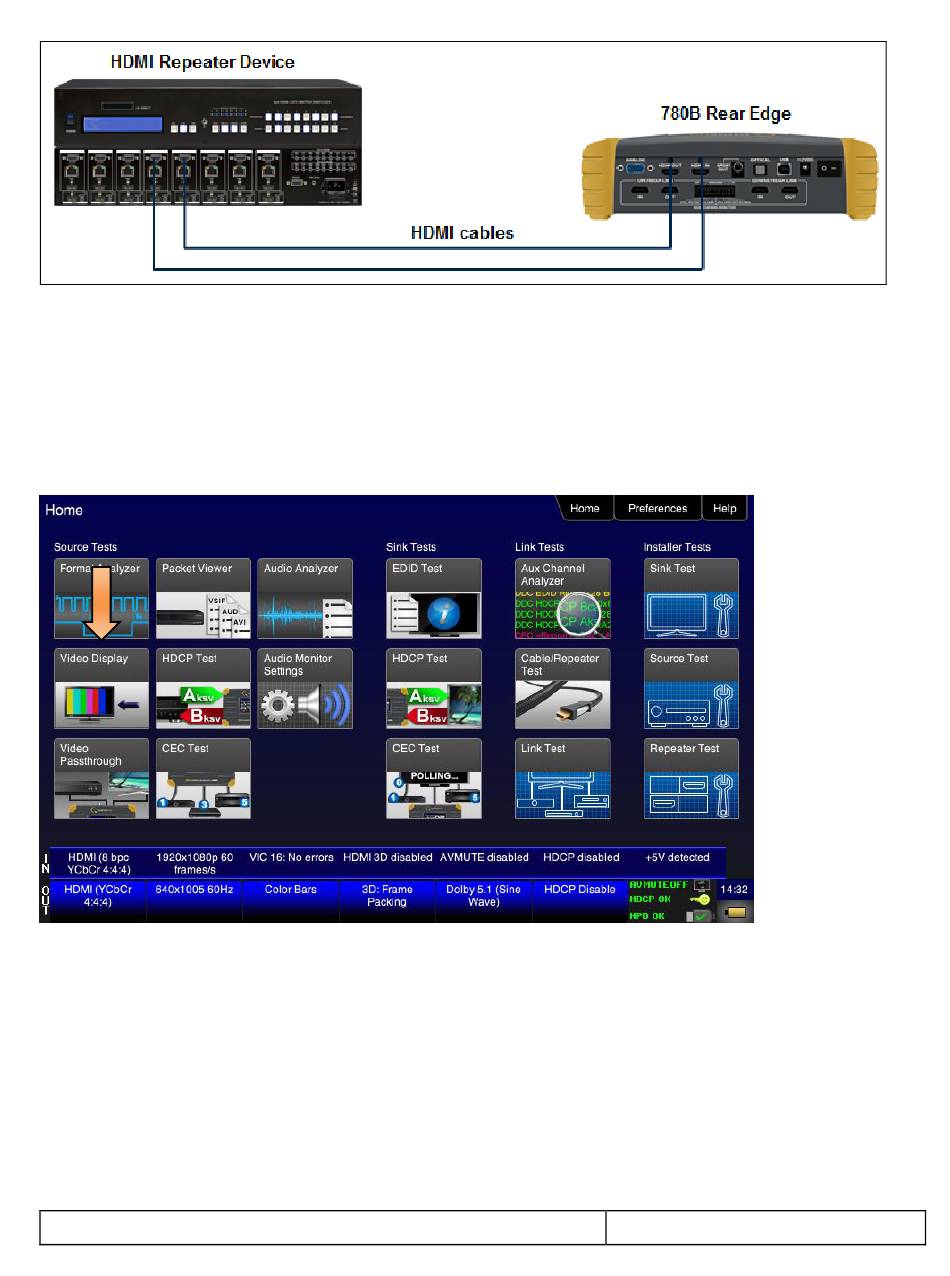

2. Touch select Video Display from the Home menu shown below.
3. Touch select the Start Fullscreen activation button on the Video Display menu to view only the incoming
video (no metadata) from the source device under test.
