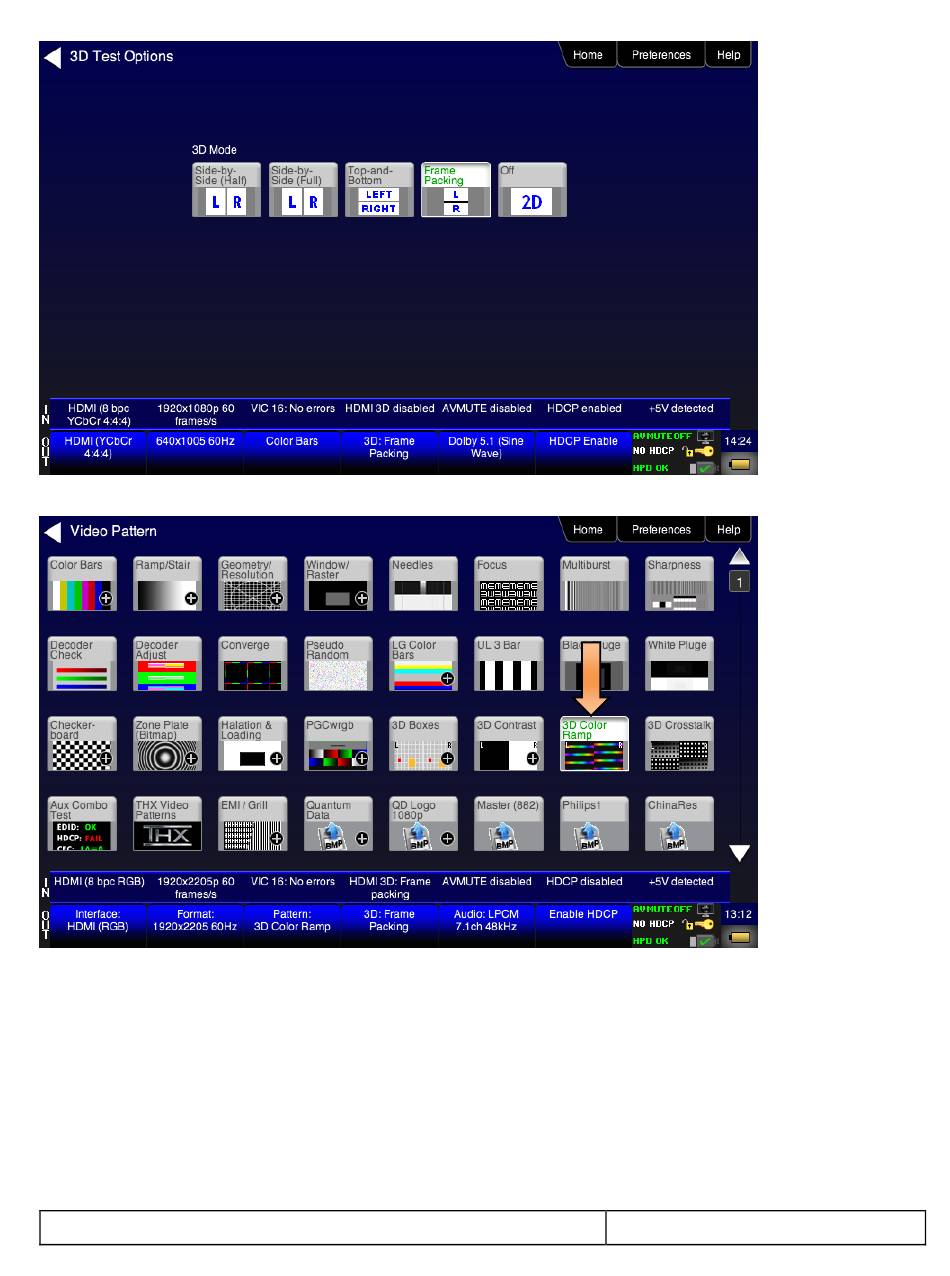

4. Select the 3D bitmap or image image from the Test Pattern list.
Note: If you are using one of the 3D bitmaps (as opposed to a standard 3D test pattern) you will have to
make sure that the 3D bitmap you use matches your selection of 3D formats and timing (resolution). In the
example above, a 3D Frame Packing bitmap is selected for 1280 x 720. Therefore you have to make sure
that you select that specific timing (i.e. 1280 x 720) and that specific 3D format structure (Frame Packing).
4.6

How to Scroll a Bitmap Pattern

This subsection describes how to scroll bitmaps on your 780B
4.6.1

Guidelines for Scrolling Bitmaps
