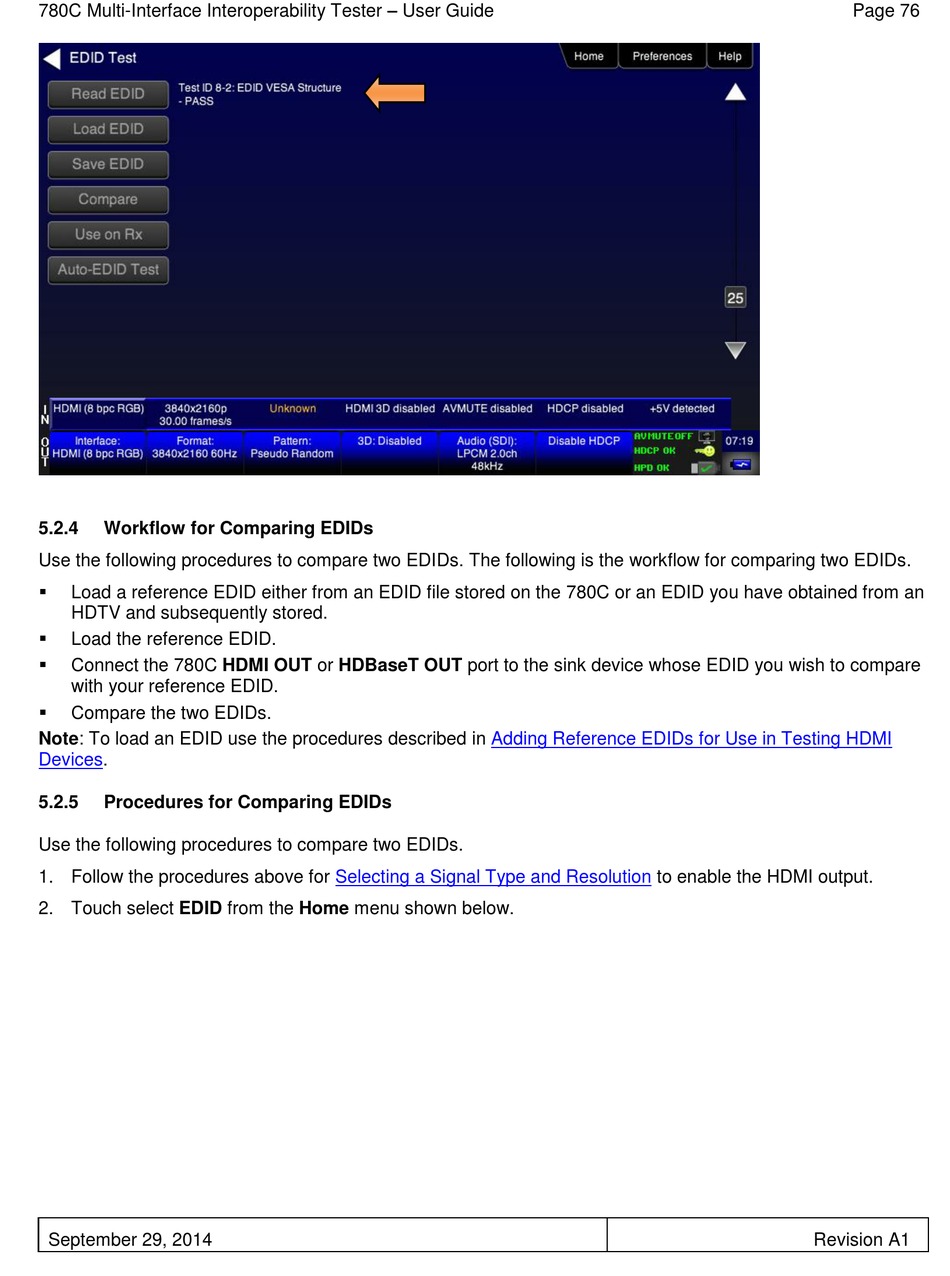

780C Multi-Interface Interoperability Tester – User Guide
5.2.4

Workflow for Comparing EDIDs

Use the following procedures to compare two EDIDs. The following is the workflow for comparing two EDIDs.

Load a reference EDID either from an EDID file stored on the 780C or an EDID you have obtained from an
HDTV and subsequently stored.

Load the reference EDID.

Connect the 780C HDMI OUT or HDBaseT OUT port to the sink device whose EDID you wish to compare
with your reference EDID.

Compare the two EDIDs.
Note: To load an EDID use the procedures described in
Devices.
5.2.5

Procedures for Comparing EDIDs

Use the following procedures to compare two EDIDs.
1. Follow the procedures above for
2. Touch select EDID from the Home menu shown below.
September 29, 2014
Adding Reference EDIDs for Use in Testing HDMI
Selecting a Signal Type and Resolution to enable the HDMI output.
Revision A1
Page 76
