5.2.2 Configurations for Verifying and Viewing the EDID on an HDBaseT Sink Device or Input of an
HDBaseT Distribution Device

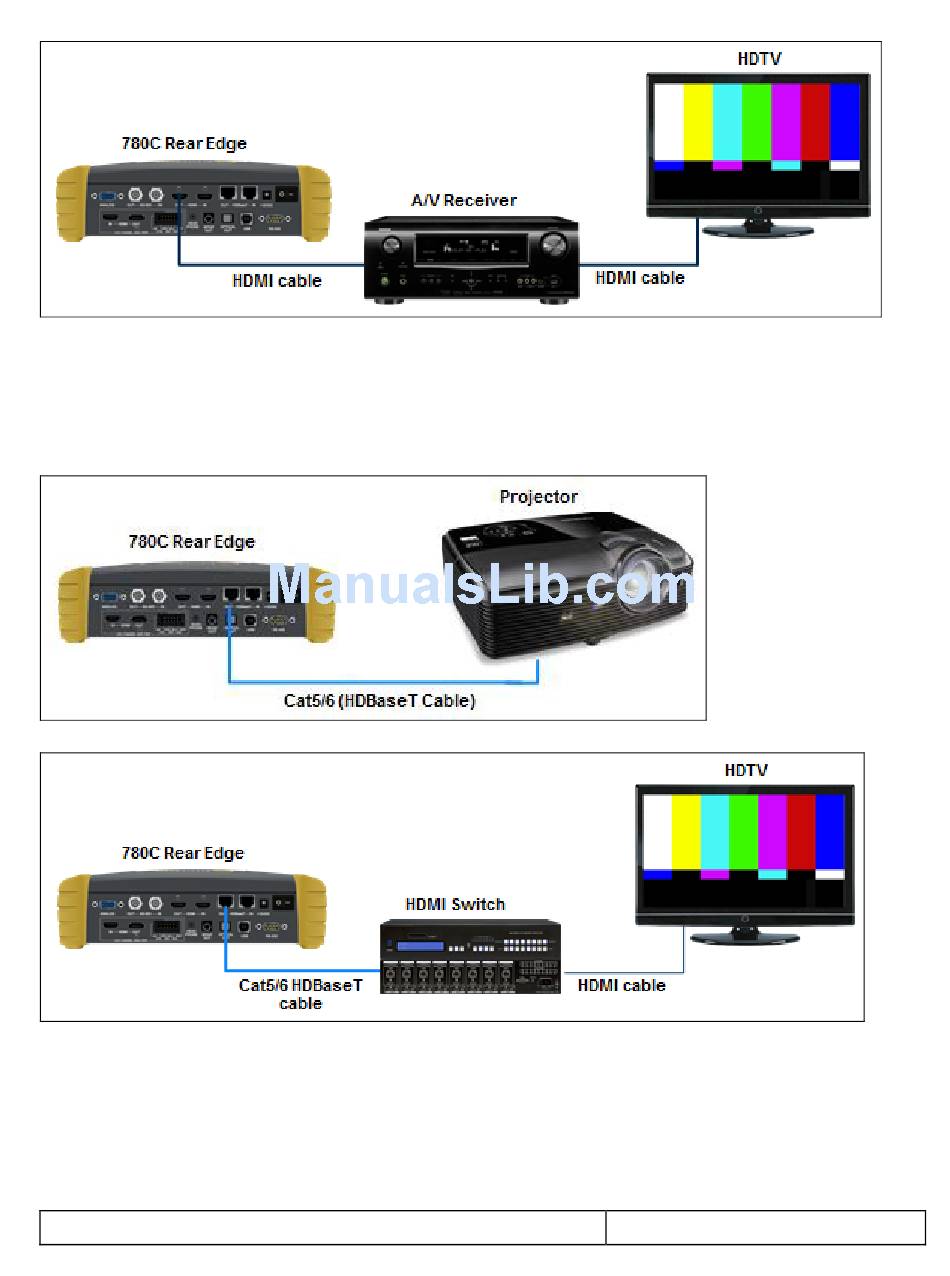

The following illustrations depict the typical test setups. You can either connect directly to an HDBaseT
projector or input of an HDBaseT distribution device.
5.2.3

Procedures for Testing and Viewing the EDID on an HDMI/HDBaseT Sink Device

Use the procedures below to run an EDID test on an HDMI sink.
1. Make the physical connections between the 780C HDMI OUT connector and the display device under test.
2. Enable the HDMI or HDBaseT interface as shown below.
September 29, 2014
Page 72
Revision A1
