780C Multi-Interface Interoperability Tester – User Guide
Page 88
6.1.3
Procedures for Viewing Video on an HDMI/HDBaseT Source Device
Use the following procedures to test the video from an HDMI/HDBaseT source device. You can view the
incoming video and check the video and timing parameters of the incoming video.

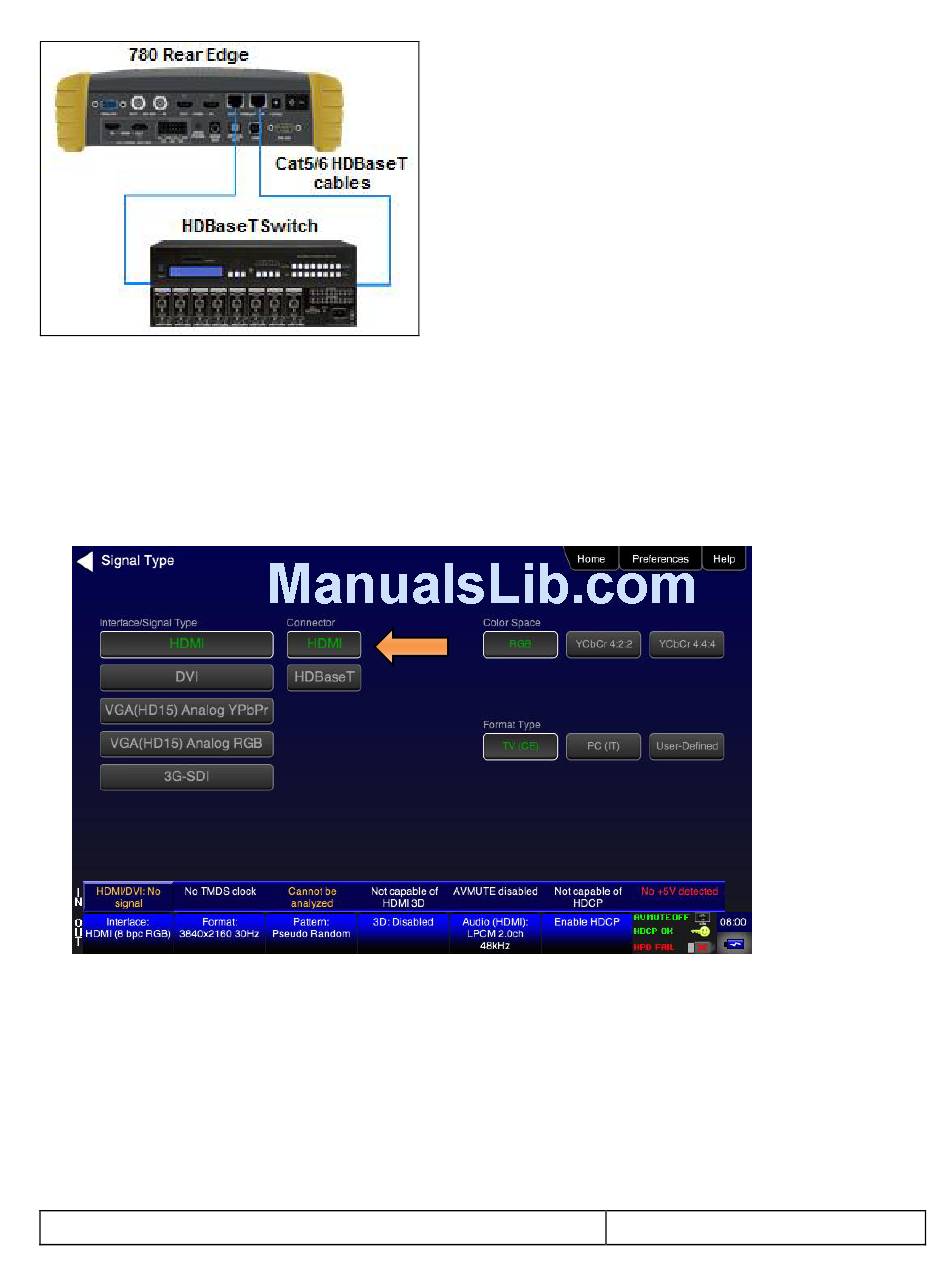

1. Make the physical connection between the 780C HDMI/HDBaseT IN port and the source device under test
using the configuration instructions above.
2. Enable the HDMI or HDBaseT Input port.
3. Touch select Video Display from the Home menu shown below.
September 29, 2014
Revision A1
