780C Multi-Interface Interoperability Tester – User Guide
Page 140
7.2.3

Procedures for Testing Downstream (Sink Test) with the Installer Utility

Use the following procedures to test the video from an HDMI sink device.

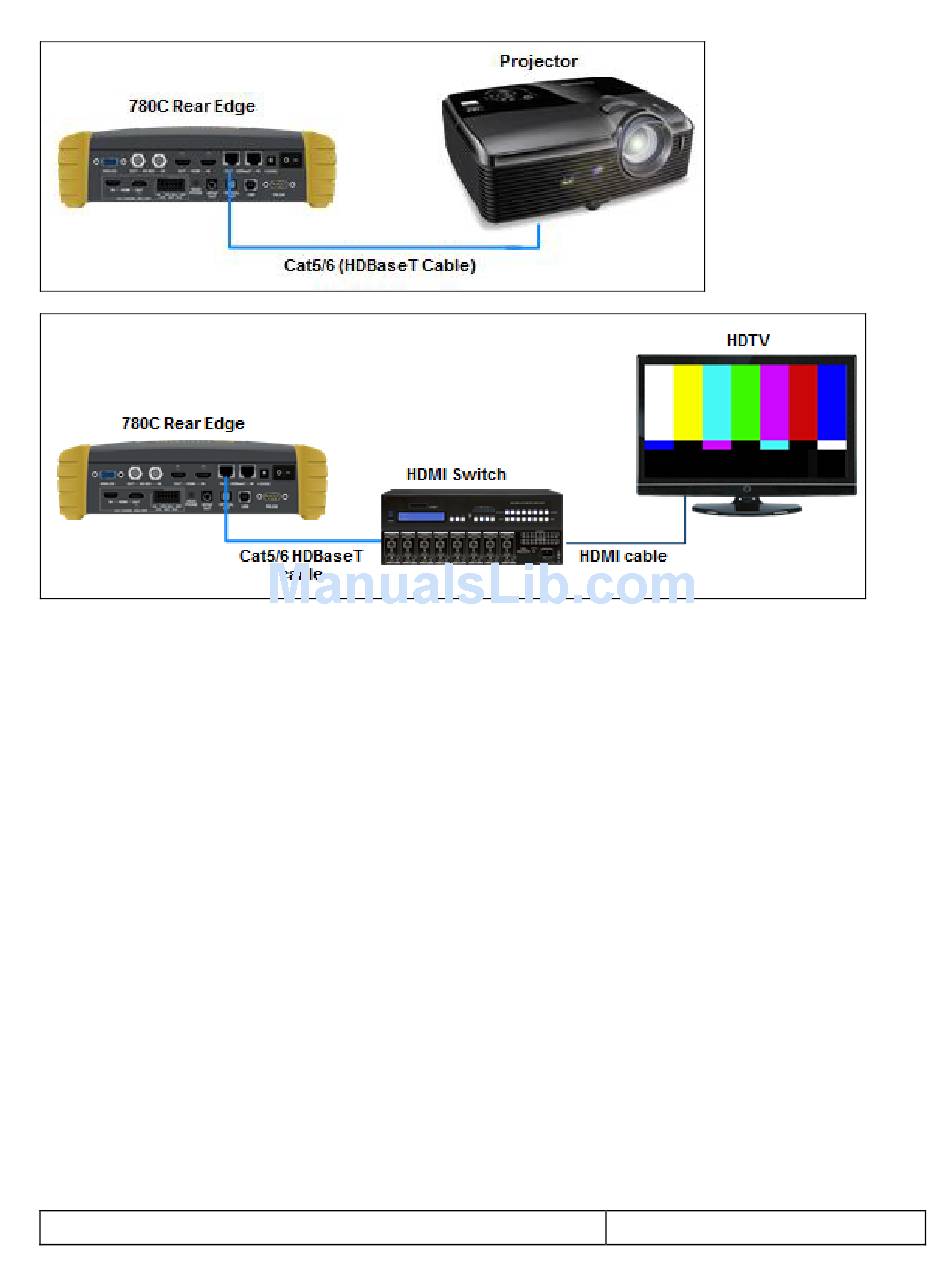

1. Make the physical connection between the 780C HDMI/HDBaseT OUT port and the sink device under test
using the configuration instructions above or by following the instructions on the screen.
2. Enable the HDMI or HDBaseT as the active digital interface input.
September 29, 2014 Revision A1
