USB Connector

The USB connector is a sealed receptacle, 5 pin, ODU p/n G80F2C-P05QF00-0000 (Figure A-3).
Table A-7 gives the USB connector specifications.

RS422 and CAN Connector

The RS422/CAN connector is a sealed receptacle, M12, 8 pin Male receptacle, FM, M16x1.5,
flying lead connector Binder-USA p/n 09-3481-700-08 (Figure A-4)
www.javad.com
2
3
4
5

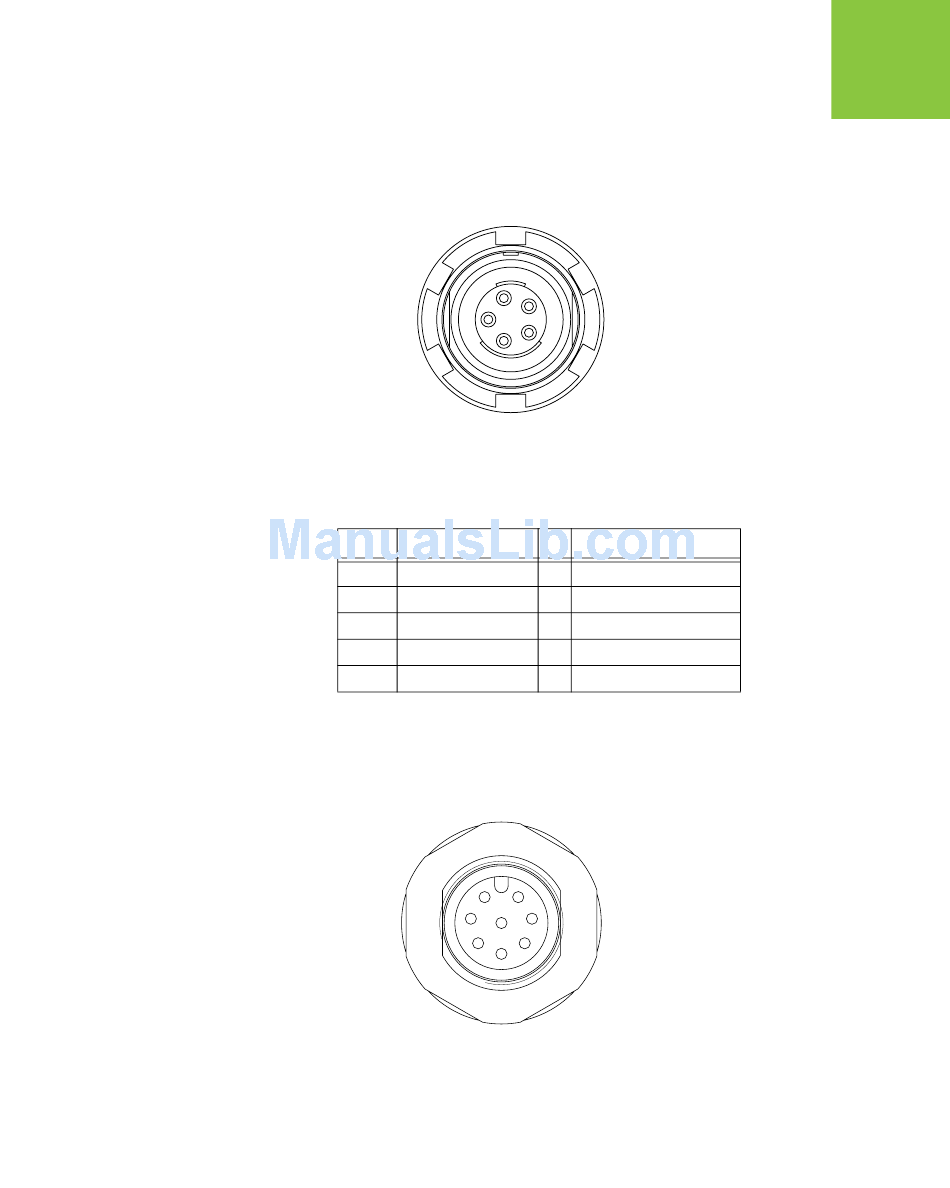

Figure A-3. USB Connector
Table A-7. USB Connector Specifications
Number Signal Name
1
2 USB_PWR
3 GND
4 USB D+
5 USB D-
2
3
8
4
6
5
Figure A-4. RS422 and CAN Connector
1
Dir Details
Not used
P Bus power
- Ground
I/O Data plus
I/O Data minus
1
7
Specifications
