A.2. Connector Specifications

Power Connector

The power connector (Figure A-1) is a sealed receptacle, 5 pin, ODU p/n G80F1C-T05QF00-
0000.
Table A-5 gives power connector specifications.
www.javad.com
RF MMCX
FCC, IC, CCC
FTA, PTCRB
R&TTE
GCF
EMC
QS9000 manufacturing
RoHS/WEEE
3
4

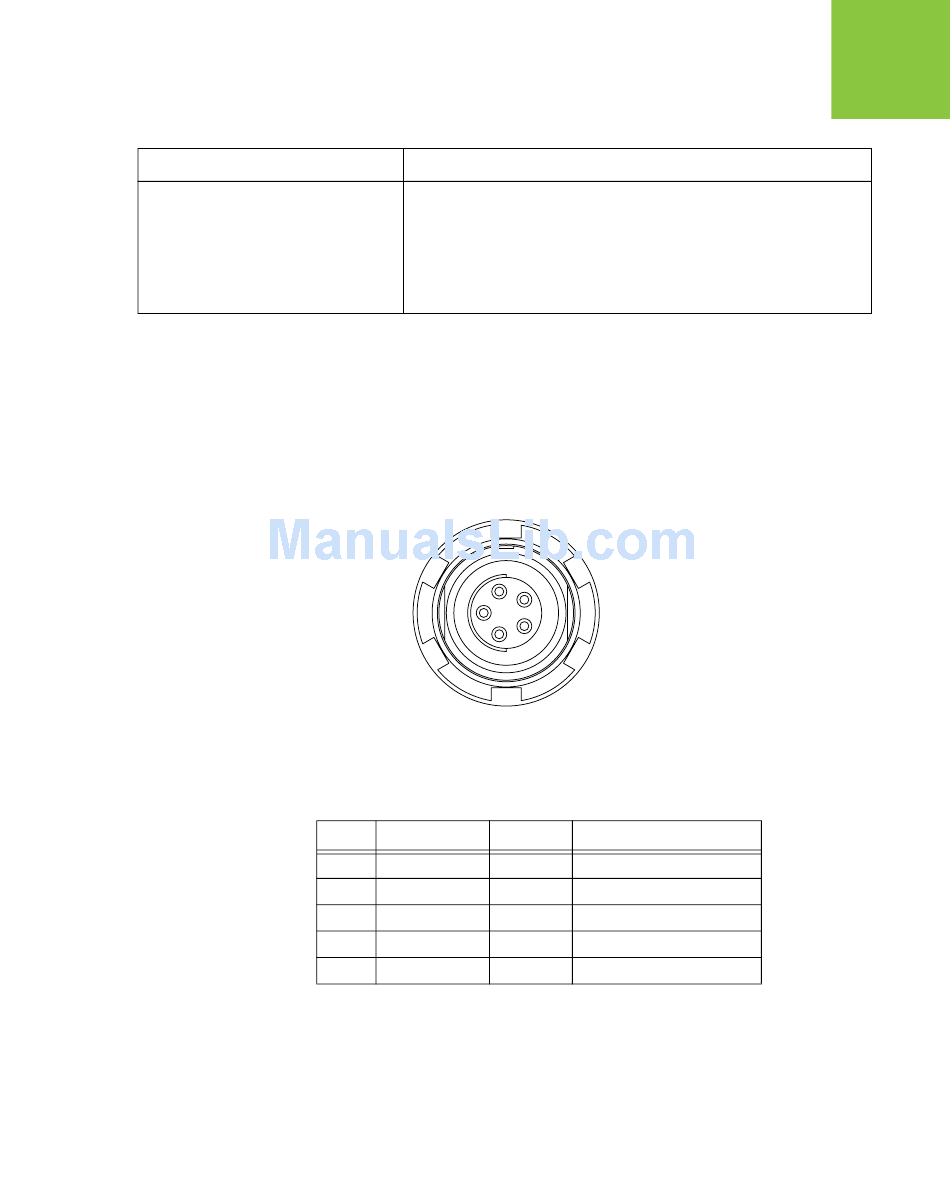

Figure A-1. Power Connector
Table A-5. Power Connector Specifications
Number Signal Name
1 Power_INP P
2 Power_INP P
3 Power_GND P
4 Power_GND P
5
2
1
5
Dir Details
10 to 30 volts DC input
10 to 30 volts DC input
Ground, power return
Ground, power return
Not used
Specifications

Connector Specifications
