Mounting

14
6 Mounting
6.1

Mounting requirements

6.1.1

Mounting position

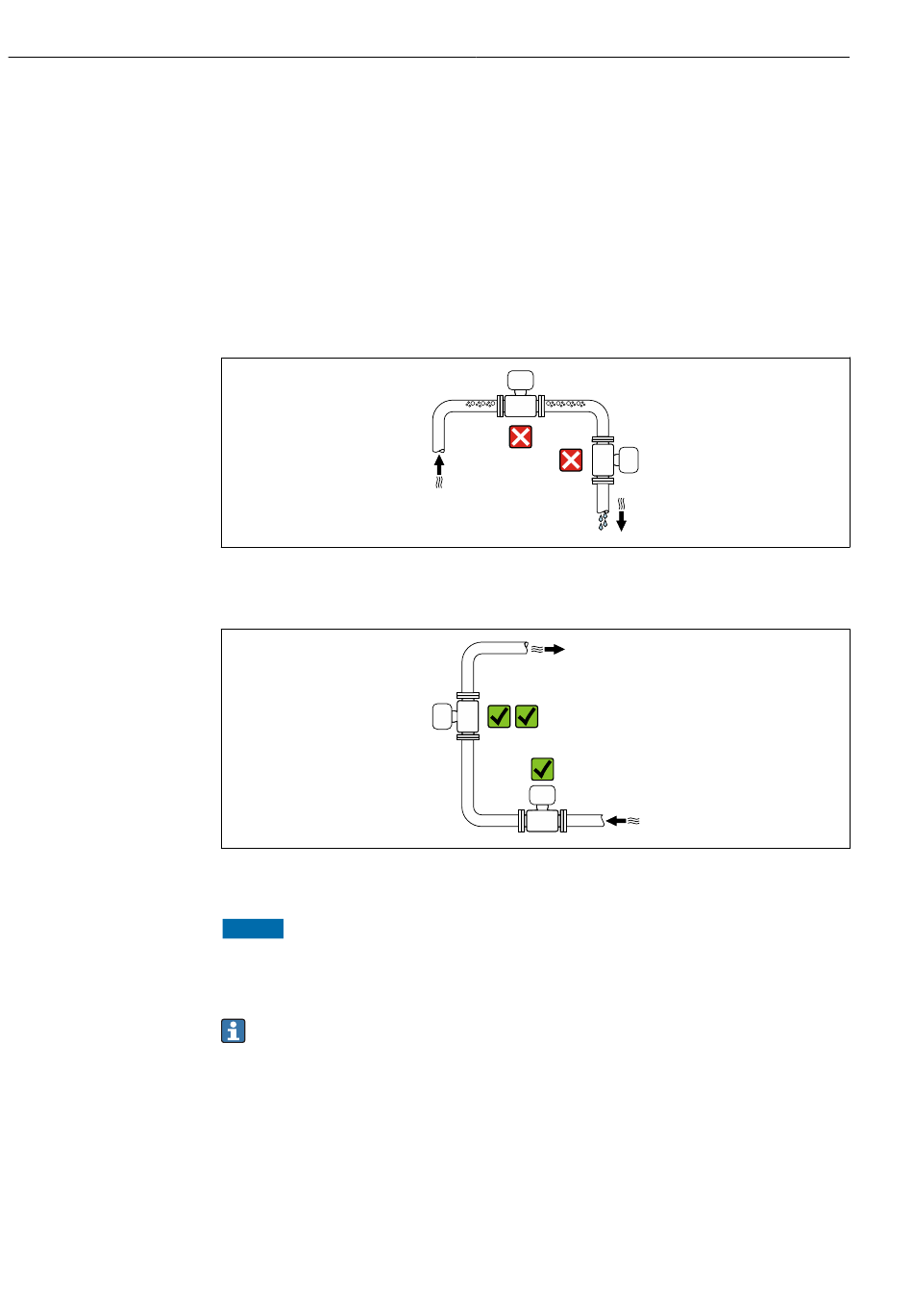

Mounting location
• Do not install the device at the highest point of the pipe.
• Do not install the device upstream from a free pipe outlet in a down pipe.
The device should ideally be installed in an ascending pipe.
Installation upstream from a down pipe
NOTICE
Negative pressure in the measuring pipe can damage the liner!
‣
If installing upstream of down pipes whose length h ≥ 5 m (16.4 ft): install a siphon
with a vent valve downstream of the device.
This arrangement prevents the flow of liquid stopping in the pipe and air
entrainment.
Dosimag IO-Link
A0042131
A0042317
