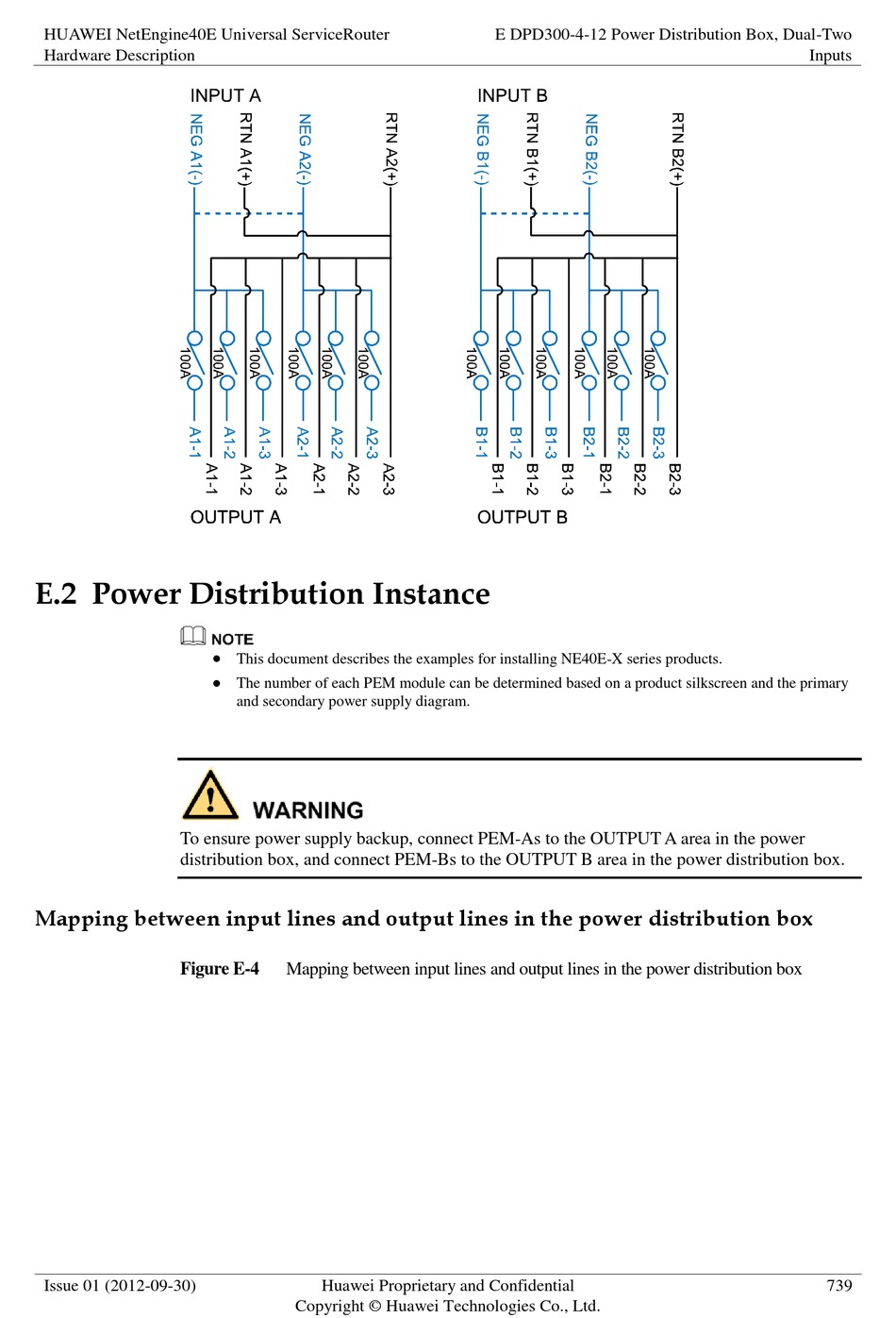

E.2 Power Distribution Instance
To ensure power supply backup, connect PEM-As to the OUTPUT A area in the power
distribution box, and connect PEM-Bs to the OUTPUT B area in the power distribution box.
Mapping between input lines and output lines in the power distribution box
Figure E-4
Issue 01 (2012-09-30)

This document describes the examples for installing NE40E-X series products.
 The number of each PEM module can be determined based on a product silkscreen and the primary
and secondary power supply diagram.
Mapping between input lines and output lines in the power distribution box
