HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description

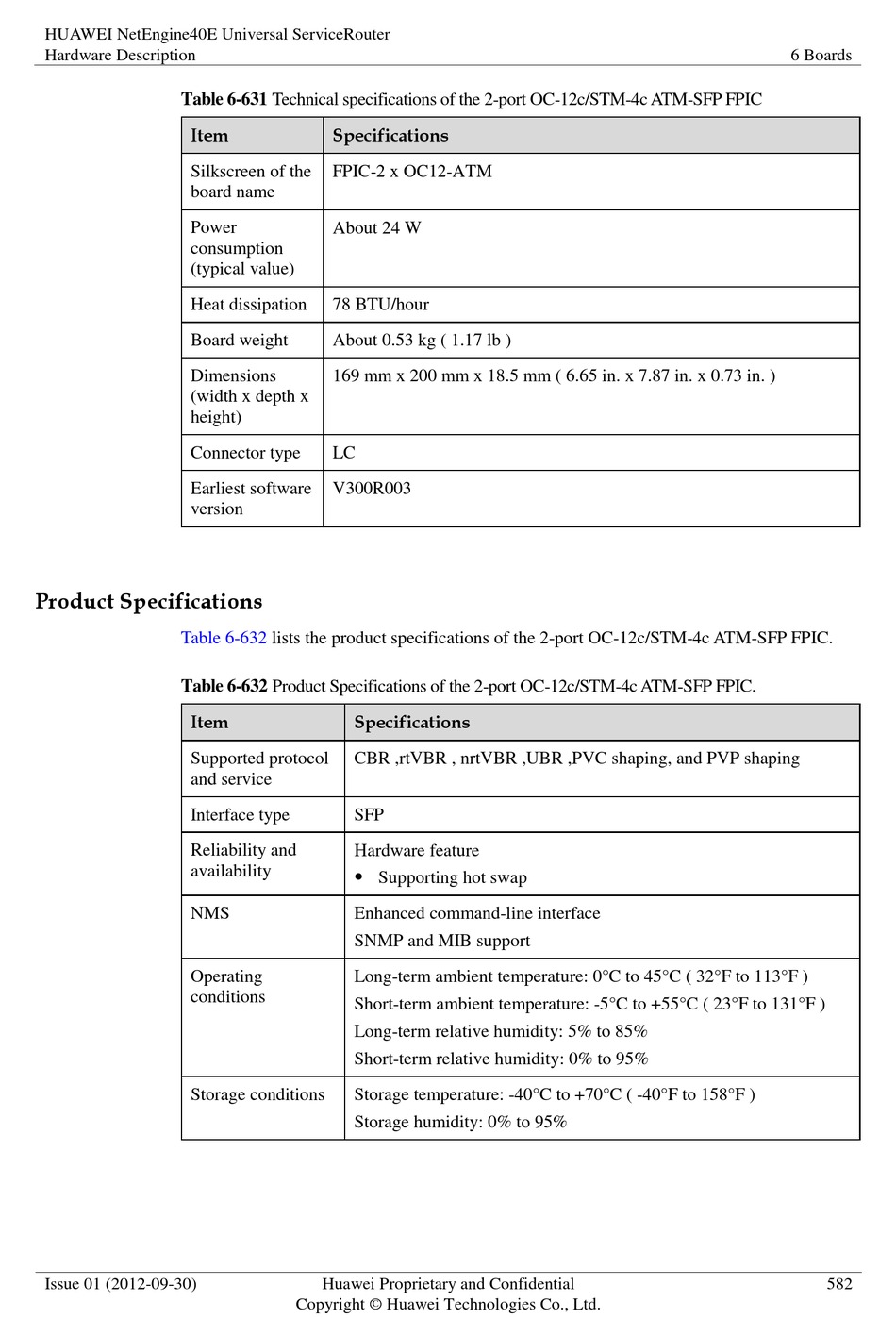

Table 6-631 Technical specifications of the 2-port OC-12c/STM-4c ATM-SFP FPIC
Item
Silkscreen of the
board name
Power
consumption
(typical value)
Heat dissipation
Board weight
Dimensions
(width x depth x
height)
Connector type
Earliest software
version
Product Specifications
Table 6-632
Table 6-632 Product Specifications of the 2-port OC-12c/STM-4c ATM-SFP FPIC.
Item
Supported protocol
and service
Interface type
Reliability and
availability
NMS
Operating
conditions
Storage conditions
Issue 01 (2012-09-30)
Specifications
FPIC-2 x OC12-ATM
About 24 W
78 BTU/hour
About 0.53 kg ( 1.17 lb )
169 mm x 200 mm x 18.5 mm ( 6.65 in. x 7.87 in. x 0.73 in. )
LC
V300R003
lists the product specifications of the 2-port OC-12c/STM-4c ATM-SFP FPIC.
Specifications
CBR ,rtVBR , nrtVBR ,UBR ,PVC shaping, and PVP shaping
SFP
Hardware feature

Supporting hot swap
Enhanced command-line interface
SNMP and MIB support
Long-term ambient temperature: 0° C to 45° C ( 32° F to 113° F )
Short-term ambient temperature: -5° C to +55° C ( 23° F to 131° F )
Long-term relative humidity: 5% to 85%
Short-term relative humidity: 0% to 95%
Storage temperature: -40° C to +70° C ( -40° F to 158° F )
Storage humidity: 0% to 95%
