High-resolution timer (HRTIM)
The ADC post-scaler programming register are preloaded and can be updated on-the-fly
without stopping the timers.

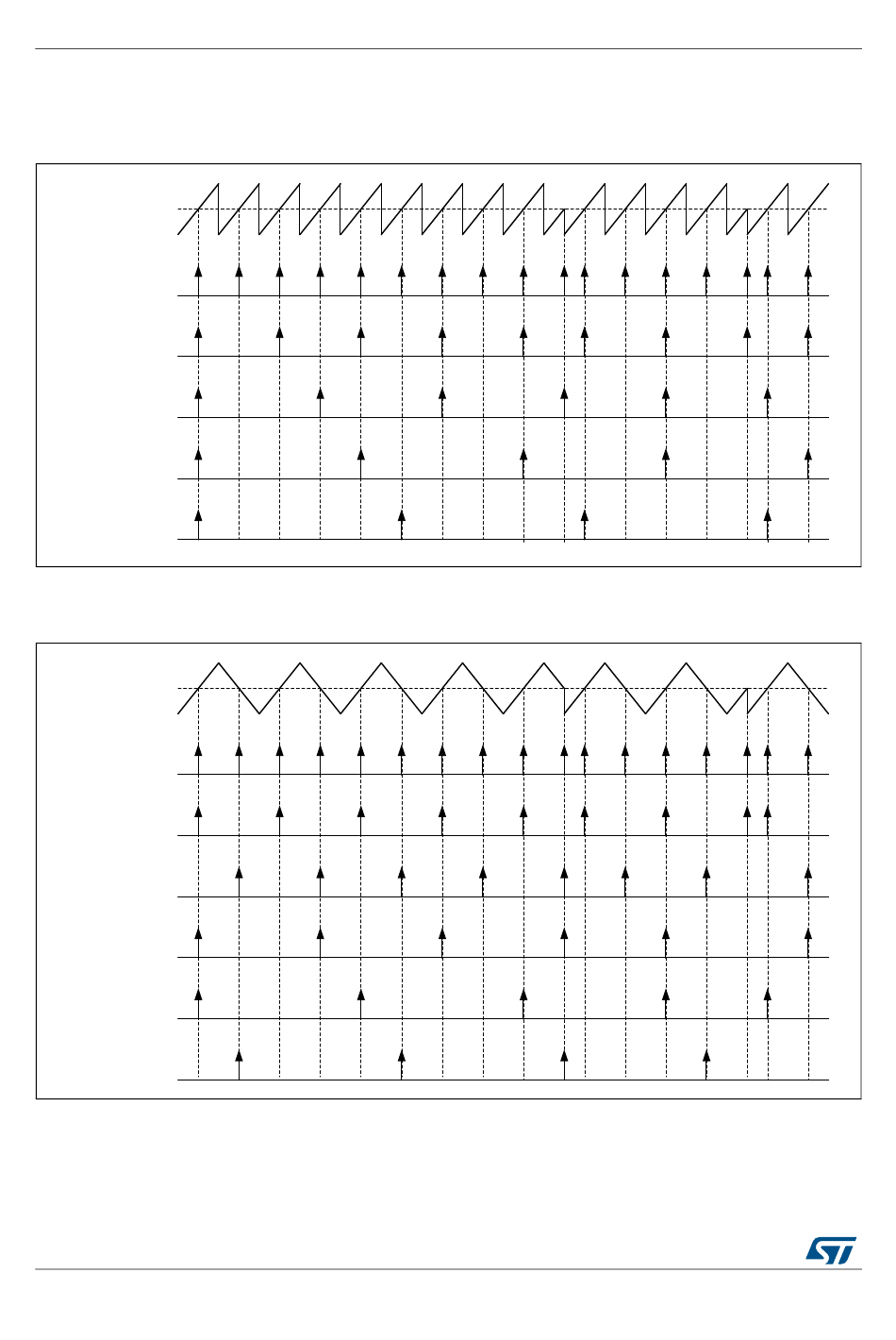

Figure 253. ADC trigger post-scaling in up-counting mode
Counter
ADCxPSC[4:0]=0
ADCxPSC[4:0]=1
ADCxPSC[4:0]=2
ADCxPSC[4:0]=3
ADCxPSC[4:0]=4
Figure 254. ADC trigger post-scaling in up/down counting mode
Counter
ADCxPSC[4:0]=0
ADROM[1:0]=00
ADCxPSC[4:0]=1
ADROM[1:0]=01
ADCxPSC[4:0]=1
ADROM[1:0]=10
ADCxPSC[4:0]=3
ADROM[1:0]=00
ADCxPSC[4:0]=4
ADROM[1:0]=01
ADCxPSC[4:0]=4
ADROM[1:0]=10
940/2126
RM0440 Rev 4
RM0440
MSv47427V1
MSv47428V1
