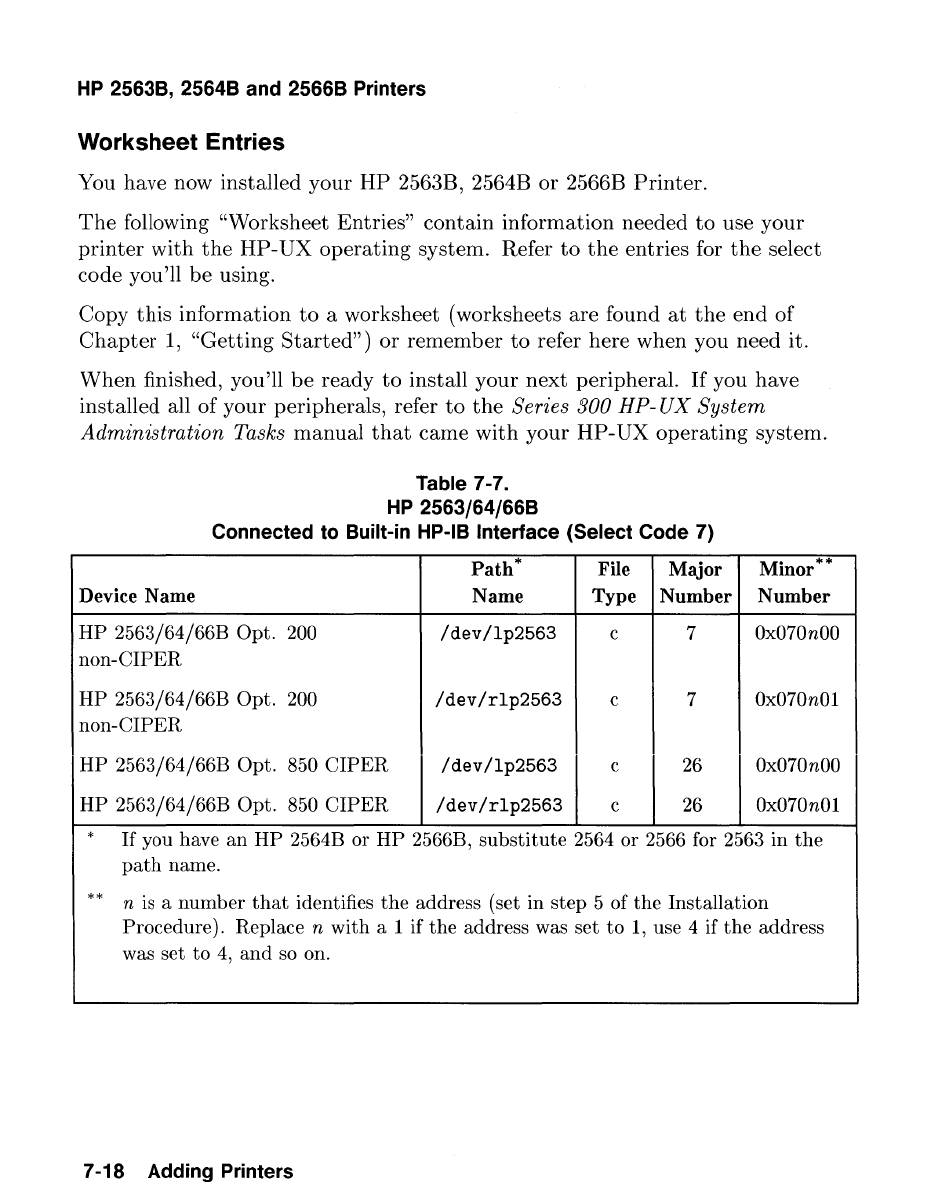

HP 2563B, 2564B and 2566B Printers
Worksheet Entries
You have now installed your HP 2563B, 2564B or 2566B Printer.
The following "Worksheet Entries" contain information needed to use your
printer with the HP-UX operating system. Refer to the entries for the select
code you'll be using.
Copy this information to a worksheet (worksheets are found at the end of
Chapter 1, "Getting Started") or remember to refer here when you need it.
When finished, you'll be ready to install your next peripheral. If you have
installed all of your peripherals, refer to the Series 300 HP- UX System
Administration Tasks manual that came with your HP-UX operating system.
Table 7-7.
HP 2563/64/66B
Connected to Built-in HP-IB Interface (Select Code 7)
Path*
File Major
Minor **
Device Name Name Type Number Number
HP 2563/64/66B Opt. 200 /dev/lp2563 c 7 Ox070nOO
non-CIPER
HP 2563/64/66B Opt. 200 /dev/rlp2563 c
7
Ox070n01
non-CIPER
HP 2563/64/66B Opt. 850 CIPER /dev/lp2563 c 26 Ox070nOO
HP 2563/64/66B Opt. 850 CIPER
/dev/rlp2563
c 26 Ox070n01
*
If you have an HP 2564B or HP 2566B, substitute 2564 or 2566 for 2563 in the
path name.
**
n is a number that identifies the address (set in step 5 of the Installation
Procedure). Replace
n
with a 1 if the address was set to 1, use 4 if the address
was set to 4, and so on.
7 -18 Adding Printers
