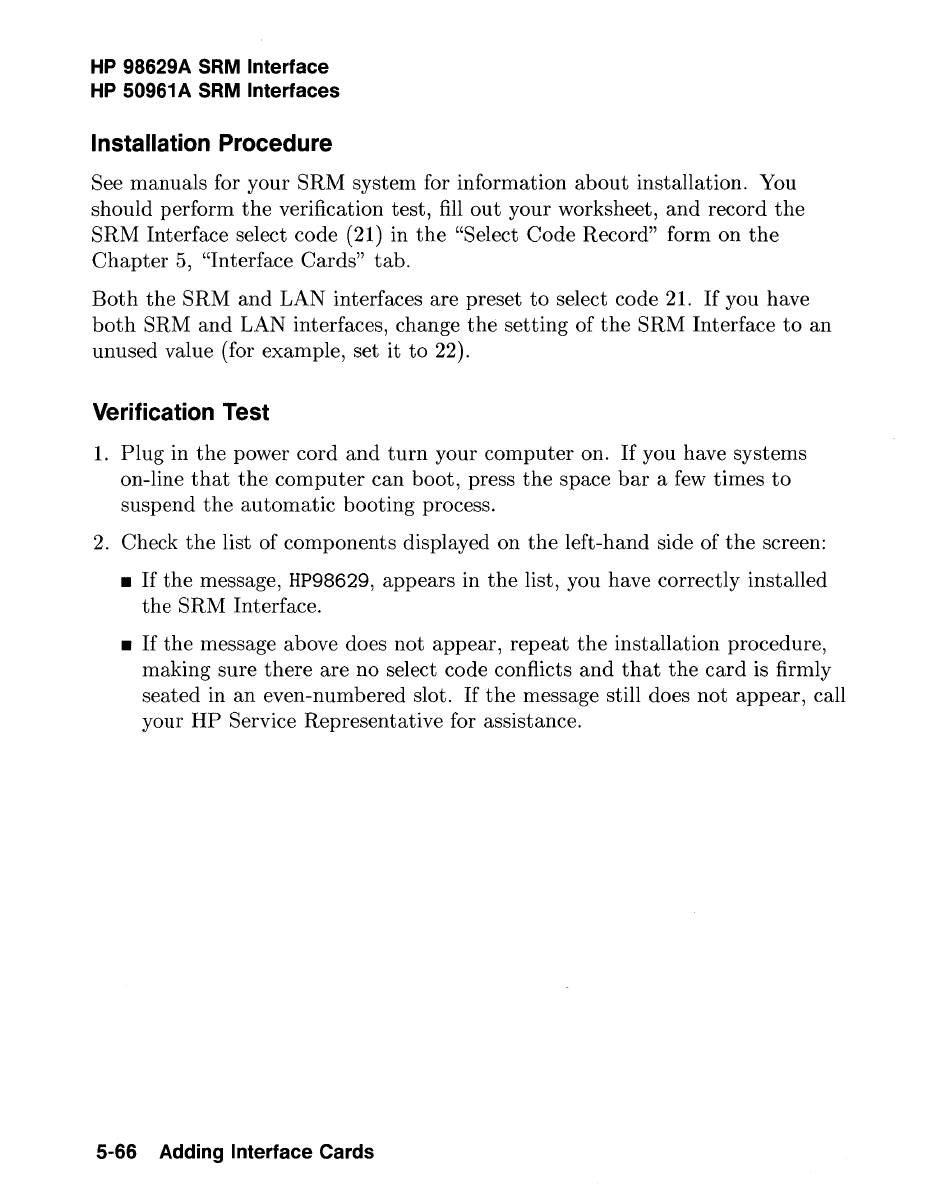

HP 98629A SRM Interface
HP 50961 A SRM Interfaces
Installation Procedure
See manuals for your SRM system for information about installation. You
should perform the verification test, fill out your worksheet, and record the
SRM Interface select code (21) in the "Select Code Record" form on the
Chapter 5, "Interface Cards" tab.
Both the SRM and LAN interfaces are preset to select code 21. If you have
both SRM and LAN interfaces, change the setting of the SRM Interface to an
unused value (for example, set it to 22).
Verification Test
1. Plug in the power cord and turn your computer on. If you have systems
on-line that the computer can boot, press the space bar a few times to
suspend the automatic booting process.
2. Check the list of components displayed on the left-hand side of the screen:
• If the message,
HP98629,
appears in the list, you have correctly installed
the SRM Interface .
• If the message above does not appear, repeat the installation procedure,
making sure there are no select code conflicts and that the card is firmly
seated in an even-numbered slot. If the message still does not appear, call
your HP Service Representative for assistance.
5-66 Adding Interface Cards
