Single Unit Mounting Kit (KT-0000095) for PS 1, PS 1.5

Use this kit in combination with the Universal Pole Mounting Kit (PL/12319-1).
Item
1
2
3
4
5

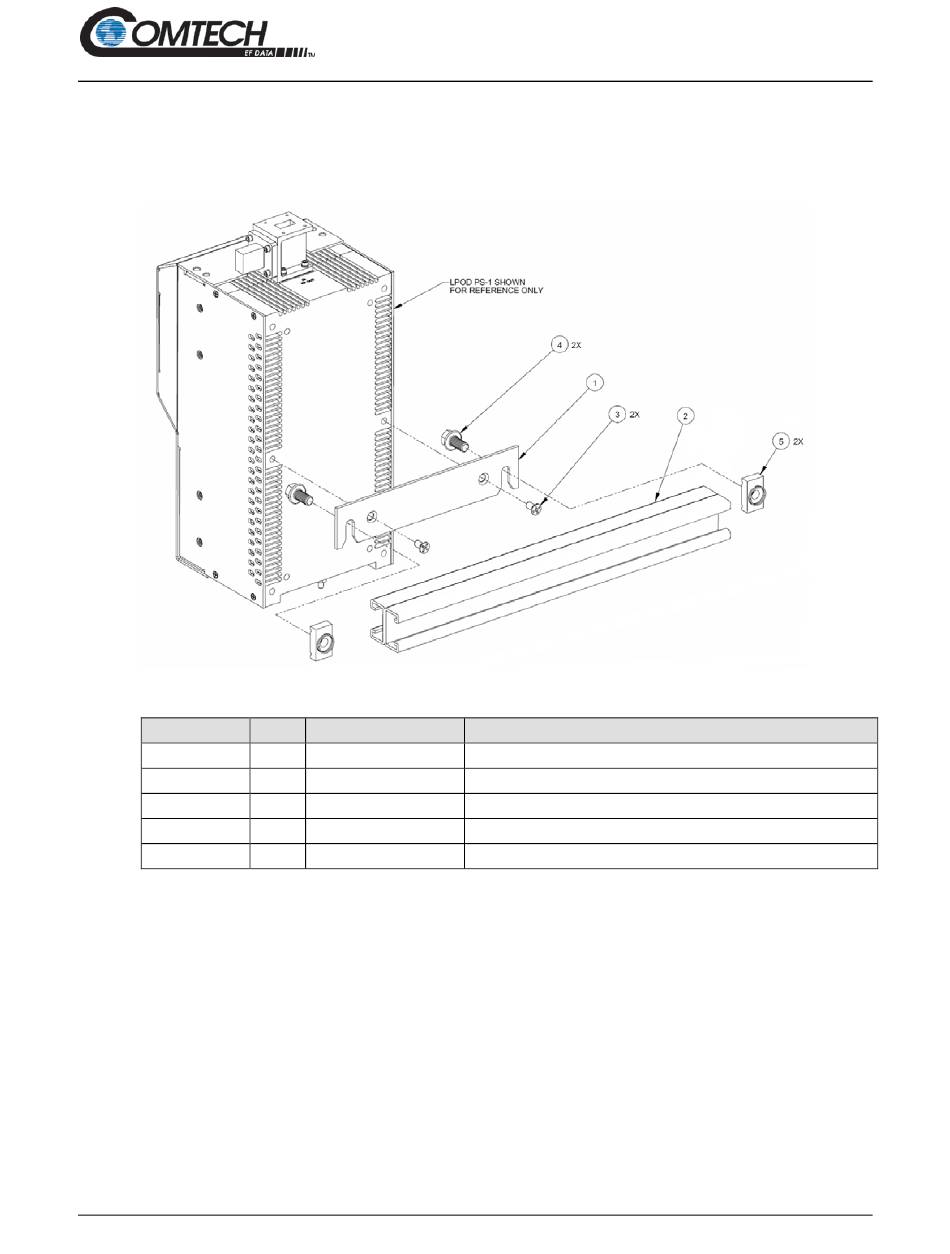

Figure 2-10. Single Unit Mounting Kit (KT-0000095) for PS 1, PS 1.5
System Connectors, Installation, and Startup
Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Qty CEFD Part Number
1 FP-0000534
1 FP/BR0078
2 HW/1/4-20X1/2FH
2 HW-0000070
2 HW/3/8SPRINGNUT
Description
BRACKET, MOUNTING
UNISTRUT, DUAL CHANNEL
SCREW, 82° FLAT HEAD, PHILLIPS, 1/4-20 x 1/2 LG, SS
SCREW, HEX, SERRATED FLANGE HEAD, 3/8-16 x 3/4 LG, SS
SPRINGNUT, SHORT SPRING, 3/8-16, SS (P3300)
