Important Notes:
· The codec has 4 physical CONTROL PORT GPIOs and 64 Tieline logic IOs. These
Tieline logic IOs are only supported between Genie, Merlin, ViA and Bridge-IT IP codecs.
· Up to 64 WheatNet logic IOs are available in Genie Distribution and Merlin PLUS
WheatNet-IP codecs, which allow Tieline WheatNet-IP enabled codecs to activate
functions across a WheatNet-IP network.
· Virtual inputs 5-7 can be activated by pressing the F1 button and SOURCE buttons 1-3.
· A non-WheatNet-IP Tieline codec can be configured to trigger a WheatNet logic IO (LIO)
in a Tieline WheatNet-IP codec.
· Tieline WheatNet-IP codecs require Wheatstone Razor firmware version 1.4.22 or later to
support WheatNet LIOs. In addition, the WheatNet-IP codec must have the WNet
Enable LIO checkbox selected in the Options panel of the HTML5 Toolbox Web-GUI.
· Relay reflection is not available for SIP and Multicast Client programs.
Configure Rules with the Program Manager Panel
To configure program or stream level rules follow the instructions in this user manual for setting up
connections.
Program Level Rules

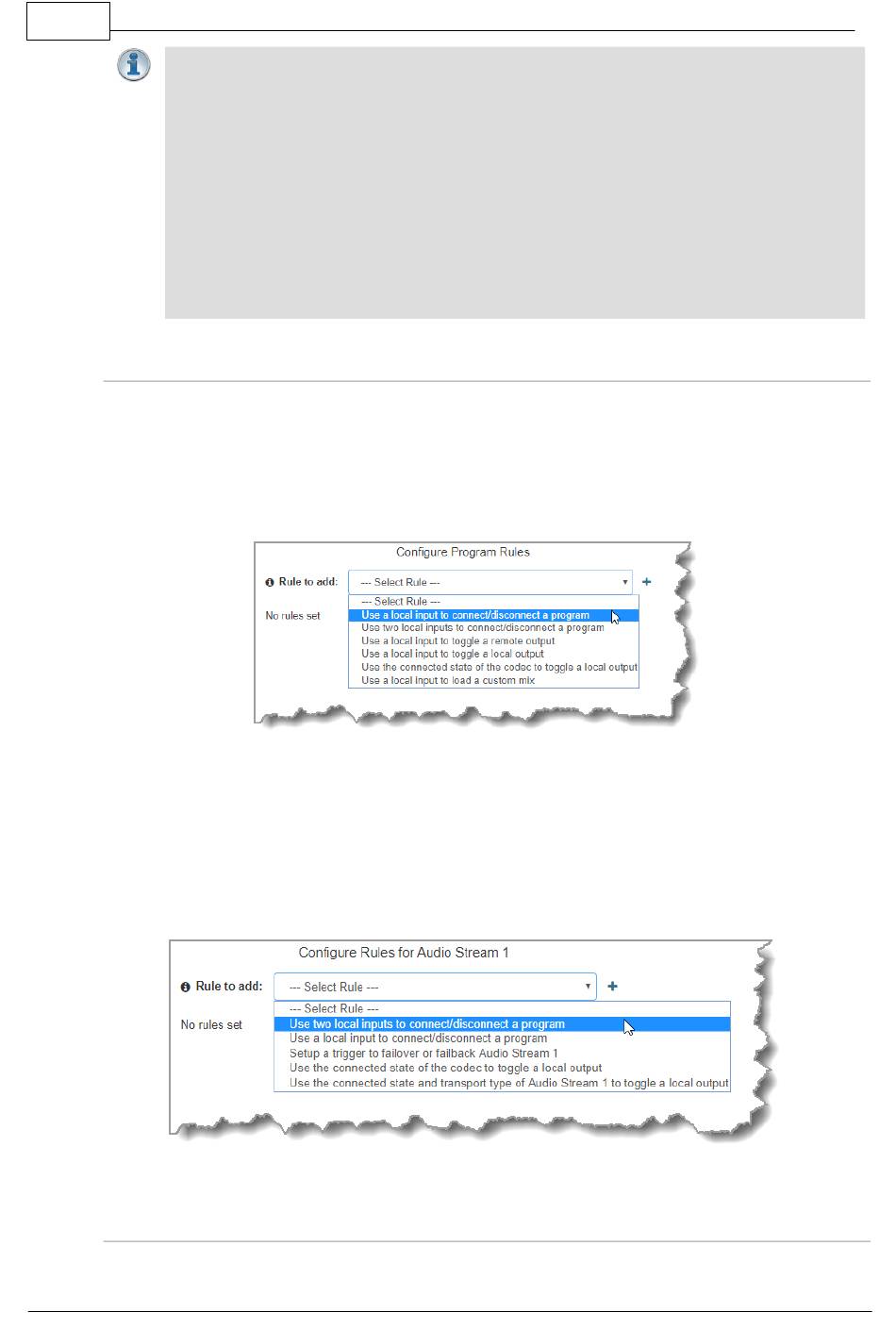

In the Program Manager panel wizard use the Configure Program Rules screen to
configure program level rules. The rules available are displayed in the following image.
Note: Rules intended to activate dialing will not be valid in Answer only programs or audio
streams.
Stream Level Rules
In the Program Manager panel wizard use the Configure Rules for Audio Stream screen
later in the wizard to configure stream level rules. The rules available are displayed in the
following image.
Note: A subset of filtered rules will be displayed for an Answer only audio stream connections.
Configuring Rules with the Rules Panel
To view rules options in the Rules panel:
