· Failover and SmartStream PLUS redundant streaming are not available with SIP or
sessionless IP connections.
· POTS is not supported for stereo audio stream connections.
· To learn more about programs see the section titled
Programs.

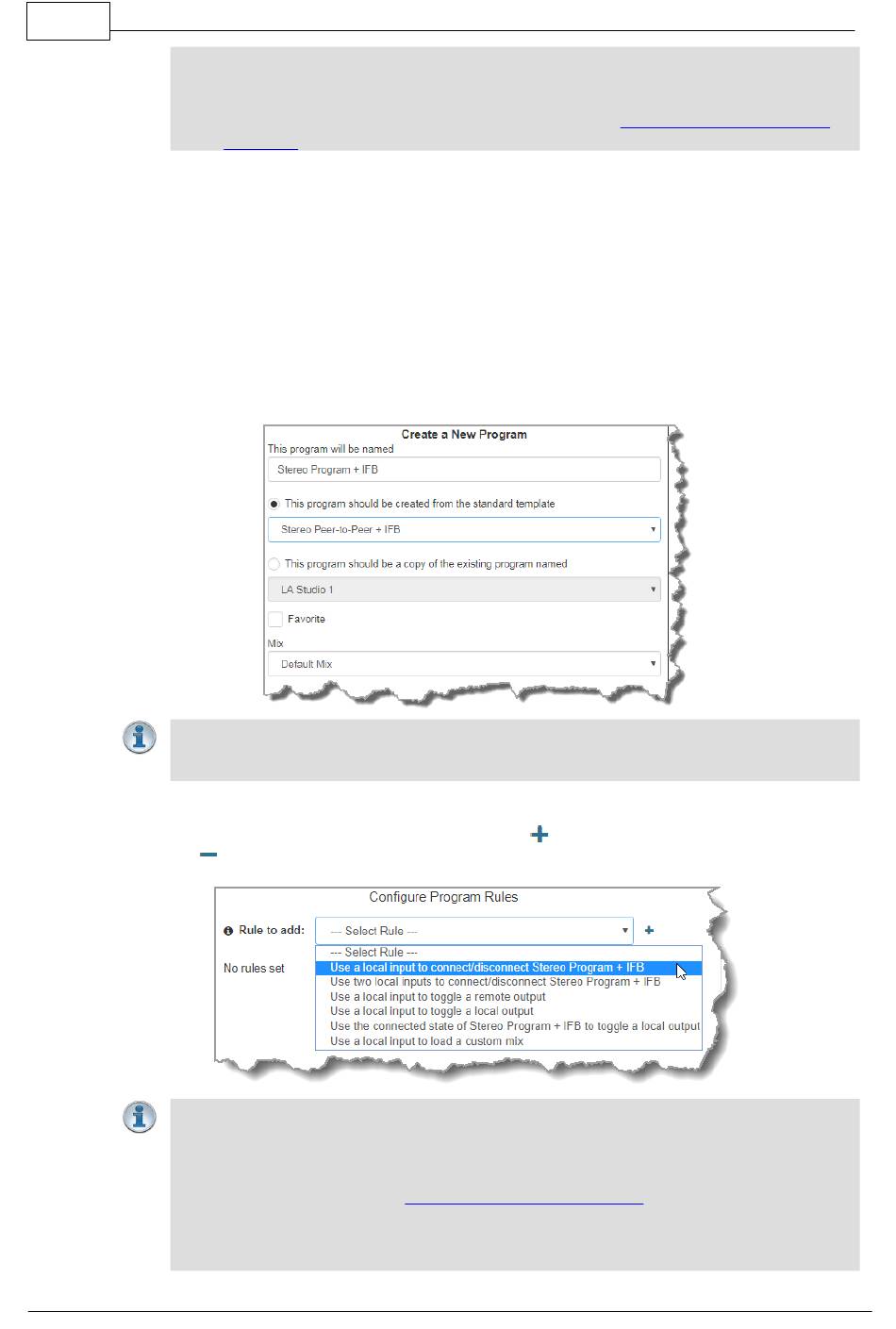

1. Open the HTML5 Toolbox Web-GUI and click Connect in the Menu Bar, then select Program
Manager to launch the Program Manager panel.
2. Click the Create New Program button to open the wizard and:
· Click in the text box to name the new program.
· Select Mono/Stereo Peer-to-Peer + IFB, or if you want to use an existing program as a
template, select this option.
· Click to select the Favorite check-box if you want to add the new program to the list of
favorites in the codec. Note: The following example is configured to connect a stereo audio
stream and mono IFB stream.
· Click the Mix drop-down arrow to associate a custom matrix mix with the program if required,
then click Next.
Important Note: When you decide to use an existing program as a template, the new
program inherits all the settings of the template program and you can adjust these
settings as required by continuing through the program wizard.
3. To configure new program level rules click the drop-down arrow and select the preferred option
from those available. Click the blue Plus symbol
symbol to remove a rule.
Important Notes for Rules:
· The codec has 4 physical CONTROL PORT GPIOs; 7 Tieline and WheatNet virtual
inputs (1-7); 64 Tieline virtual logic outputs; and, 64 virtual WheatNet logic outputs
(these allow Tieline WheatNet-IP enabled codecs to activate functions across a
WheatNet-IP network). See
· Virtual inputs 5-7 can be activated by pressing the F1 button and SOURCE buttons 1-3.
· A non-WheatNet-IP Tieline codec can be configured to trigger a WheatNet LIO in a
Tieline WheatNet-IP codec.
to add a new rule and click the Minus
Enabling Relays & RS232 Data
Load, Connect and Manage
for more info.
