22 Analog and Digital Outputs
The codec has two XLR outputs and also supports S/PDIF or micro USB digital outputs. The XLR
Output Settings and the Digital Output Settings screens support:
· Selection of input sources to route to outputs.
· Output mute and output level controls.
· Adjustment of the Send/Return balance between input sources and decoder audio sent to the
outputs.
Important Note: Analog audio can always be fed from the XLR OUTPUTS. However, to
feed audio from either the digital USB AUDIO I/O (via micro USB Type-B) or S/PDIF OUT
it is necessary to configure the auxiliary input to be the same as the output you are
using. E.g. From the Home screen tap Audio > Inputs
symbol
Note: It is not possible to feed audio from both the USB AUDIO I/O or S/PDIF OUT
simultaneously.
XLR Output Controls
It is simple to control input and decoder audio routed to the XLR outputs.

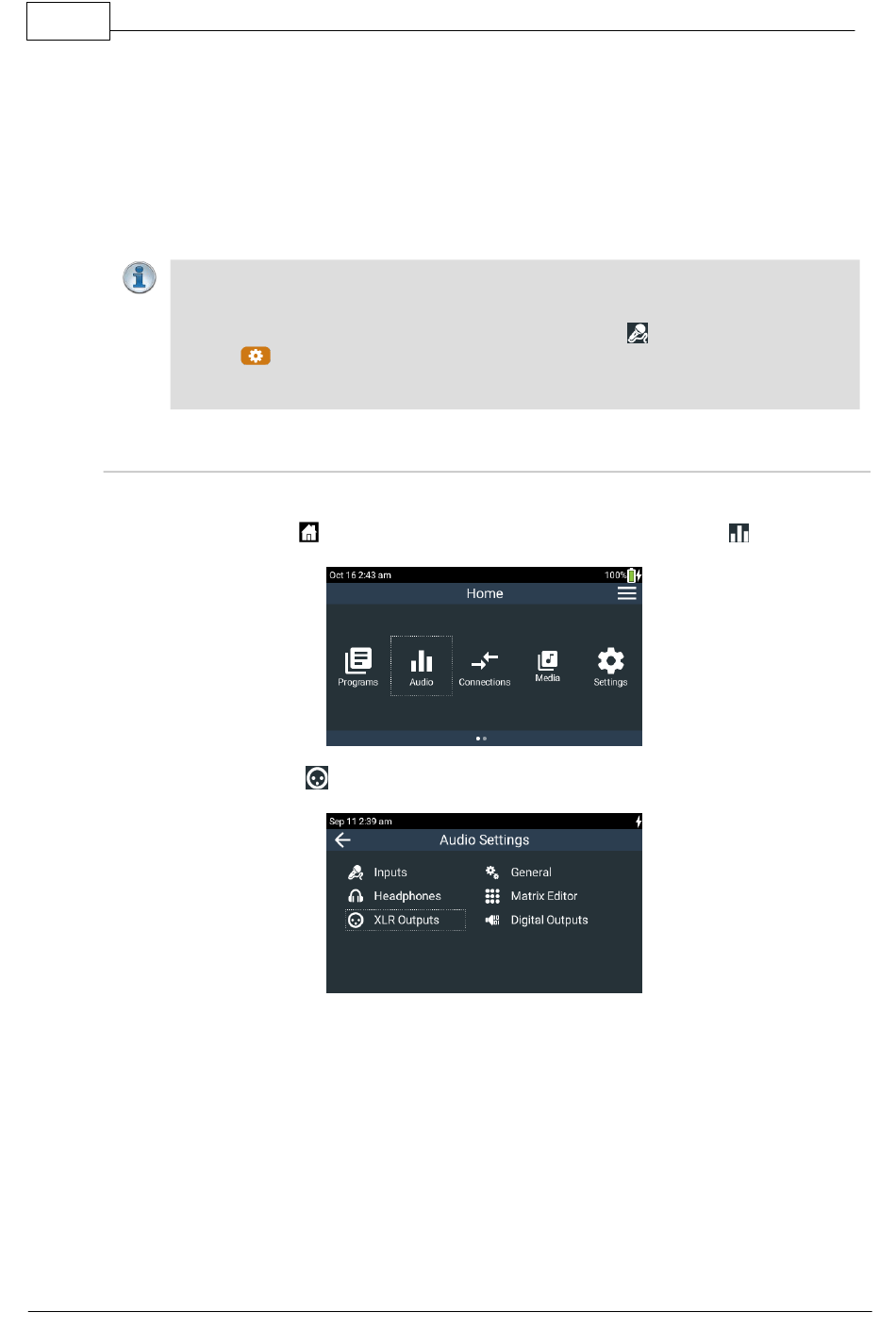

1. Press the HOME
2. Tap XLR Outputs
3. The XLR Output Settings screen is displayed with several controls
> Input Type > USB on the aux input when using the micro USB output.
button to return to the Home screen, then tap Audio
.
> Aux Input > Settings
.
