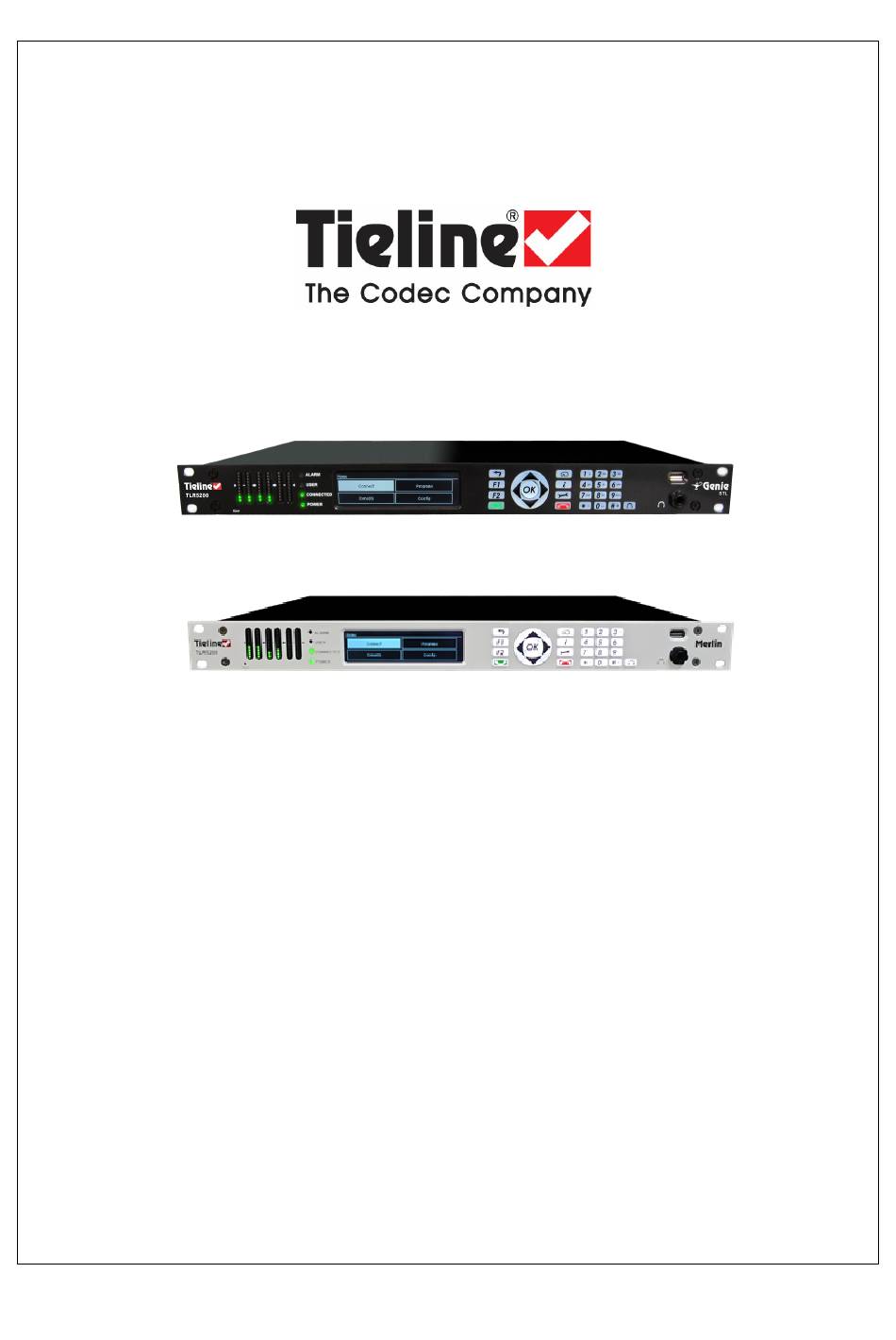

- Page 1 Tieline G5 Codec Compatibility over IP and ISDN Manual Version: 1.2 May, 2019...
-
Page 2: Table Of Contents
Tieline G5 Codec Compatibility over IP and ISDN v1.2 Table of Contents Part I Connecting Tieline IP to other Codecs Using SIP 1 Connecting to a Comrex Access Rack Codec ........................... 8 2 Connecting to a Comrex Access Portable ........................... 9 3 Connecting to a Mayah Sporty ........................... -
Page 3: Part I Connecting Tieline Ip To Other Codecs Using Sip
The benefit of using a SIP server to connect is that any device can be ‘discovered’ via its SIP server registration. This is particularly useful if a codec is being used in multiple locations with IP addresses that are DHCP assigned. These DHCP addresses are unreliable and are not recommended for live broadcast connections. - Page 4 Disadvantages of SIP SIP requires both codecs to be configured with the same settings before connecting or the connection will fail. When dialing Tieline to Tieline the dialing codec provides all connection This is not possible when using SDP in SIP mode.
- Page 5 SIP. See "Configure SIP White and Blacklists" for more information. 5. An SSL security certificate can be installed on each codec in your network to ensure it is a trusted device within your network. See "Installing a Security Certificate" for more information.
- Page 6 What is a SIP URI? SIP URIs can be used to whitelist or blacklist devices from connecting to a codec. A SIP URI is the address or characters used to call another person via SIP. A SIP URI is essentially a user's 'contact address' and is used by VoIP phones and other devices to call using SIP.
- Page 7 Tieline SIP codec. · From firmware v2.16.xx and later releases the user agent in a Tieline G5 codec is configured as "Tieline <ProductName> <Firmware Version>". E.g. Tieline Bridge-IT v2.18.68.
-
Page 8: Connecting To A Comrex Access Rack Codec
17. Click the Store New Remote button to create a new connection. 18. Enter the Remote Name and the IP address of the Tieline codec you are dialing. Then select the profile you want to use via the drop-down Profile list box, next click OK. -
Page 9: Connecting To A Comrex Access Portable
8. Tap the Network drop-down menu at the top of the screen, then tap Manage Networks to determine the IP address (DHCP by default) of the codec as you will need this to dial into the codec from a Tieline codec. -
Page 10: Connecting To A Mayah Sporty
2. Apply power to the Mayah Sporty. 3. Find the IP address of the codec via F2 [Codec1] > F3 [Setup] > F1 [Interface] > Ethernet > OK. Use the navigation buttons to find the IP address as you will need this to dial into the codec from the Tieline codec. -
Page 11: Connecting To A Telos Zephyr Ip
Connecting Tieline IP to other Codecs Using SIP 3. Use the numeric KEYPAD to enter the IP address of the codec you want to dial, using the buttons to enter the periods in the IP address and use the RETURN button to delete numbers already entered. -
Page 12: Connecting To An Apt Worldcast Equinox
Home screen, select Connect > IP > SIP. 3. Use the numeric KEYPAD to enter the IP address of the codec you want to dial, using the buttons to enter the periods in the IP address and use the RETURN button to delete numbers already entered. - Page 13 Connecting Tieline IP to other Codecs Using SIP 2. Apply power to the codec. 3. To find the IP address in the codec press the INF button on the codec until you can see the IP address listed adjacent to ADDR: 4.
-
Page 14: Part Ii Connecting Tieline Isdn To Other Codecs
Connecting Tieline ISDN to other Codecs To dial from a Tieline codec to a non-Tieline codec it is necessary to disable ‘Session Data’ and use an algorithm like G.722 or MPEG Layer 2 for compatibility. The same settings must be configured at both ends for: ·... - Page 15 Important Note: Configure ISDN Answer Config settings in the codec before attempting to dial from the Equinox to the Tieline codec. Select the following settings in the Tieline codec in one of the Configs (see ISDN Answering Configuration for more detail):...
-
Page 16: Connecting To Cdq Prima Isdn
Connecting to CDQ Prima ISDN Use the following information to connect a Tieline codec to a Musicam CDQ Prima codec. Configuring the CDQ Prima for a Mono Connection Select a mono profile in the Prima codec for the connection: 1. - Page 17 6. Use the "Enter" button and navigate to the type of interface you are using. Note: During Tieline tests we used an "Internal TA". 7. Select the actual terminal adapter connected to your codec. Note: During Tieline tests we used the internal "TA301".
- Page 18 32kHz sampling. Important Note: Configure ISDN Answer Config settings in the codec before attempting to dial from the Equinox to the Tieline codec. Select the following settings in the Tieline codec in one of the Configs: · May bond.
-
Page 19: Connecting To Mayah Isdn
5 seconds. This can be performed by the Tieline codec. It has also been noted that the CDQ Prima codec will not connect if no audio is present when dialing. It may connect Prima > Tieline, but not Tieline > Prima. If audio is present, the codec should connect and stay connected even if audio is removed subsequently. - Page 20 5. Navigate down to Auto Reconnect and press the button to toggle between Enabled and Disabled. Note: This is normally enabled on the dialing codec only. 6. Navigate down to Save as Program and press the button to save these settings as a program.
-
Page 21: Connecting To Telos Zephyr Xstream Isdn
Connecting to Telos Zephyr Xstream ISDN Configuring the Xstream to Make an ISDN Call 1. Plug your ISDN line into the back of the codec and press the "Codec" button below the LCD screen on the Xstream. 2. "Transmit" should be highlighted and this lets you select your transmit algorithm of choice. If it is not selected use the arrow buttons on the right-hand side of the LCD screen to navigate to this menu item and press the "SEL"... - Page 22 "48kHz". Press the "SEL" button and use the arrow buttons to make any adjustments to the current setting. 8. Press the "Tel" button below the codec LCD screen and press it again to display the "SPID" and "DN/MSN" screen. If these numbers need to be entered (check with your Telco), use the arrow buttons to navigate to each SPID and DN/MSN field in turn and when it is highlighted press the "SEL"...
- Page 23 Dialing from the Zephyr Xstream Important Note: Configure ISDN Answer Config settings in the codec before attempting to dial from the Xstream to the Tieline codec. Select the following settings in the Tieline codec in one of the Configs: · May bond.
-
Page 24: Connecting To Comrex Matrix Isdn
2. Use the keypad to enter the number of the line you are dialing. 3. Press the "Dial" button again to make the outgoing call from the Xstream. 4. The codec screen will briefly display "Outgoing Ring" and then "Conn" is displayed after a successful connection. - Page 25 8. Select the ISDN module you want to configure and press the button. Important Note: ISDN Sync should be displayed when an ISDN line is connected to the codec. This appears regardless of whether you have configured the ‘ISDN Line Type’ correctly. 9. Configure the following settings: ·...
- Page 26 Dialing from the Comrex Matrix Important Note: Configure ISDN Answer Config settings in the codec before attempting to dial from the Comrex Matrix to the Tieline codec. Select the following settings in the Tieline codec in one of the Configs: ·...
