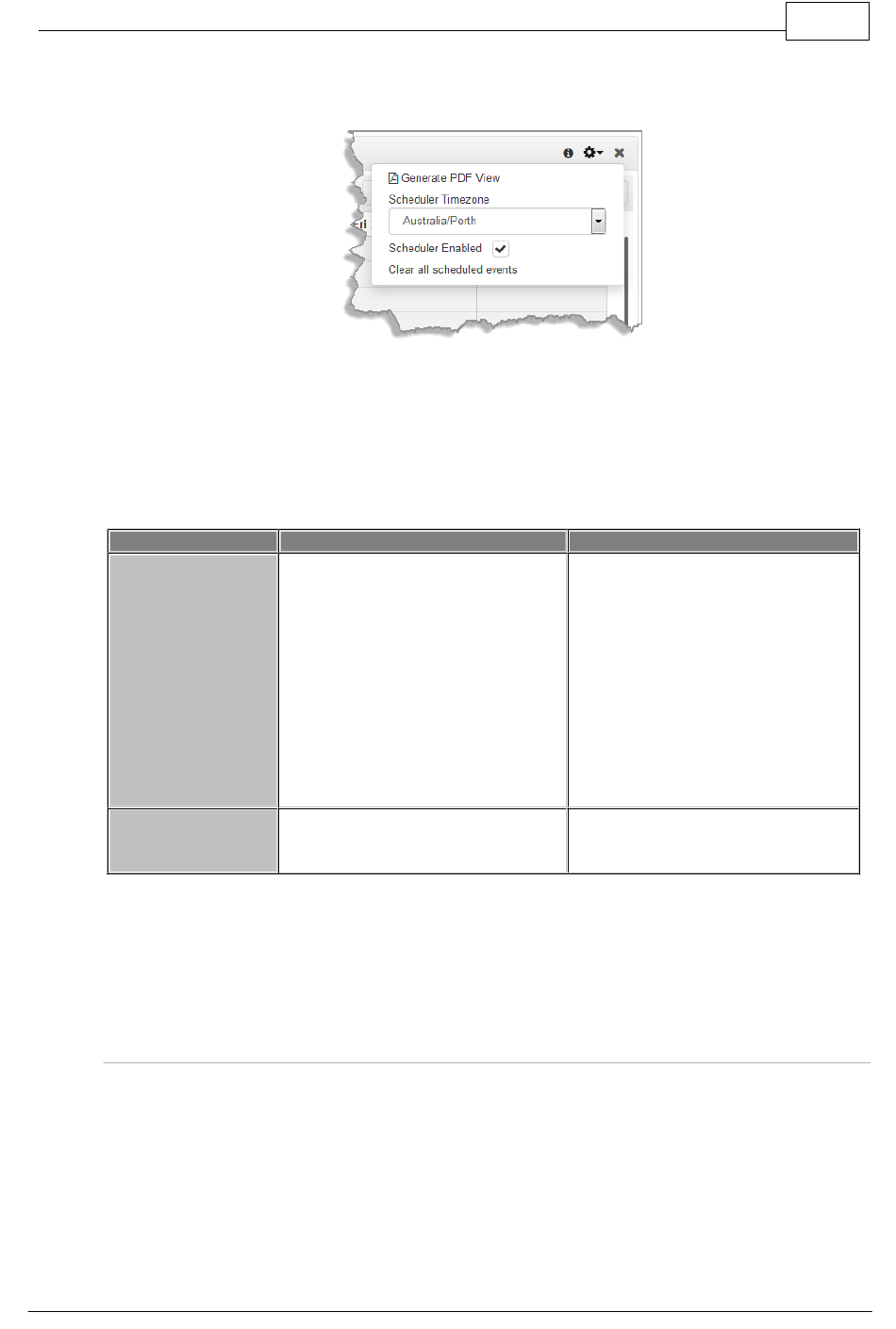

2. Adjust the Scheduler Timezone.
3. Enable / Disable the Scheduler.
4. Clear all Scheduled Events.

33.33 RS232 Data Configuration

The codec supports both in-band and out-of-band data depending on the connection transport and
algorithm you are using. In-band RPTP data is automatically included within an audio stream when
using Tieline Music and Music PLUS algorithms over any transport – IP, ISDN or POTS. Over IP it
is also possible to enable synchronized out-of-band data in separate packets using any algorithm.
Algorithm Selected
Tieline Music and
MusicPLUS
All
algorithms
Select Enable Auxiliary Data when creating a program in the Program Manager panel or
Connections panel to enable out-of-band RS232 data and activate rules employing relay reflection
over a connection. This will allow the codec to connect to external devices and send RS232-
compatible data via the serial port on the rear panel. Alternatively, select Home screen > Dialer >
Auxiliary Data > On to enable auxiliary data using the codec's TOUCH SCREEN.
Setting RS232 Data Rates and Flow Control
1. Open the HTML5 Toolbox Web-GUI and click Settings in the Menu Bar, then click Options
to display the Options panel.
2. Select RS232, then click Edit and click the Baud rate drop-down menu arrow to select the
serial port baud rate. Ensure this matches the baud rate of the external device connected to
the RS232 port on the codec.
3. Click to select the Enable flow control check box and enable flow control, then click Save
to store the new settings.
© Tieline Research Pty. Ltd. 2020
· In-band RPTP data is enabled
automatically
· Synchronized out-of-band data
can be enabled and disabled as
required
· Using out-of-band data with rules
between G5 codecs employing
relay reflection minimizes latency
· These algorithms must be used
when connected to G3 codecs as
they don't support out-of-band
data
other · No in-band data available;
synchronized out-of-band data
can be enabled and disabled
IP
· In-band RPTP data is enabled
· No in-band or out-of-band data
ViA User Manual v3
ISDN and POTS
automatically and used for all
rules including relay reflection
available
