33 Using the HTML5 Toolbox Web-GUI
The following sections provide an overview of the different configuration panels available within the
codec's HTML5 Toolbox Web-GUI. Navigate with the mouse pointer to the Menu bar at the top of
the Web-GUI screen and click to select and open each panel in turn.
When you first open the HTML5 Toolbox Web-GUI the Program Manager panel, Connections
panel and PPMs panel are loaded by default. If you retain cookies in your browser, any panels
opened previously in the Web-GUI are automatically populated when you log in next. The default
panel view is displayed on login if cookies have been cleared.

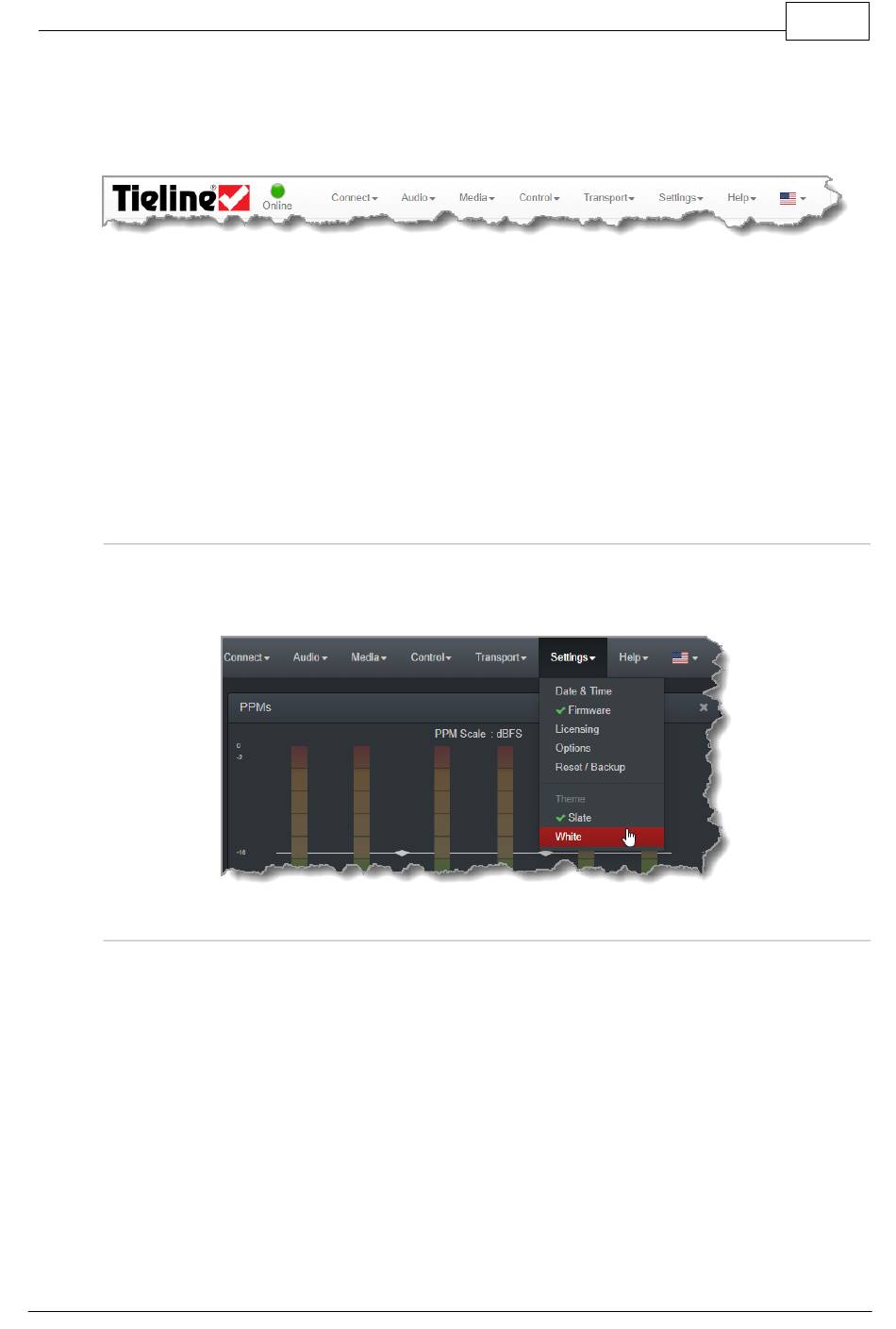

The green Online indication in the top left-hand corner of the Toolbox Web-GUI indicates it is online
and can be used for codec control. A red Offline indication is displayed when the codec is
unavailable. The Upgrade symbol is displayed when a new firmware version is available for the
codec. Open the Firmware panel in the Settings menu to upgrade the codec with new firmware.
Adjusting the Theme
To adjust the Theme or 'skin' of the HTML5 Toolbox Web-GUI, navigate to the Menu bar at the top
of the screen and click Settings, then click to select your preferred option. Note: this manual uses
the White theme for most images.
Opening a Panel & Adjusting Size or Screen Position
Click an item in the Menu bar to display available panel options, then click to select and open a
panel. New panels automatically open in the top left of the screen. A green Tick adjacent to a panel
name in the menu signifies it is already open in the web-GUI.
© Tieline Research Pty. Ltd. 2020
HTML GUI Menu Bar for Opening Panels
