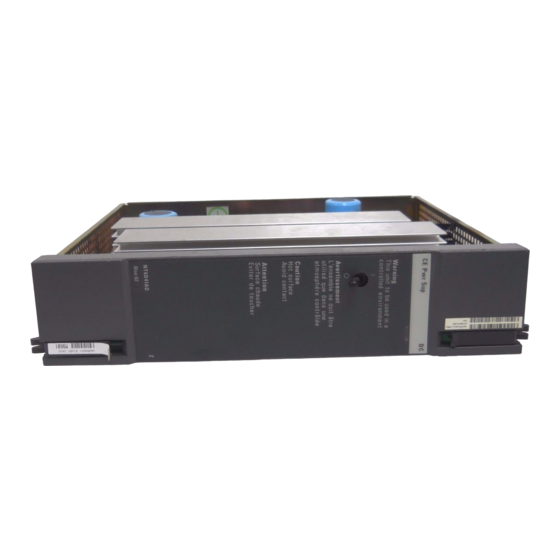

Meridian 1
Hardware replacement
Document Number: 553-3001-520
Document Release: Standard 16.00
Date: April 2000
Year Publish FCC TM
Copyright © 1990– 2000 Nortel Networks
All Rights Reserved
Printed in Canada
Information is subject to change without notice. Nortel Networks reserves the right to make changes in design
or components as progress in engineering and manufacturing may warrant. This equipment has been tested
and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules, and the
radio interference regulations of Industry Canada. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at their own expense.
SL-1 and Meridian 1 are trademarks of Nortel Networks.
Hardware replacement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Meridian 1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nortel Meridian 1

Summary of Contents for Nortel Meridian 1

  • Page 1 All Rights Reserved Printed in Canada Information is subject to change without notice. Nortel Networks reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant. This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules, and the radio interference regulations of Industry Canada.

  • Page 3: December

    NT9D19 Call Processor Card and the circuit card replacement procedure for replacing an IOP and a CMDU with an IOP/CMDU. July 1995 Standard, release 10.00. This document is reissued to include international information to create a global Nortel Networks technical publication (NTP), Hardware replacement...
  • Page 4 Page 4 of 362 Meridian 1 Option 81C, and minor text edits. Changes to technical content are noted by revision bars in the margins. December 1994 Standard, release 9.0. Reissued for technical content. December 1994 Standard, release 8.0. This document is reissued to include updated information on the Small Systems Multi Disk Unit (SMDU), Meridian 1 Option 51C, and edits.

  • Page 5: Table Of Contents

    Page 5 of 362 Contents References ..........Content list .
  • Page 6 Page 6 of 362 Contents Extended Multi - Frequency NT5K21AA Compelled Sender/Receiver Card ........NT1P61 Fibre Superloop Network Card .
  • Page 7 Contents Page 7 of 362 NT7R51 Local Carrier Interface Card ......NT7R52 Remote Carrier Interface Card ..... . . NT8D01 Controller Card .
  • Page 8 Page 8 of 362 Contents NTND01 Integrated CPU/Memory Card ..... . . NTND02 Misc/SDI/Peripheral Signaling Card ....NTND08, QPC939 ROM Card .
  • Page 9 Contents Page 9 of 362 Replacing NT5D20 IOP/CMDU cards or NT6D63 IOP and NT6D64 CMDU cards with NT5D61 IODU/C cards ... . . Replacement procedures for redundant systems (Options 61C, 81, 81C) ........Splitting the cores .

  • Page 10: Standard 16.00 April

    Page 10 of 362 Contents 553-3001-520 Standard 16.00 April 2000...

  • Page 11: References

    Nortel Networks representative to verify that the hardware and software described is supported in your area. This document tells you how to replace hardware in Meridian 1 systems. In this manual, “replacing hardware” means removing a faulty piece of equipment and installing identical operating equipment. The procedures in...
  • Page 12 Page 12 of 362 About this document • Telephone and Attendant Console: Installation (553-3001-215) • General Maintenance Information (553-3001-500) • Fault Clearing (553-3001-510) See the X11 software guide for an overview of software architecture, procedures for software installation and management, and a detailed description of all X11 features and services.

  • Page 13: Content List

    Note: The Multi User Login feature, available with X11 release 19 and later, allows more than one device to interact with the Meridian 1. Refer to X11 System Management Applications (553-3001-301) for details on using this feature.

  • Page 14: Access Through The System Terminal

    Page 14 of 362 Accessing the system Access through the system terminal You can send maintenance commands and receive system messages by accessing the CPU through an RS-232 device, such as a video display terminal (VDT) or teletypewriter (TTY). When you access the system through a system terminal, a login procedure is required (see Procedure 1).

  • Page 15: Access Through The Maintenance Telephone

    Accessing the system Page 15 of 362 The normal response is PASS? If there is any other response, see the X11 Administration (553-3001-311). Enter either the level 1 or level 2 password and press the return key. If the password is correct, the system responds with the prompt >. Load a program by entering LD xx “xx”...
  • Page 16 Page 16 of 362 Accessing the system Note: To use the maintenance telephone, the peripheral equipment loop for that telephone must be operating. Table 1 Translation from keyboard to telephone dial pad Keyboard Dial pad Space or # Return Note: There is no equivalent for Q or Z on a dial pad. 553-3001-520 Standard 16.00 April 2000...
  • Page 17 Accessing the system Page 17 of 362 Procedure 2 Access through the maintenance telephone Press the prime DN key. Place the set in maintenance mode by entering xxxx91 “xxxx” is the customer Special Prefix (SPRE) number. It is defined in the Customer Data Block and can be printed using LD 21.
  • Page 18 Page 18 of 362 Accessing the system 553-3001-520 Standard 16.00 April 2000...

  • Page 19: Content List

    Precautions 19 Precautions To avoid personal injury and equipment damage, review the following guidelines before handling Meridian 1 equipment. Power equipment There are no user-repairable components in the power system. If a power supply fails, the complete unit must be replaced. Do not disassemble a power supply under any circumstances.

  • Page 20: Circuit Cards

    To avoid card damage from static discharge, wear a properly connected antistatic wrist strap when you work on Meridian 1 equipment. If a wrist strap is not available, regularly touch one of the bare metal strips in a module to discharge static.

  • Page 21: Data Disks

    Hardware replacement guidelines Page 21 of 362 During replacement procedures: • Turn off the circuit breaker or switch for a module power supply before the power supply is removed or inserted. • In AC-powered systems, capacitors in the power supply must discharge. Wait five full minutes between turning off the circuit breaker and removing the power supply from the module.

  • Page 22: Options 51C, 61C,And 81C Cable Guidelines

    Page 22 of 362 Hardware replacement guidelines Options 51C, 61C,and 81C cable guidelines To disconnect a cable from the Core/Network Module backplane, use the P0741489 Extraction Tool provided in the rear of the module (behind the I/O safety panel). CAUTION You must use the P0741489 Extraction Tool to disconnect cables from the backplane shrouds in the NT5D21 Core/Network Module.
  • Page 23 Hardware replacement guidelines Page 23 of 362 Before you connect cables to the backplane, visually inspect the backplane shroud connectors to make sure there are no bent pins. To connect cables: Orient the cable connector so the strain relief paddle is to the right. Partially insert the cable connector so its guides mate to the corresponding backplane connector.
  • Page 24 Page 24 of 362 Hardware replacement guidelines 553-3001-520 Standard 16.00 April 2000...

  • Page 25: Content List

    Page 25 of 362 Replacing equipment Content list The following are the topics in this section: • Reference list 29 • Module covers 29 • Pedestal grills 31 • Removing UK air exhaust/intake grills 31 • A0321130 Fan Unit 33 •...
  • Page 26 Page 26 of 362 Replacing equipment • NT5D20 IOP/CMDU 65 • RReplacing the NT6D63 IOP and the NT6D64 CMDU with the NT5D20 IOP/CMDU 74 • NT5D30AA Dual InterGroup Switch (DIGS) card 84 • NT6D3903 CPU/Network Module Card Cage 87 • NT6D40, NT6D41, NT6D42, Power Supply DC 92 •...
  • Page 27 Replacing equipment Page 27 of 362 • NT8D02, NT8D03, NT8D09, NT8D14, NT8D15, NT8D16 Intelligent Peripheral Equipment Card 166 • NT8D04 Superloop Network Card, QPC414 Network Card 169 • NT8D17 Conference/TDS Card 171 • NT8D18 Network/DTR Card 173 • NT8D19 Memory/Peripheral Signaling Card 174 •...
  • Page 28 Page 28 of 362 Replacing equipment • NTND01 Integrated CPU/Memory Card 236 • NTND02 Misc/SDI/Peripheral Signaling Card 237 • NTND08, QPC939 ROM Card 239 • NTND09, QPC583 Memory Card 241 • NTND10, QPC581 Changeover and Memory Arbitrator Card 243 • NTND15, NT8D68 Floppy Disk Unit 246 •...

  • Page 29: Reference List

    Replacing equipment Page 29 of 362 • Replacing the Security Device on a redundant system 290 • Replacing the Security Device on an Option 51C system 292 • Replacing NT5D20 IOP/CMDU cards or NT6D63 IOP and NT6D64 CMDU cards with NT5D61 IODU/C cards 298 •...
  • Page 30 Page 30 of 362 Replacing equipment • Simultaneously push the latches toward the center of the cover and pull the cover toward you while lifting it away from the module. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.

  • Page 31: Pedestal Grills

    Replacing equipment Page 31 of 362 Pedestal grills To remove the front and rear grills on the pedestal: • Loosen the two captive screws that secure the grill. • Pull the grill forward and lift it out of the base of the pedestal (see Figure 3).
  • Page 32 Page 32 of 362 Replacing equipment Figure 4 Removing air exhaust grill Top cap Air exhaust grill Air exhaust grill 1/4 turn fasteners 553-7375 Air intake grill The front and rear air intake grills are secured by captive panel screws located in the face of the grill (see Figure 3).

  • Page 33: A0321130 Fan Unit

    Replacing equipment Page 33 of 362 A0321130 Fan Unit Use this procedure to replace the fan unit used in Option 21A. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area. Removing equipment Disconnect power to the top cap fan: a) Remove the rear cover on the module.
  • Page 34 Page 34 of 362 Replacing equipment Figure 7 Top cap assembly 553-3001-520 Standard 16.00 April 2000...
  • Page 35 Replacing equipment Page 35 of 362 Remove the top cap fan: a) Remove the four corner screws that secure the fan and the metal cover plate on top of the fan. Keep the cover plate handy; you will use it with the replacement fan. b) Disconnect the black cord from the plug on the front of the fan.

  • Page 36: A0378252 Battery Pack Assembly

    Page 36 of 362 Replacing equipment A0378252 Battery Pack Assembly The battery pack assembly is attached to the NTND02 Misc/SDI/Peripheral Signaling (MSPS) Card. Use this procedure to replace a battery pack. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 37 Replacing equipment Page 37 of 362 Remove the battery pack from the MSPS card: a) Disconnect the wire from the battery pack assembly to the connector on the MSPS card. Unplug the clip connector wired to the battery pack. b) On the back side of the MSPS card, remove the three screws that secure the battery pack.

  • Page 38: Ntag26 Extended Multi-Frequency Receiver

    Page 38 of 362 Replacing equipment Reinsert the MSPS card and hook the locking devices: Connect the SDI cable to the card. Set the ENB/DIS switch to ENB. Set the ENB/DIS switch on the NT8D18 Network/DTR Card to DIS, then back to ENB. Press the initialize (Init) button on the NTND01 ICM Card to activate a clean initialization.
  • Page 39 Replacing equipment Page 39 of 362 See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.

  • Page 40: Nt5K09 Quad Digitone Receiver

    Page 40 of 362 Replacing equipment End the session in LD 30 by entering **** Tag defective equipment with a description of the problem and package it for return to a repair center. NT5K09 Quad Digitone Receiver Use the following procedure to replace a defective Quad DIGITONE Receiver Card.

  • Page 41: Nt5K10 Dual Loop Peripheral Buffer Card

    Replacing equipment Page 41 of 362 Installing equipment Check that the plug P2 0n the replacement card is oriented in the same way as the card being replaced. Insert the replacement card into the vacated slot and hook the locking devices.
  • Page 42 Page 42 of 362 Replacing equipment CAUTION Service is interrupted when a loop is disabled. Removing equipment Software disable the Dual Loop Peripheral Buffer by entering LD 32 DISS l s (“l s” represents loop and shelf number) Remove the Backplane access plate at the rear of the UEM by removing the screws on each side.

  • Page 43: Nt5K1106 Enhanced Peripheral Equipment Card Cage

    Replacing equipment Page 43 of 362 End the session in LD 30 by entering **** Tag defective equipment with a description of the problem and package it for return to a repair center. NT5K1106 Enhanced Peripheral Equipment Card Cage To replace a defective NT5K1102 Enhanced Peripheral Equipment Backplane in the NT5K11 EEPE UEM, you must replace the NT5K1106 Enhanced Peripheral Equipment Card Cage Assembly.
  • Page 44 Page 44 of 362 Replacing equipment Disconnect cables, plugs, and wires from the back of the UEM to the backplane: — Remove the Backplane access plate by removing the screws on each side (see Figure 9). Set the panel aside. —...
  • Page 45 Replacing equipment Page 45 of 362 Slide the replacement card cage into position in the UEM leaving approximately 3” clearance between the card cage and the backplane. Reconnect cables, plugs, and wires from the UEM to the backplane: Connect all cables from the interior of the I/O assembly to the backplane.
  • Page 46 Page 46 of 362 Replacing equipment Return cards to their slots at the rear of the UEM. Reconnect all cables to connectors. Position the backplane access plate. Replace the screws. Return cards to their slots at the front of the UEM. Reconnect all cables to connectors.

  • Page 47: Extended Multi - Frequency Nt5K21Aa Compelled Sender/Receiver Card

    Replacing equipment Page 47 of 362 Extended Multi - Frequency NT5K21AA Compelled Sender/Receiver Card Use this procedure to replace a NT5K21AA card in an IPE Modules. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 48 Page 48 of 362 Replacing equipment Software enable the card: LD 32 ENLC l s c When the process is complete, you will receive a system response STAT l s c Obtain the status of the card to ensure that the card is enabled **** To exit the program (Optional): Test the card:...

  • Page 49: Nt1P61 Fibre Superloop Network Card

    Replacing equipment Page 49 of 362 NT1P61 Fibre Superloop Network Card Use this procedure to replace an NT1P61 Fibre Superloop Network card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 50 Page 50 of 362 Replacing equipment Pull the upper locking device away from the faceplate on the card and press the lower locking device downward and insert the card firmly into the backplane connector. Press the upper locking device firmly against the faceplate and press the lower locking device upwards to latch the card inside the module.

  • Page 51: Nt1P62 Fibre Peripheral Controller Card

    Replacing equipment Page 51 of 362 NT1P62 Fibre Peripheral Controller Card Use this procedure to replace a Fibre Peripheral Controller card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...
  • Page 52 Page 52 of 362 Replacing equipment Pull the upper locking device away from the faceplate on the card and the lower locking device downwards and insert the card firmly into the backplane connector. Press the upper locking device firmly against the faceplate and the lower locking device upwards to latch the card inside the module.

  • Page 53: Nt5D10 68060 Call Processor (Cp) Card

    Replacing equipment Page 53 of 362 NT5D10 68060 Call Processor (CP) Card Use this procedure to replace an NT5D10 68060 Call Processor (CP) card. WARNING Replacing the CP card in a nonredundant system, such as 51C, will disrupt system operation. If possible, schedule the replacement at the lowest traffic time.
  • Page 54 Page 54 of 362 Replacing equipment The CP card you are replacing must be in the inactive Core. Check the status of the NT5D10 Call Processor cards: LD 135 STAT CPU determine which CP card is active If necessary, switch Cores: SCPU switch Cores ****...
  • Page 55 When the Main Menu appears, select <u> to go to the Install Menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 56 Page 56 of 362 Replacing equipment 10 Select the following options in sequence from the Install Menu: <g> to reinstall CP software <y> to start installation <a> to continue ROM upgrade <cr> to return to the Install Menu 11 When the Install Menu appears, select the following options in sequence <e>...
  • Page 57 Replacing equipment Page 57 of 362 Note: The system will reboot. Wait for the “INI” and “DONE” messages to display before continuing. It will take at least 70 seconds between the “DONE” and “INI” messages. After the system initialization has finished (INI messages are no longer displayed on the system terminal), check for dial tone on a telephone set.
  • Page 58 Page 58 of 362 Replacing equipment 22 If there are CCED messages generated by the STAT CPU command on the replacement CP card, set the NORM/MAINT switch to MAINT, press the reload (MAN RST) button and set the NORM/MAINT switch back to NORM.
  • Page 59 Replacing equipment Page 59 of 362 28 The CP card you are replacing must be in the inactive Core. Check the status of the NT5D10 Call Processor cards: LD 135 STAT CPU determine which CP card is active If necessary, switch Cores: SCPU switch Cores ****...
  • Page 60 Page 60 of 362 Replacing equipment <a> to continue with ROM upgrade <cr> to return to the Install Menu At the Install Menu, select the following options in sequence <e> to install CP-BOOTROM <y> to start installation <y> to continue installation <a>...
  • Page 61 Replacing equipment Page 61 of 362 13 Enable all CNI switches in the inactive Core. 14 Release the MAN RST button. 15 Set the CP card in the active Core to NORM. After several minutes, an “HWI533” message is issued by the active Core indicating that the inactive Core memory is being synchronized with the active Core memory.

  • Page 62: Nt5D12Aa Dual Dti/Pri (Ddp)

    Page 62 of 362 Replacing equipment 21 Check the status of the CNIs: STAT CNI 22 Switch Cores and exit the program: SCPU **** exit LD 135 NT5D12AA Dual DTI/PRI (DDP) Use this procedure to replace an NT5D12AA DDP card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 63 Replacing equipment Page 63 of 362 Remove cross connections at the MDF to the wall-mounted cross-connect terminal. Tag and disconnect cables from card. Rearrange Clock Controller cables, if required. WARNING Do NOT route Clock Controller cables connecting the Clock Controller and DDP card through the center of the cabinet past the power harness.

  • Page 64: Installing The Ddp Card

    Page 64 of 362 Replacing equipment Installing the DDP card Set the option switches on the DDP circuit pack before installation; see Table 2 below, where bold font indicates factory settings. Table 2 DDP general purpose switch settings Switch Description S9/S15 Switch Setting Framing mode off = ESF...

  • Page 65: Nt5D20 Iop/Cmdu

    Replacing equipment Page 65 of 362 ISDN PRI: Maintenance Run PRI/DTI Verification Test. Refer to the (553-2901-501). ISDN PRI: Maintenance Run PRI status check. Refer to the (553-2901-501) for the PRI verification tests, DDP self-test, PRI status check, and PRI start-up test. NT5D20 IOP/CMDU Use this procedure to replace an IOP/CMDU combination unit in a: •...
  • Page 66 Page 66 of 362 Replacing equipment Replacing the IOP/CMDU in a redundant system option Note: In redundant system Options 61C and 81C, the normal procedure is to replace the faulty IOP/CMDU on the inactive Core to allow uninterrupted call processing by the active Core. The Core that is processing calls is defined as active and the Core not processing calls is defined as inactive.
  • Page 67 Replacing equipment Page 67 of 362 Perform equipment data dump from the active Core (with a known good IOP/CMDU): LD 43 load LD 43 execute datadump and wait until “DATADUMP COMPLETE” and “DATABASE BACKUP COMPLETE” are displayed before exiting the program **** exit LD 43 Set the NORM/MAINT switch on the Call Processor (CP) card to...
  • Page 68 Page 68 of 362 Replacing equipment — Install the IOP/CMDU into its vacant card slot and lock the locking devices by pushing them gently towards the faceplate. — Set the ENB/DIS switch to ENB and observe the card LED during self-test.
  • Page 69 Replacing equipment Page 69 of 362 <y> to confirm quit <a> to reboot the system 12 Test the replacement IOP/CMDU: LD 137 to load the program DIS IOP to disable the IOP part of the IOP/CMDU TEST IOP to test the operation of the IOP part of the IOP/CMDU ENL IOP to enable the IOP part of the IOP/CMDU...
  • Page 70 Page 70 of 362 Replacing equipment 16 Verify CPU redundancy and CNI operation: LD 135 to load the program STAT CPU to get status of both CPUs STAT CNI to verify the operation of all CNI cards 17 Place the active CPU in the normal mode by setting the NORM/MAINT switch on the CP card to NORM.
  • Page 71 Replacing equipment Page 71 of 362 Replacing the IOP/CMDU in a single CPU system option Note: In a single CPU system Option, i.e. Option 51C, replacing the faulty IOP/CMDU will disrupt call processing. Check the status of the IOP/CMDU: LD 137 to load the program STAT to get the status of the IOP/CMDU...
  • Page 72 Page 72 of 362 Replacing equipment Installing the replacement IOP/CMDU into the IOP/CMDU slot: Set the ENB/DIS switch on the replacement IOP/CMDU to DIS. Install the IOP/CMDU into its vacant card slot and lock the locking devices by pushing them gently towards the faceplate. Set the ENB/DIS switch to ENB and observe the card LED during self-test.
  • Page 73 Replacing equipment Page 73 of 362 Note: . Refer to “Software installation tool reference” in Software Conversion Procedures (553-2001-320). Activate the software installation tool by inserting disk A1 from the software package into the IOP/CMDU. Press the MAN RST button on the CP card. Select the following options in sequence: <f>...

  • Page 74: Replacing The Nt6D63 Iop And The Nt6D64 Cmdu With The Nt5D20 Iop/Cmdu

    Page 74 of 362 Replacing equipment Replacing the NT6D63 IOP and the NT6D64 CMDU with the NT5D20 IOP/CMDU Use this procedure to replace a NT6D63 I/O Processor and a NT6D64 CMDU with an NT5D20 IOP/CMDU combination unit. This procedure is used when an IOP or a CMDU is faulty and you have to replace both the IOP and the CMDU with an IOP/CMDU.
  • Page 75 Replacing equipment Page 75 of 362 Replacing the IOP and the CMDU with the IOP/CMDU in a redundant system option Note: In redundant system Options 61C and 81C, the normal procedure is to replace the faulty IOP and CMDU on the inactive Core to allow uninterrupted call processing by the active Core.
  • Page 76 Page 76 of 362 Replacing equipment Perform equipment data dump from the active Core (with a known good IOP and CMDU): LD 43 load LD 43 execute datadump and wait until “DATADUMP COMPLETE” and “DATABASE BACKUP COMPLETE” are displayed before exiting the program. **** exit LD 43 Set the NORM/MAINT switch on the Call Processor (CP) card to...
  • Page 77 Replacing equipment Page 77 of 362 To remove the faulty CMDU: If there is a floppy disk in the CMDU you are replacing, remove the floppy disk. Set the power switch on the front of the CMDU to OFF (down). Wait at least 10 seconds, then unhook the locking devices on the CMDU and gently pull the unit out of the card cage.
  • Page 78 Page 78 of 362 Replacing equipment Note: Refer to “Software installation tool reference” in Software Conversion Procedures (553-2001-320). Activate the software installation tool by inserting disk A1 from the software package into the IOP/CMDU in the Core containing the replacement IOP/CMDU. Press the MAN RST button on the CP card in the Core containing the replacement IOP/CMDU.
  • Page 79 Replacing equipment Page 79 of 362 11 To place the system back in the redundant (normal) mode with automatic switchover capability. Perform the following three steps in uninterrupted sequence on the inactive Core (the Core with the replaced IOP/CMDU): Press and hold down the MAN RST button on the CP card of the inactive Core.
  • Page 80 Page 80 of 362 Replacing equipment 16 Check the CPUs and switch the call processing to the currently inactive CPU: LD 135 to load the program STAT CPU to get status of both CPUs SCPU to switch to currently inactive CPU and make it active STAT CPU to check the status of both CPUs again to verify...
  • Page 81 Replacing equipment Page 81 of 362 Perform equipment data dump if possible. If the IOP or the CMDU is faulty, a successful data dump may not be possible: LD 43 load LD 43 execute datadump and wait until “DATADUMP COMPLETE” and “DATABASE BACKUP COMPLETE”...
  • Page 82 Page 82 of 362 Replacing equipment Installing the replacement IOP/CMDU into the IOP/CMDU slot: Set the ENB/DIS switch on the replacement IOP/CMDU to DIS. Install the IOP/CMDU into slots 17, 18, and 19 in the NT5D21 Core/Network Module or slots 16, 17, and 18 in the NT9D11 Core/Network Module and NT6D60 Core Module.
  • Page 83 Replacing equipment Page 83 of 362 Note: . Refer to “Software installation tool reference” in Software Conversion Procedures (553-2001-320). Activate the software installation tool by inserting disk A1 from the software package into the IOP/CMDU. Press the MAN RST button on the CP card. Select the following options in sequence: <c>...

  • Page 84: Nt5D30Aa Dual Intergroup Switch (Digs) Card

    Page 84 of 362 Replacing equipment NT5D30AA Dual InterGroup Switch (DIGS) card Use this procedure to replace two QPC412 Intergroup Switch (IGS) cards with one new NT5D30 Dual Intergroup Switch (DIGS) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 85 Replacing equipment Page 85 of 362 If you need to switch CPUs: LD 135 to load the program STAT CPU to verify CPU status SCPU to switch CPUs (if necessary) **** to exit Check the clock status: LD 60 SSCK x (x= 0 or 1) The associated clock must be in STANDBY.
  • Page 86 Page 86 of 362 Replacing equipment Tag and disconnect cables 0 and 1 to the card you are removing. Unlock the locking devices on the cards; pull them out of the card cage. Installing equipment Set the ENB/DIS switch to DIS on the NT5D30 DIGS card. Insert the DIGS card: WARNING Insertion of the DIGS cards in the incorrect slot will have an effect on...

  • Page 87: Nt6D3903 Cpu/Network Module Card Cage

    Replacing equipment Page 87 of 362 Test the DIGS card: LD 45 NSIG If there is a problem, a CED system message is generated. **** to exit Switch clocks to the SCG (System Clock Generator) LD 39 SCLK to switch the clock **** to exit The DIGS card replacement procedure is complete.
  • Page 88 Page 88 of 362 Replacing equipment Removing equipment Disable the CPU: In a single-CPU system, set the ENB/DIS switch to DIS on the QPC580 CPU Interface (IF) Card. This will stop call processing. In a dual-CPU system, the CPU on the backplane you are replacing must be inactive: If you need to switch CPUs: LD 35...
  • Page 89 Replacing equipment Page 89 of 362 Table 4 Network loop codes Group/ Peripheral Loops shelf signaling card disabled/enabled 0 / 0 — 0 / 1 — If the multi disk unit (MDU) or floppy disk unit (FDU) is located in the module, unseat disks from the disk drives.
  • Page 90 Page 90 of 362 Replacing equipment Remove all cards from the module: Tag and disconnect cables to all faceplate connectors. Tag cards so they can be returned to the same slot. Remove cards. Disconnect cables, plugs, and wires from the rear of the module to the backplane: Remove the I/O safety panel by turning the screws on each side.
  • Page 91 Replacing equipment Page 91 of 362 Turn on power to the column or the module power supply: With AC power, set the main circuit breaker in the pedestal to ON (up). With DC power, set the breaker to ON (up) in the pedestal. Set the switch to ON (up) on the power supply in the module.

  • Page 92: Nt6D40, Nt6D41, Nt6D42, Power Supply Dc

    Page 92 of 362 Replacing equipment NT6D40, NT6D41, NT6D42, Power Supply DC Use this procedure to replace the following DC power supplies: • NT6D40 PE Supply DC • NT6D41 CE Power Supply DC • NT6D42 Ringing Generator DC CAUTION Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.

  • Page 93: Nt5D61 Input/Output Disk Unit With Cd-Rom (Iodu/C)

    Replacing equipment Page 93 of 362 NT5D61 Input/Output Disk Unit with CD-ROM (IODU/C) Use this procedure to replace a faulty IODU/C card with a new IODU/C card. WARNING Performing this procedure in a nonredundant system, such as 51C, will disrupt system operation. If possible, schedule the replacement at the lowest traffic time.

  • Page 94: Splitting The Cores

    Page 94 of 362 Replacing equipment When “DATADUMP COMPLETE” and “DATABASE BACKUP COMPLETE” appear on the terminal, enter **** to exit the program CAUTION If the data dump is not successful, do not continue; contact your technical support organization. A data dump problem must be corrected before proceeding.

  • Page 95: Replacing The Iodu/C In A Redundant System

    Replacing equipment Page 95 of 362 Verify that the IODU/C card you are replacing is on the inactive Core: LD 135 to load the program STAT CPU to check CPU status TEST CPU to test the CPU If the IODU/C you are replacing is on the inactive Core, proceed with step 5.
  • Page 96 Page 96 of 362 Replacing equipment With the Nortel side facing upward, slide the Security Device between the security device holder and the holder clip in the new IODU/C card. Do not bend the clip more than necessary when inserting the Security Device.
  • Page 97 At the Install menu, select <o> to copy the software from the active Core. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 98 Replacing equipment 10 Select <a> to confirm. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 99 Page 99 of 362 14 Select <a> to continue with the IOP-ROM upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...
  • Page 100 Page 100 of 362 Replacing equipment 16 Remove the diskette from the IODU/C and select <q> to quit and reload the system. 17 Select <y> to confirm quit 18 Select <a> to reboot the system. The system will automatically perform a sysload and system initialization during which several messages will appear on the system terminal.

  • Page 101: Replacing The Iodu/C In An Option 51C

    IODU/C card being replaced. Put the IODU/C being replaced into a static bag and box. With the Nortel side facing upward, slide the Security Device between the security device holder and the holder clip in the new IODU/C card. Do not bend the clip more than necessary when inserting the Security Device.
  • Page 102 10 At the Main Menu select <u> to go to the Install Menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 103 12 At the Install menu, select <b> to install software, database, CP-BOOTROM, and IOP-ROM. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 104 13 Select <a> to continue with the software upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 105 Replacing equipment Page 105 of 362 14 A Status Summary is displayed indicating what will be installed. Select <y> to confirm the start of installation. INSTALLATION STATUS SUMMARY Choice Option Status Comment from xxxx to xxxx SW: CD to disk SW: disk to ROM Database CP-BOOTROM...
  • Page 106 The terminal displays information about the software upgrade. 15 Select <a> to continue with software installation. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 107 17 Select <a> to continue with the ROM upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 108 IODU/C. Select <a> to install the customer database. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 109 21 Select <a> to continue with the CP-BOOTROM upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 110 22 Select <y> to begin installation of IOP-ROM upgrade. 23 Select <a> to continue with the IOP-ROM upgrade Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...

  • Page 111: Completing The Upgrade

    Page 111 of 362 27 Select <a> to reboot the system. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...

  • Page 112: Nt6D52 Rectifier -48 V/30 A

    Removing equipment Make sure power to the system is completely shut down by first placing all breakers on all Meridian 1 columns to OFF and then placing the AC BRKR switches on all rectifiers to OFF. This includes the AC BRKR switches on other rectifiers that may be connected to the system through another QBL15 Power Distribution Box (see Figure 10 on page 115).
  • Page 113 Replacing equipment Page 113 of 362 Tag the defective rectifier with a description of the failure symptoms and package it for return to a repair center. Installing equipment Position the replacement rectifier in the rack. Replace the rack mounting screws and the two sheet metal screws that secure the baffle assembly to the bottom of the rectifier.
  • Page 114 ± 100 mV dc. Set the CB0 breaker on the Meridian 1 column to OFF and then set the AC BRKR switch on the rectifier to OFF. 553-3001-520 Standard 16.00 April 2000...
  • Page 115 Replacing equipment Page 115 of 362 Disconnect the multimeter and follow normal power up procedure to restore the system to service. Figure 10 NT6D52 Rectifier and QBL15 Power/Battery Distribution Box connections QBL15 distribution box GND POS (+) positive bus NT0R72 rectifier To other rectifiers (note 1) #4 AWG red (note 2) –...

  • Page 116: Nt5D2103 Core/Network Card Cage

    Page 116 of 362 Replacing equipment NT5D2103 Core/Network Card Cage To replace a defective backplane in an NT5D21 Core/Network Module, you must replace the card cage. WARNING The following procedures describe card cage replacement for redundant systems such as 61C, and 81C. A single-CPU system, such as 51C, must be shut down to replace the card cage.
  • Page 117 Replacing equipment Page 117 of 362 The Call Processor (CP) Card must be inactive in the card cage you are replacing. Check the status of the CP cards: LD 135 STAT CPU determine which CP card is active If necessary, switch Cores: SCPU switch Cores ****...
  • Page 118 Page 118 of 362 Replacing equipment Note: If the PRI/DTI cards service loops that cannot be out of service, move the cards to a different module and reenable them. Set the ENB/DIS switch to DIS on all CNI cards and the IODV/C in the card cage you are replacing.
  • Page 119 Replacing equipment Page 119 of 362 Follow the appropriate step below to turn off power to the module: With AC power, set the main circuit breaker for the column to OFF (down) in the rear of the pedestal. WARNING Due to hazardous voltage in AC-powered systems, power to the entire column must be shut down.
  • Page 120 Page 120 of 362 Replacing equipment 10 Follow the steps below to disengage the module: Remove the two mounting screws that secure the rear of the card cage to the module. Remove the front trim panels on each side of the card cage. Remove the three mounting screws that secure the front of the card cage to the bottom of the module.
  • Page 121 Replacing equipment Page 121 of 362 Note: Check the orientation of the connector. Looking at it from the rear of the card cage, the upper left corner pin should be empty (no wire) and the lower right corner pin should have a wire installed. The green wire should be up.
  • Page 122 Page 122 of 362 Replacing equipment Slide the new card cage about halfway into the module. Hold the card cage firmly while the ground and power connections are attached at the rear of the module: Attach the system monitor ribbon cables (J1 goes down to the pedestal, J2 goes up the column).
  • Page 123 Replacing equipment Page 123 of 362 Replace the trim panels on both sides of the card cage. Install the module power supply in the slot labeled “CE pwr sup” in the Core/Network card cage. Perform a hardware sanity check: Turn on power to the module: With AC power, set the main circuit breaker to ON (up) in the rear of the pedestal.
  • Page 124 Page 124 of 362 Replacing equipment Install the module power supply in the slot labeled “CE pwr sup” in the Core/Network card cage.Follow the steps below to reconnect cables to the backplane: Reconnect all cables to the backplane connectors. CAUTION If you try to insert the cable connector at an angle, pins may be bent or broken.
  • Page 125 Replacing equipment Page 125 of 362 11 Follow the appropriate steps below to connect the clock controller cables: For a QPC471 Clock Controller card, connect the NT8D79 cables from the primary or secondary reference to the faceplate of the clock controller card.
  • Page 126 Page 126 of 362 Replacing equipment TEST CNI c s test each configured CNI on the inactive side **** exit LD 135 17 Set the ENB/DIS switch to ENB on the clock controller card. 18 Set the ENB/DIS switch to ENB on all CNI cards. 19 Press and release the MAN RST button on the CP card in the new card cage.
  • Page 127 Replacing equipment Page 127 of 362 22 Get the status of the CP cards and memories, and of the CNIs: STAT CPU get the status of both Cores STAT CNI get the status of all configured CNIs **** exit LD 135 23 Synchronize the disk drives: LD 137 SYNC...
  • Page 128 Page 128 of 362 Replacing equipment 26 Software enable, from the active side, the clock controller and PRI/DTI cards: Enable the clock controller card: LD 60 ENL CC x TRCK aaa if necessary, set tracking Enable the PRI/DTI cards: ENLL loop **** exit LD 60 27 Follow the appropriate steps below to reinstall and check the system...

  • Page 129: Nt6D6003 Core Bus Terminator Card

    Replacing equipment Page 129 of 362 NT6D6003 Core Bus Terminator Card Use this procedure to replace a Core Bus Terminator (CBT) card. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area. Note: The CBT is not required with NT5D21 Core/Network Modules.

  • Page 130: Nt6D63 I/O Processor Card

    Page 130 of 362 Replacing equipment Tag defective equipment with a description of the problem and package it for return to a repair center. NT6D63 I/O Processor Card Use this procedure to replace an I/O Processor (IOP) card in a: •...
  • Page 131 Replacing equipment Page 131 of 362 Check the status of the system CPUs, the disk drives synchronization, and perform data dump as preliminary steps in the replacement procedure: Identify the faulty IOP card in the system and check if the faulty card is in the active or inactive Core by checking the status of both CPU: LD 135 to load the program...
  • Page 132 Page 132 of 362 Replacing equipment Set the NORM/MAINT switch on the Call Processor (CP) card to MAINT on the active Core. Set the ENB/DIS switch on all CNI cards on the inactive Core to DIS. Perform the following three steps on the inactive Core in an uninterrupted sequence: Press and hold down the MAN RST button on the CP card on the inactive Core.
  • Page 133 Replacing equipment Page 133 of 362 10 Enable the IOP and check its status: LD 137 to load the program ENL IOP to enable the IOP STAT IOP to check the IOP status 11 To update the ROM on the replacement IOP card to the software currently residing on the CMDU hard disk: Note: Refer to “Software installation tool reference”...
  • Page 134 Page 134 of 362 Replacing equipment 12 Test the replacement IOP card and the CMDU: LD 137 to load the program DIS IOP to disable the IOP card TEST IOP to test the IOP operation ENL IOP to enable the IOP TEST CMDU n to test the CMDU(s) operation where n is the inactive Core CMDU...
  • Page 135 Replacing equipment Page 135 of 362 18 Check the CPUs and switch the call processing to the currently inactive CPU: LD 135 to load the program STAT CPU to get status of both CPUs SCPU to switch to currently inactive CPU and make it active STAT CPU to check the status of both CPUs again to verify...

  • Page 136: Nt6D64 Core Multi Drive Unit

    Page 136 of 362 Replacing equipment NT6D64 Core Multi Drive Unit Use this procedure to replace the Core Multi Drive Unit (CMDU). See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 137 Replacing equipment Page 137 of 362 Wait at least 10 seconds, then unhook the locking devices on the CMDU and gently pull the unit out of the card cage. CAUTION You must wait at least 10 seconds before you remove the CMDU from the card cage.

  • Page 138: Nt6D65 And Ntrb34 Core To Network Interface Cards

    Page 138 of 362 Replacing equipment NT6D65 and NTRB34 Core to Network Interface Cards Use this procedure to replace the Core to Network Interface (CNI) or Core to Network Interface 3 (CNI-3) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 139 Replacing equipment Page 139 of 362 CNI s p g add group(s) to new slot **** exit LD 17 LD 43 datadump the new configuration **** exit LD 43 • Insert the CNI card in the new slot. Move the cables to the shrouds on the backplane to the connectors for the new slot.
  • Page 140 Page 140 of 362 Replacing equipment Installing equipment Set the ENB/DIS switch to DIS on the replacement card. Insert the replacement card into the vacated slot and hook the locking devices. Set the ENB/DIS switch to ENB on the replacement card. Set the NORM/MAINT switch to NORM on the active CP card.

  • Page 141: Nt6D66 Call Processor Card

    Replacing equipment Page 141 of 362 NT6D66 Call Processor Card Use this procedure to replace an NT6D66 Call Processor (CP) card. WARNING Replacing the CP in a nonredundant system, such as 51C, will disrupt system operation. If possible, schedule the replacement at the lowest traffic time (after midnight).
  • Page 142 Page 142 of 362 Replacing equipment There should be an SDI TTY connection at J30, which should remain connected at all times to monitor system status. The CP card you are replacing must be on the inactive Core. Check the status of the CP cards: LD 135 STAT CPU...
  • Page 143 At the Main Menu select <u> to go to the Install Menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 144 Page 144 of 362 Replacing equipment Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 145 Replacing equipment Page 145 of 362 LD 135 STAT CPU If there are CCED messages generated by the STAT CPU command on the replacement CP card, set the NORM/MAINT switch to MAINT, press the reload (MAN RST) button and set the NORM/MAINT switch back to NORM.

  • Page 146: Nt7D10 Power Distribution Unit Dc

    Page 146 of 362 Replacing equipment Tag defective equipment with a description of the problem and package it for return to a repair center. Note: Repeat the process for the replacement of the second CP card (if applicable) by moving the terminal cable to the J25 port on the I/O panel of the other Core or Core/Network Module and continuing the procedure starting at step 2 of the “Removing equipment”...
  • Page 147 Replacing equipment Page 147 of 362 Figure 11 NT7D10 Power Distribution Unit DC System monitor Circuit breaker bank Ground lugs Field wiring terminal 553-3039 (below PDU) — Turn the screws on the front of the unit counterclockwise and pull the unit forward several inches so the connector on the rear disengages.
  • Page 148 Page 148 of 362 Replacing equipment Note: To disconnect the power plug, you must press a latch trip on the front and rear of the plug. You may need to use a screwdriver blade against the latch trip on the front of the plug. Tag and disconnect cables to the NT8D22 System Monitor.
  • Page 149 Replacing equipment Page 149 of 362 Remove the field wiring terminal block: Remove the cover over the field wiring terminal block. Locate the frame ground wire that runs from the field wiring terminal block to the frame ground bolt inside the pedestal. Disconnect this wire at the terminal block.
  • Page 150 Page 150 of 362 Replacing equipment Reseat the blower unit: Lift the unit slightly and slide it into the pedestal glides. Set the toggle switch to ON (right). Tighten the screws on the front of the unit. Insert the system monitor card into the PDU. Tighten the screws on the card.

  • Page 151: Nt8D06, Nt8D21, Nt8D29 Power Supply Ac

    Replacing equipment Page 151 of 362 NT8D06, NT8D21, NT8D29 Power Supply AC Use this procedure to replace AC power supplies: • NT8D06 PE Power Supply AC • NT8D21 Ringing Generator AC • NT8D29 CE Power Supply AC WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 152 Page 152 of 362 Replacing equipment Figure 13 Dual circuit breaker and associated module power supplies PE Module Module power supply MPDU Ringing generator Cont PE Pwr Sup Rng Gen Intelligent Superloop Peripheral Equipment Shelf 553-5376 Installing equipment Insert the replacement power supply into the vacated slot and hook the locking devices.

  • Page 153: Nt7D15 System Monitor

    Replacing equipment Page 153 of 362 Tag defective equipment with a description of the problem and package it for return to a repair center. NT7D15 System Monitor The NT7D15 System Monitor, used only in Option 21A, attaches to the rear of the backplane in the NT8D11 CE/PE Module.

  • Page 154: Nt7D67Cb Power Distribution Unit Dc

    Page 154 of 362 Replacing equipment Installing equipment Plug the replacement card into the vacated connector (the connector closest to the right) on the backplane before the cables are connected. CAUTION Cables must be disconnected when the card is installed. When you connect the cables, you must follow the order given or the system will shut down.
  • Page 155 Replacing equipment Page 155 of 362 Unseat the blower unit in the front of the pedestal: — Remove the grill on the front of the pedestal. Set the toggle switch on the front of the unit to OFF (left). — Turn the screws on the front of the unit counterclockwise and pull it forward several inches (you will see the L-bracket on the rear of the unit) until the connector disengages from the rear of the PDU.

  • Page 156: Standard 16.00 April

    Page 156 of 362 Replacing equipment Disconnect cables that run between the module above the pedestal (module 0) and the PDU: Remove the rear cover on the module. Remove the I/O safety panel over the backplane in the module. Disconnect the system monitor ribbon cable from module 0. Disconnect the large orange power connector (J1) from the PDU.
  • Page 157 Replacing equipment Page 157 of 362 Figure 15 Field wiring terminals in the NT7D67CB PDU NT7D67CB FLTR / PWR DIST BATRTN BATRTN LRTN UNIT ASSY BLO CB0 CB1 553-5800 11 Remove the PDU: Note: When a system is shipped, a set of screws secures the leveling bracket at the rear of the PDU to protect against vibration during transit.
  • Page 158 Page 158 of 362 Replacing equipment Installing equipment Install the replacement PDU: Connect the frame ground wire from the PDU to the frame ground bolt inside the pedestal. Guide the connector for the power cable through the hole in the top of the pedestal (do not allow the PDU to drop).
  • Page 159 Replacing equipment Page 159 of 362 Reconnect all external wiring to the field wiring terminal block on the PDU: Note: All wiring to the PDU must be routed within the cable-tie saddles and under the cable restraint bar at the base of the pedestal. —...
  • Page 160 Page 160 of 362 Replacing equipment 10 One at a time starting with the breaker for the blower unit, set the circuit breakers on the PDU to ON (up). Make sure the green LED lights on the power supply unit(s) in each module. Note: On initial power up the blower may rotate slower than expected.

  • Page 161: Nt7R51 Local Carrier Interface Card

    Replacing equipment Page 161 of 362 NT7R51 Local Carrier Interface Card Use this procedure to replace a Local Carrier Interface card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...

  • Page 162: Nt7R52 Remote Carrier Interface Card

    Page 162 of 362 Replacing equipment Set the replacement card ENL/DIS switch to ENL, the Local Carrier Interface card automatically starts the self-test 10 Observe the red LED on the front panel during self-test. If it flashes three times and stays on, it has passed the test. Go to step 11. If it does not flash three times and then stays on, it has failed the test.
  • Page 163 Replacing equipment Page 163 of 362 Pull the card out of the IPE module or cabinet and place it into an antistatic bag away from the work area. Hold the replacement card by the card locking devices and insert it partially into the card guides in the module.

  • Page 164: Nt8D01 Controller Card

    Page 164 of 362 Replacing equipment NT8D01 Controller Card Use this procedure to replace a controller card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...
  • Page 165 Replacing equipment Page 165 of 362 — With DC power, set the switch on the module power supply to ON (up). Watch the controller card as it runs a series of self-tests: — During the tests, the maintenance display on the card shows the code for each test running (see “HEX”...

  • Page 166: Nt8D02, Nt8D03, Nt8D09, Nt8D14, Nt8D15, Nt8D16 Intelligent Peripheral Equipment Card

    Page 166 of 362 Replacing equipment NT8D02, NT8D03, NT8D09, NT8D14, NT8D15, NT8D16 Intelligent Peripheral Equipment Card Use this procedure to replace the following intelligent peripheral equipment (IPE) cards: • NT5D11 Line Side T1 • NT5D60AA CLASS Modem Card • NT5K02 Flexible Analog Line Card •...
  • Page 167 Replacing equipment Page 167 of 362 • NT8D14 Universal Trunk Card • NT8D15 E&M Trunk Card • NT8D16 Digitone Receiver (DTR) Card See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 168 Page 168 of 362 Replacing equipment Note: When IPE cards are installed, the red LED on the faceplate remains lit for 2 to 5 seconds as a self-test runs. If the self-test completes successfully, the LED flashes three times and remains lit until the card is configured and enabled in software, then the LED goes out.

  • Page 169: Nt8D04 Superloop Network Card, Qpc414 Network Card

    Replacing equipment Page 169 of 362 NT8D04 Superloop Network Card, QPC414 Network Card Use this procedure to replace a superloop network card or network card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 170 Page 170 of 362 Replacing equipment Installing equipment Set the ENB/DIS switch to DIS on the replacement card. Note: On a replacement QPC414, set jumpers the same as on the card you removed. If there is a vintage change, be sure to check Circuit Card: Installation and Testing (553-3001-211) for any differences.

  • Page 171: Nt8D17 Conference/Tds Card

    Replacing equipment Page 171 of 362 NT8D17 Conference/TDS Card The conference/TDS card provides conference functions on one loop and both tone and digit switch (TDS) and multifrequency sender (MFS) functions on a second loop. Use this procedure to replace a conference/TDS card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 172 Page 172 of 362 Replacing equipment Insert the replacement card into the vacated slot and hook the locking devices. Both red LEDs should flash three times and remain lit if the card is good. Set the ENB/DIS switch to ENB on the replacement card. Software enable the card: ENLX loop This prompt is available in LD 34, LD 38, and...

  • Page 173: Nt8D18 Network/Dtr Card

    Replacing equipment Page 173 of 362 NT8D18 Network/DTR Card The network/DTR card provides network and peripheral controller functions along with Digitone receiver capability. Use this procedure to replace a network/DTR card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.

  • Page 174: Nt8D19 Memory/Peripheral Signaling Card

    Page 174 of 362 Replacing equipment Installing equipment Set the ENB/DIS switch to DIS on the replacement card. Insert the replacement card into the vacated slot and hook the locking devices. Set the ENB/DIS switch to ENB on the replacement card. Software enable the superloop: ENLL 28 When the process is complete, you will receive a system response.
  • Page 175 Replacing equipment Page 175 of 362 WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area. CAUTION Call processing will stop when the NT8D19 card is removed. Unhook the locking devices on the memory/peripheral signaling card;...

  • Page 176: Nt8D22 System Monitor

    Page 176 of 362 Replacing equipment NT8D22 System Monitor Use this procedure to replace the system monitor. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. Removing equipment CAUTION Be sure to follow the steps in this procedure in the order shown.
  • Page 177 Replacing equipment Page 177 of 362 Loosen the two screws on the card and pull it out of the slot. Note: If a slave is removed, the master considers that slave and all slaves with a higher address as disabled. For example, if the slave designated “XSM 2”...

  • Page 178: Nt8D41 Dual Or Quad Port Serial Data Interface Card

    Page 178 of 362 Replacing equipment NT8D41 Dual or Quad Port Serial Data Interface card The serial data interface (SDI) paddle board attaches to the rear of the backplane in an NT8D11 CE/PE or NT6D39 CPU/Network Module. Use this procedure to replace an SDI paddle board. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 179 Replacing equipment Page 179 of 362 Tag and disconnect cables to the paddle board you are removing (connector J1 for port 1, connector J2 for port 2). Pull the paddle board out of the connector on the backplane. Installing equipment Set the ENB/DIS switch to the disable position (down) on the replacement paddle board.

  • Page 180: Nt8D46Ac Thermostat Harness

    Page 180 of 362 Replacing equipment NT8D46AC Thermostat Harness Use this procedure to replace the thermostat harness located in the top cap of each column. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 181 Replacing equipment Page 181 of 362 — Use a 5/16” socket wrench to remove the six bolts that secure the top cap and perforated panel (see Figure 18). Lift off the top cap only. Figure 17 Air exhaust grills on the top cap Top cap Air exhaust grill Air exhaust grill...
  • Page 182 Page 182 of 362 Replacing equipment Remove the thermostat harness: Note: The column LED and LED wiring are part of the thermostat harness. Pull the LED ring away from the LED mounting bracket (see Figure 19). You may need to loosen it with a standard screwdriver. Figure 19 Mounting for the column LED Mounting...
  • Page 183 Replacing equipment Page 183 of 362 Remove the screws (two each) that secure the thermostats. Remove the thermostats and wiring (see Figure 20). Figure 20 Thermostat harness To connector J2 Thermostats Thermostat Perforated wiring panel (bottom) Grommet Front 553-5884 Installing equipment Install the replacement thermostat harness: Position the replacement thermostats and install the screws.
  • Page 184 Page 184 of 362 Replacing equipment Figure 21 Routing the thermostat harness from the top cap Cable well Orange connector Top of module Bracket View at rear of module 553-5889 Figure 22 Installing the column LED Collar Collar ring (back) (front) Mounting bracket...
  • Page 185 Replacing equipment Page 185 of 362 Reconnect power to the top cap: Connect the ribbon cable connector to connector J2 on the backplane. Line up the alignment tab on the connector and snap on the pin headers to position the connector correctly (see Figure 23). Figure 23 Aligning the thermostat harness connector Alignment tab...

  • Page 186: Nt8D46Am, Nt8D46Dc Air Probe Harness

    Page 186 of 362 Replacing equipment NT8D46AM, NT8D46DC Air Probe Harness Use this procedure to replace the air probe harness located in the top cap of each column. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 187 Replacing equipment Page 187 of 362 Figure 25 Top cap assembly Mounting bolts Top cap Front of column Screw for LED bracket on perforated panel 553-3038 Hardware replacement...
  • Page 188 Page 188 of 362 Replacing equipment Remove the air probe harness: Remove the screw that secures the perforated panel at the LED mounting bracket. Slide the perforated panel slightly to the left (looking at it from the rear of the column). Lift the panel and turn it over. Pull the air probe out of the clip holder (see Figure 26).
  • Page 189 Replacing equipment Page 189 of 362 Installing equipment Install the replacement air probe harness: — Gently push the air probe into the clip holder. — Route the air probe wiring on the perforated panel. At the rear edge of the panel, route the wires with wiring for the thermostat harness. Secure loose cabling to the perforated panel with cable ties.

  • Page 190: Nt8D52Ab, Nt8D52Dd Pedestal Blower Unit

    Page 190 of 362 Replacing equipment — Replace the I/O safety panel. — Replace the rear cover on the module. Tag defective equipment with a description of the problem and package it for return to a repair center. NT8D52AB, NT8D52DD Pedestal Blower Unit Use this procedure to replace a blower unit.
  • Page 191 Replacing equipment Page 191 of 362 — With DC power, set the toggle switch on the front of the unit to OFF (left). WARNING Impellers in the blower unit do not stop instantly when the power is turned off. Wait two full minutes before you remove the unit. Loosen the two screws on the front of the blower unit by turning them counterclockwise.

  • Page 192: Nt8D53Ca Power Distribution Unit Ac

    Page 192 of 362 Replacing equipment NT8D53CA Power Distribution Unit AC Use this procedure to replace the power distribution unit (PDU) for AC-powered systems. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 193 Replacing equipment Page 193 of 362 Tag and disconnect wiring to the LRTN, GND, L2, and L1 connections on the right side of the field wiring terminal (see Figure 31). Push all the wires down into the empty area under the pedestal. CAUTION Label wires carefully.
  • Page 194 Page 194 of 362 Replacing equipment Note: To disconnect the power plug, you must press a latch trip on the front and rear of the plug. You may need to use a screwdriver blade against the latch trip on the front of the plug. Remove the six screws that position the PDU.

  • Page 195: Nt8D53Ad Power Distribution Unit

    Replacing equipment Page 195 of 362 NT8D53AD Power Distribution Unit Use this procedure to replace the power distribution unit (PDU); used in Option 21A. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 196 Page 196 of 362 Replacing equipment Note: To disconnect the power plug, you must press a latch trip on the front and rear of the plug. You may need to use a screwdriver blade against the latch trip on the front of the plug. Remove the six screws that position the PDU and lift the unit out of the pedestal.

  • Page 197: Nt8D56Aa, Nt8D56Ac, Nt8D57 Module Power Distribution Unit

    Replacing equipment Page 197 of 362 Reconnect the power cable from the pedestal to the module: Attach the power plug at connector J1. Replace the I/O safety panel. Replace the rear cover on the module. Position the replacement panel and replace the screws. Plug the power cable into the external outlet.
  • Page 198 Page 198 of 362 Replacing equipment Removing equipment Remove the rear grill on the column pedestal. Set the main circuit breaker to OFF (down). CAUTION Shutting off the main circuit breaker disables the entire column. Remove the I/O safety panel over the backplane. Tag and disconnect the power plugs to the MPDU.

  • Page 199: Nt8D1103 Ce/Pe Module Card Cage

    Replacing equipment Page 199 of 362 Reinsert the power supply and hook the locking devices. Position the metal plate in front of the MPDU and install the mounting screw in each corner. Connect the power plugs to the rear of the MPDU. Position the I/O safety panel.
  • Page 200 Page 200 of 362 Replacing equipment — With DC power, set the switch on the NT6D43 CE/PE Power Supply to OFF (down). Set the circuit breaker for just this module to OFF (down) in the rear of the pedestal. (All other modules in the column retain power.) Remove the NT8D22 System Monitor in the rear of the pedestal.
  • Page 201 Replacing equipment Page 201 of 362 Install the mounting screws at the rear of the card cage. Reconnect cables, plugs, and wires from the rear of the module to the backplane: Connect all cables from the interior of the I/O assembly to the backplane.

  • Page 202: Nt8D1303 Pe Module Card Cage

    Page 202 of 362 Replacing equipment NT8D1303 PE Module Card Cage To replace a defective backplane in an NT8D13 Peripheral Equipment Module, you must replace the card cage. Use this procedure to replace the PE Module card cage. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 203 Replacing equipment Page 203 of 362 Remove the NT8D22 System Monitor in the rear of the pedestal. (Do not turn off the blower unit in the front of the pedestal.) Note: If this is the master system monitor, disconnect the RJ11 cables before you pull the system monitor out of the pedestal.
  • Page 204 Page 204 of 362 Replacing equipment Reconnect cables, plugs, and wires from the module to the backplane: Connect all cables from the interior of the I/O assembly to the backplane. Connect all plugs, wires, and cables to the backplane. Position the I/O safety panel. Tighten the screws. Return cards to their slots.

  • Page 205: Nt8D3403 Cpu Module Card Cage

    Replacing equipment Page 205 of 362 NT8D3403 CPU Module Card Cage To replace a defective backplane in an NT8D34 CPU Module, you must replace the card cage. Use this procedure to replace the CPU Module card cage. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area.
  • Page 206 Page 206 of 362 Replacing equipment If the multi disk unit (MDU) or floppy disk unit (FDU) is located in the module, move the unit to the other CPU module: Remove floppy disks from the disk drives. Tag and disconnect cables to the unit. Unhook the locking devices on the unit;...
  • Page 207 Replacing equipment Page 207 of 362 Note: If this is the master system monitor, disconnect the RJ11 cables before you pull the system monitor out of the pedestal. CAUTION If the system monitor is not removed, the system may shut down. Remove all cards from the module: Tag and disconnect cables to all faceplate connectors.
  • Page 208 Page 208 of 362 Replacing equipment Reconnect cables, plugs, and wires from the rear of the module to the backplane: Connect all cables from the interior of the I/O assembly to the backplane. Position the I/O safety panel. Tighten the screws. Return cards to their slots.

  • Page 209: Nt8D3503/Nt8D3507 Network Module Card Cage

    Replacing equipment Page 209 of 362 NT8D3503/NT8D3507 Network Module Card Cage The NT8D3503 Network Module Card Cage uses BTUs, however, the NT8D3507 Network Module Card Cage does not use BTUs, it uses hybrid terminators that are an integral part of the backplane. To replace a defective backplane in an NT8D35 Network Module, you must replace the card cage.
  • Page 210 Page 210 of 362 Replacing equipment Table 6 Option 81C NTND95AA cable connections to 3PE cards Network Connector Connector Cable label group housing position connector CPU1-CNI-12A to 3PE-GRP0/1-J3 Group 0 CPU1-CNI-12C to 3PE-GRP0/1-J4 Group 0 CPU1-CNI-12D to 3PE-GRP1/1-J3 Groups 1 & 2 CPU1-CNI-12F to 3PE-GRP1/1-J4 Groups 1 &...
  • Page 211 Replacing equipment Page 211 of 362 Table 7 Extender codes Extender number From CPU 0 Network Group 0 CPU 0 Network Group 1 CPU 0 Network Group 2 CPU 0 Network Group 3 CPU 0 Network Group 4 CPU 1 Network Group 0 CPU 1 Network Group 1...
  • Page 212 Page 212 of 362 Replacing equipment WARNING Due to hazardous voltage in AC-powered systems, power to the entire column must be shut down. This shuts down all functions in the column. — With DC power, set the switch on the NT6D41 CE Power Supply to OFF (down).
  • Page 213 Replacing equipment Page 213 of 362 10 Remove the front cover plates on both sides of the card cage. 11 Remove the three mounting screws that secure the front of the card cage to the bottom of the module. Pull the card cage out of the module. Installing equipment Slide the replacement card cage into position in the module.
  • Page 214 Page 214 of 362 Replacing equipment Software enable the following: Enable the 3PE by enabling the associated SBE: LD 35 (or LD 135 for Option 81 or 81C) ENL EXT xxx ENL CNI core slot port **** Enable the peripheral signaling card: LD 32 ENPS x ****...

  • Page 215: Nt8D3703 Ipe Module Card Cage

    Replacing equipment Page 215 of 362 NT8D3703 IPE Module Card Cage To replace a defective backplane in an NT8D37 IPE Module, you must replace the card cage. Use this procedure to replace the IPE Module card cage. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 216 Page 216 of 362 Replacing equipment Remove the NT8D22 System Monitor in the rear of the pedestal. (Do not turn off the blower unit in the front of the pedestal.) Note: If this is the master system monitor, disconnect the RJ11 cables before you pull the system monitor out of the pedestal.
  • Page 217 Replacing equipment Page 217 of 362 Reconnect cables, plugs, and wires from the rear of the module to the backplane: Connect all cables from the interior of the I/O assembly to the backplane. Connect all plugs, wires, and cables to the backplane. Position the I/O safety panel.

  • Page 218: Nt8D33 Small Systems Multi Disk Unit

    Page 218 of 362 Replacing equipment NT8D33 Small Systems Multi Disk Unit Use this procedure to replace the small systems multi disk unit (SMDU). See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 219 Replacing equipment Page 219 of 362 Installing equipment Insert the replacement SMDU into the vacated slot and hook the locking devices. Connect the cable(s) to the faceplate of the SMDU. Install the floppy disks in the replacement SMDU. Set the ENB/DIS switch to ENB on the EMSI card. Restore data from the floppy disks to the hard disk.

  • Page 220: Replacing Nt9D19 68040 Call Processor (Cp) Cards In Systems Equipped With Nt5D61 Iodu/C Cards

    Page 220 of 362 Replacing equipment Replacing NT9D19 68040 Call Processor (CP) Cards in systems equipped with NT5D61 IODU/C cards Use this procedure to replace an NT9D19 68040 Call Processor (CP) card in systems equipped with NT5D61 IODU/C cards. For systems equipped with NT5D20 IOP/CMDU cards or NT6D63 IOP and NT6D64 CMDU cards, refer to “NT9D19 68040 Call Processor (CP) card”...
  • Page 221 Replacing equipment Page 221 of 362 Note: If you are using only one terminal or a switch box, switch the connection from Core to Core as needed. The CP card you are replacing must be in the inactive Core. Check the status of the NT9D19 Call Processor cards: LD 135 STAT CPU...
  • Page 222 At the Main Menu select <u> to go to the Install Menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 223 Replacing equipment Page 223 of 362 <y> to continue installation <a> to continue with ROM upgrade <cr> to return to the Install Menu At the Install Menu, select the following options in sequence <e> to install CP-BOOTROM <y> to start installation <y>...
  • Page 224 Page 224 of 362 Replacing equipment 13 While holding down the MAN RST button, set the NORM/MAINT switch on the same CP card to NORM. 14 Enable all CNI switches in the inactive Core. 15 Release the MAN RST button. 16 Set the CP card in the active Core to NORM.

  • Page 225: Nt9D19 68040 Call Processor (Cp) Card

    Replacing equipment Page 225 of 362 21 Test the CPU. TEST CPU 22 Check the status of the CNIs: STAT CNI 23 Switch Cores and exit the program: SCPU **** exit LD 135 NT9D19 68040 Call Processor (CP) card Use this procedure to replace an NT9D19 68040 Call Processor (CP) card in systems equipped with NT5D20 IOP/CMDU cards or NT6D63 IOP and NT6D64 CMDU cards.
  • Page 226 Page 226 of 362 Replacing equipment CAUTION At some point in this procedure, you will be required to warm start your system, causing a momentary interruption in call processing. Removing equipment To access the Core during the replacement procedure, connect a terminal to the J25 port on the I/O panel in the Core Module or Core/Network Module for the CP card you are replacing.
  • Page 227 Replacing equipment Page 227 of 362 Installing equipment Set the NORM/MAINT switch to MAINT on the replacement card. Insert disk A1 into the IOP/CMDU or CMDU. Remove the current CP card and put it in a static bag and box. Ensure the NORM/MAINT switch is set to MAINT, and insert the CP replacement card into its vacated slot and hook the locking devices.
  • Page 228 Page 228 of 362 Replacing equipment Note: The system will reboot. Wait for the “INI” and “DONE” messages to display before continuing. It will take at least 70 seconds between the “DONE” and “INI” messages. After the system initialization has finished (INI messages are no longer displayed on the system terminal), check for dial tone on a telephone set.
  • Page 229 Replacing equipment Page 229 of 362 17 If there are CCED messages generated by the STAT CPU command on the replacement CP card, set the NORM/MAINT switch to MAINT, press the reload (MAN RST) button and set the NORM/MAINT switch back to NORM.

  • Page 230: Nt9D34 Enhanced Mass Storage Interface Card

    Page 230 of 362 Replacing equipment NT9D34 Enhanced Mass Storage Interface Card Use this procedure to replace an enhanced mass storage interface (EMSI) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 231 Replacing equipment Page 231 of 362 Tag and disconnect the cable(s) to the card you are removing. Unhook the locking devices on the card; pull it out of the card cage. Remove the screw that secures the QMM42 Data Cartridge. Gently unplug the cartridge from the connectors on the component side of the EMSI card.
  • Page 232 Page 232 of 362 Replacing equipment Test the EMSI card: LD 37 MSI 0 If there is a problem, an IOD system message is generated and the red LED lights on the faceplate of the card. If there is no problem, exit LD 37: **** Restore the current data configuration: LD 43...

  • Page 233: Ntbk51Aa Downloadable D-Channel Daughterboard

    Remove the DDP and DDCH. Installing the DDCH Daughterboard Note 1: Test procedures require a 24-hour minimum bit error-rate testing before being used. Refer to the Nortel Networks technical publication (NTP), ISDN PRI Description and Administration (553-2901-100) for these procedures.
  • Page 234 Page 234 of 362 Replacing equipment Set the address for the DDCH; refer to Table 9 for DCH mode and address select switch settings. If a DDCH is present on a DDP card then an external D-Channel should NOT be connected to JC. If a DDCH is present, the LED “DCH”...
  • Page 235 Note 1: The maximum number of DCHI, MSDL, and DDCH devices in the system is 16. The Device Addresses are equivalent to the MSDL DNUM designations. For programming information on the MSDL, refer to the Nortel Networks technical publications (NTPs) Multi-purpose Serial Data Link description 553-3001-195 and X11 input/output guide .

  • Page 236: Ntnd01 Integrated Cpu/Memory Card

    Page 236 of 362 Replacing equipment NTND01 Integrated CPU/Memory Card Use this procedure to replace the integrated CPU/memory (ICM) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...

  • Page 237: Ntnd02 Misc/Sdi/Peripheral Signaling Card

    Replacing equipment Page 237 of 362 Installing equipment Install the ROM card on the replacement ICM card: Plug the ROM card into the pin connector. Install the screw and washer at each corner of the ROM card. Insert the replacement ICM card into the vacated slot and hook the locking devices.
  • Page 238 Page 238 of 362 Replacing equipment Removing equipment Software disable each serial data interface (SDI) port configured on the MSPS card: LD 37 DIS TTY x “x” is the number of the interface device attached to the port Set the ENB/DIS switch to DIS. Disconnect the cable to the SDI connector from the faceplate of the card.

  • Page 239: Ntnd08, Qpc939 Rom Card

    Replacing equipment Page 239 of 362 Press the initialize (INIT) button on the NTND01 ICM Card to activate a clean initialization. Software enable and test each configured port on the MSPS card: LD 37 ENL TTY x TTY x The response should be: ABCDEFGHIJKLMNOPQRSTUVWXYZ 0123456789"#$%*!&()<>-.:,.? READY FOR INPUT Anything entered on the keyboard will be echoed until END is input.
  • Page 240 Page 240 of 362 Replacing equipment Removing equipment To replace the ROM card you must disable and remove the function card. Disable the function card by disabling the associated QPC580 CPU Interface (IF) Card. This CPU must be inactive. If you need to switch CPUs: LD 35 SCPU Set the NORM/MAINT switch to MAINT on the active interface...

  • Page 241: Ntnd09, Qpc583 Memory Card

    Replacing equipment Page 241 of 362 Test the CPU: TCPU SCPU — If there is a problem, a CED system message is generated. — If there is no problem, exit LD 35: **** Tag defective equipment with a description of the problem and package it for return to a repair center.
  • Page 242 Page 242 of 362 Replacing equipment Removing equipment Software disable the memory card: The associated CPU must be inactive. If you need to switch CPUs: LD 35 SCPU All memory cards on this CPU must be disabled before the defective memory card is removed.

  • Page 243: Ntnd10, Qpc581 Changeover And Memory Arbitrator Card

    Replacing equipment Page 243 of 362 Test the CPU: TCPU If there is a problem with one of the memory cards, a CED system message is generated and the red LED lights on the faceplate of the card. If there is no problem, exit LD 35: **** Tag defective equipment with a description of the problem and package it for return to a repair center.
  • Page 244 Page 244 of 362 Replacing equipment Removing equipment Software disable the CMA: The associated CPU must be inactive. If you need to switch CPUs: LD 35 SCPU All memory cards served by the CMA must be disabled before the CMA can be disabled. For each memory card: DIS x “x”...
  • Page 245 Replacing equipment Page 245 of 362 Connect cables to the replacement card; connect the bottom cable first. Set the ENB/DIS switch to ENB on the replacement card. Software enable any cards that were disabled: To enable the CMA: ENL CMA x To enable each memory card: ENL x Set the NORM/MAINT switch to NORM on both interface cards.

  • Page 246: Ntnd15, Nt8D68 Floppy Disk Unit

    Page 246 of 362 Replacing equipment NTND15, NT8D68 Floppy Disk Unit Use this procedure to replace the floppy disk unit (FDU). See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...

  • Page 247: Ntnd16, Nt8D69 Multi Disk Unit

    Replacing equipment Page 247 of 362 To software enable the FDU, at the > prompt enter: ENLT (This command is entered directly through the Overlay Loader.) Test the FDU: LD 37 MSI 0 — If there is a problem, an IOD system message is generated. —...
  • Page 248 Page 248 of 362 Replacing equipment Unhook the locking devices on the MDU and gently pull the unit forward two or three inches. Wait at least 10 seconds, then pull the unit out of the card cage. CAUTION You must wait at least 10 seconds before you remove the MDU from the card cage.

  • Page 249: Ntnd31 Rom Card

    Replacing equipment Page 249 of 362 NTND31 ROM Card This read-only memory (ROM) card is attached to the NTND01 Integrated CPU/Memory (ICM) Card. Use this procedure to replace an NTND31 ROM Card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.

  • Page 250: Ntrb33 Fiber Junctor Interface Card

    Page 250 of 362 Replacing equipment Installing equipment Install the replacement ROM card on the ICM card: Plug the replacement ROM card into the pin connector. Install the screw and washer at each corner of the ROM card. Reinsert the ICM card and hook the locking devices. The system will sysload at this point.
  • Page 251 Replacing equipment Page 251 of 362 Set the ENB/DIS switch to DIS. CAUTION To avoid interrupting service, set ENB/DIS switches to DIS before disconnecting or connecting cables. Tag and disconnect cables to the card you are removing. Unhook the locking devices on the card; pull it out of the card cage. Install equipment Set the ENB/DIS switch to DIS on the replacement card.

  • Page 252: P0699798 Air Filter

    Page 252 of 362 Replacing equipment P0699798 Air Filter Use this procedure to replace the air filter in the pedestal. Note: You do not need to power down the system to perform this procedure. Remove the pedestal front grill and set it aside. The air filter is directly above the blower unit in a slot in the pedestal (see Figure 35).

  • Page 253: Qmm42 Security Data Cartridge

    Replacing equipment Page 253 of 362 To install a clean, dry air filter: Make sure the plastic tabs will be on the front of the filter (see Figure 36). Gently push the filter into the pedestal slot until it seats fully in the back.
  • Page 254 Page 254 of 362 Replacing equipment Removing equipment Disable the host (MSI, EMSI, FDI, or IOP) card. For an MSI, EMSI, or FDI card, the associated CPU must be inactive. If you need to switch CPUs: LD 35 SCPU **** exit LD 35 Software disable the MSI, EMSI, or FDI card: LD 37...
  • Page 255 Replacing equipment Page 255 of 362 Installing equipment Plug the replacement data cartridge into the connectors on the component side of the host card. Install the screw that secures the cartridge. CAUTION To avoid system failure, the ID number on the data cartridge must match the ID number of the system.

  • Page 256: Qpc43 Peripheral Signaling Card

    Page 256 of 362 Replacing equipment QPC43 Peripheral Signaling Card Use this procedure to replace a peripheral signaling card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...
  • Page 257 Replacing equipment Page 257 of 362 Insert the replacement card into the vacated slot and hook the locking devices. Set the ENB/DIS switch to ENB on the replacement card. Software enable the card and loops serviced by the card: ENPS x When the process is complete, you will receive a system response.

  • Page 258: Qpc215 Segmented Bus Extender Card

    Page 258 of 362 Replacing equipment QPC215 Segmented Bus Extender Card Use this procedure to replace a segmented bus extender (SBE) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 259 Replacing equipment Page 259 of 362 Set the ENB/DIS switch to DIS. Tag and disconnect cables to the card. Unhook the locking devices on the card; pull it out of the card cage. Installing equipment Set the ENB/DIS switch to DIS on the replacement card. Set option switches on the replacement card the same as on the card you removed.

  • Page 260: Qpc412 Intergroup Switch Card

    Page 260 of 362 Replacing equipment QPC412 InterGroup Switch Card Use this procedure to replace an intergroup switch (IGS) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...
  • Page 261 Replacing equipment Page 261 of 362 Installing equipment Set the ENB/DIS switch to DIS on the replacement card. Insert the replacement card into the vacated slot and hook the locking devices. Connect cables to the replacement card. Set the ENB/DIS switch to ENB on the replacement card. Software enable and test the IGS: ENL IGS xx STAT IGS...

  • Page 262: Qpc441 Three-Port Extender Card

    Page 262 of 362 Replacing equipment QPC441 Three-Port Extender Card Use this procedure to replace a three-port extender (3PE) card. To software disable the 3PE card: — In Options 51C, 61C, and 81C, you must disable the associated NT6D65 Core to Network Interface (CNI) Card. Go to Step 1 on page 262.
  • Page 263 Replacing equipment Page 263 of 362 — In Options 51C, 61C, and 81C, check the status of all configured CNI cards and the network group number of both ports on each CNI card: STAT CNI The CPU associated with the CNI card must become inactive. If you need to switch CPUs: LD 135 SCPU...
  • Page 264 Page 264 of 362 Replacing equipment Table 13 Peripheral signaling card numbers Group/ Peripheral Loops shelf signaling card disabled/enabled 0 / 0 – 0 / 1 – 1 / 0 – 1 / 1 – 2 / 0 – 2 / 1 –...
  • Page 265 Replacing equipment Page 265 of 362 Installing equipment Set the ENB/DIS switch to DIS on the replacement 3PE card. Set option switches on the replacement card the same as on the card you removed. If there is a vintage change, be sure to check Circuit Card: Installation and Testing (553-3001-211) for any differences.
  • Page 266 Page 266 of 362 Replacing equipment Check to see that all cards were enabled. Check the status of the IGS card: LD 39 STAT IGS x “x” is the IGS card number—0 to 19 If the card is still disabled, enable it: ENL IGS xx **** exit LD 39...

  • Page 267: Qpc471, Qpc775 Clock Controller Card

    Replacing equipment Page 267 of 362 QPC471, QPC775 Clock Controller Card Use this procedure to replace a clock controller (CC) card. Note: The QPC775 Clock Controller is used in Canadian and International applications. QPC775 and QPC471 cards cannot be combined in one system. See the Option 11C ISDN BRI Hardware Installation and Maintenance (553-3011-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 268 Page 268 of 362 Replacing equipment Make sure the card you are removing is disabled and the other clock controller card is active and in free run mode. SSCK x TRCK FRUN Disable the clock controller card you are removing. DIS CC x “x”...

  • Page 269: Qpc477 Bus Terminating Unit

    Replacing equipment Page 269 of 362 — In a single-CPU system, complete the replacement procedure by exiting LD 60: **** — In a dual-CPU system proceed with the following steps. Switch CPUs: LD 135 (for Options 51C, 61C, 81, and 81C) SCPU **** Activate the newly installed card and verify that it is active:...
  • Page 270 Page 270 of 362 Replacing equipment — QPC477-B10 BTUs must be used in NT6D60 Core Modules. WARNING Module covers are not hinged; do not let go of the cover. Lift the cover away from the module and set it out of your work area. Turn off power to the module: —...

  • Page 271: Qpc841 Serial Data Interface Card

    Replacing equipment Page 271 of 362 QPC841 Serial Data Interface Card Use this procedure to replace a serial data interface (SDI) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 272 Page 272 of 362 Replacing equipment Installing equipment Set the ENB/DIS switch to DIS on the replacement card. Set option switches on the replacement card the same as on the card you removed. If there is a vintage change, be sure to check Circuit Card: Installation and Testing (553-3001-211) for any differences.

  • Page 273: Qpc579 Cpu Function Card

    Replacing equipment Page 273 of 362 QPC579 CPU Function Card Use this procedure to replace a CPU function (FN) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...
  • Page 274 Page 274 of 362 Replacing equipment Gently unplug the ROM Card from the connectors on the component side of the function card. CAUTION When you remove the ROM card, do not touch other components on the function card. Installing equipment Plug the ROM card into connectors on the component side on the replacement function card.

  • Page 275: Qpc580 Cpu Interface Card

    Replacing equipment Page 275 of 362 QPC580 CPU Interface Card Use this procedure to replace a CPU interface (IF) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages. WARNING Module covers are not hinged;...
  • Page 276 Page 276 of 362 Replacing equipment Installing equipment Set the ENB/DIS switch to DIS on the faceplate of the replacement card. Insert the replacement card into the vacated slot and hook the locking devices. Connect the cable between the interface card and the function card. Enable the interface card: Set the ENB/DIS switch to ENB on the replacement card.

  • Page 277: Qpc584 Mass Storage Interface Card

    Replacing equipment Page 277 of 362 QPC584 Mass Storage Interface Card Use this procedure to replace a mass storage interface (MSI) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 278 Page 278 of 362 Replacing equipment Tag and disconnect the cable to the card you are removing. If the replacement card is an EMSI card, remove the NT8D80 cable from the connector on the MDU. Unhook the locking devices on the card; pull it out of the card cage. Remove the screw that secures the QMM42 Data Cartridge.

  • Page 279: Qpc659 Dual Loop Peripheral Buffer Card

    Replacing equipment Page 279 of 362 Test the MSI card: LD 37 MSI 0 — If there is a problem, an IOD system message is generated and the red LED lights on the faceplate of the card. — If there is no problem, exit LD 37: **** Restore the current data configuration: LD 43...
  • Page 280 Page 280 of 362 Replacing equipment Removing equipment Software disable the dual loop peripheral buffer: LD 32 DISS l s “l s” are the loop and shelf numbers Set the ENB/DIS switch to DIS. Tag and disconnect cables to the card you are removing. Unhook the locking devices on the card;...

  • Page 281: Qpc687 Cpu Card

    Replacing equipment Page 281 of 362 — If there is no problem, exit LD 30: **** Tag defective equipment with a description of the problem and package it for return to a repair center. QPC687 CPU Card Use this procedure to replace the CPU card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 282 Page 282 of 362 Replacing equipment Gently unplug the QPC940 ROM Card from the connectors on the component side of the CPU card. CAUTION When you remove the ROM card, do not touch other components on the CPU card. Installing equipment Plug the ROM card into the connectors on the component side on the replacement CPU card.

  • Page 283: Replacing The Qpc723A Circuit Card

    Replacing equipment Page 283 of 362 Tag defective equipment with a description of the problem and package it for return to a repair center. Replacing the QPC723A Circuit Card Use this procedure to replace a QPC723A card in a peripheral equipment (PE) module.
  • Page 284 Page 284 of 362 Replacing equipment Software enable the card: LD 32 ENLC l s c When the process is complete, you will receive a system response STAT l s c Obtain the status of the card to ensure that the card is enabled **** To exit the program (Optional): Test the card:...

  • Page 285: Qpc742 Floppy Disk Interface Card

    Replacing equipment Page 285 of 362 QPC742 Floppy Disk Interface Card Use this procedure to replace a floppy disk interface (FDI) card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.
  • Page 286 Page 286 of 362 Replacing equipment Tag and disconnect the cable to the card you are removing. Unhook the locking devices on the card; pull it out of the card cage. Remove the screw that secures the QMM42 Data Cartridge. Gently unplug the cartridge from the connectors on the component side of the FDI card.
  • Page 287 Replacing equipment Page 287 of 362 — If there is no problem, exit LD 37: **** Restore the current data configuration: LD 43 **** Note: If three system software disks are used, disks A1 and B1 must be installed in the disk drive units after the restore operation. 10 Tag defective equipment with a description of the problem and package it for return to a repair center.

  • Page 288: Qpc940 Rom Card

    Page 288 of 362 Replacing equipment QPC940 ROM Card This read-only memory (ROM) card is attached to the QPC687 CPU Card. Use this procedure to replace a QPC940 ROM Card. See the X11 Administration (553-3001-311) for a description of all maintenance commands, and the X11 System Messages Guide (553-3001-411) for interpreting system messages.

  • Page 289: Replacing The Security Device On The Nt5D61 Iodu/C

    Replacing equipment Page 289 of 362 Replacing the Security Device on the NT5D61 IODU/C Use this procedure to replace the Security Device on the NT5D61 Input/Output Disk Unit with CD-ROM (IODU/C) Card. The Security Device is a field removable component and is located in the upper right corner of an IODU/C card.

  • Page 290: Replacing The Security Device On A Redundant System

    Page 290 of 362 Replacing equipment Replacing the Security Device on a redundant system The procedure begins with the validation of the new Keycode against the existing Security Device. To access the Core during the replacement procedure, connect a terminal to the J25 port on the I/O panel in the inactive Core Module or Core/Network Module.
  • Page 291 11 Make sure the 8-digit code on the Keycode diskette matches the 8-digit code on the replacement Security Device. 12 With the Nortel side facing upward, slide the replacement Security Device between the security device holder and the holder clip. Do not bend the clip more than necessary when inserting the Security Device.

  • Page 292: Replacing The Security Device On An Option 51C System

    Page 292 of 362 Replacing equipment STAT to see the status of the IODU/Cs **** to exit LD 137 16 Perform the KNEW command: LD 143 to load the program KNEW HD to copy the keycode to the other Core **** to exit the program 17 Reboot the system at a time that will minimize service impact.
  • Page 293 Replacing equipment Page 293 of 362 With the Nortel side facing upward, slide the replacement Security Device between the security device holder and the holder clip. Do not bend the clip more than necessary when inserting the Security Device. Ensure that the Security Device is securely in place.

  • Page 294: Standard 16.00 April

    Installation Tool has loaded. Press <CR> to go to the Install Menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...
  • Page 295 12 At the Main menu select <u> to go to the Install menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 296 14 At the Install menu select <k> - “To install Keycode only.” Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 297 16 Select <q> to quit and reload the system. 17 Select <y> to confirm quit. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...

  • Page 298: Replacing Nt5D20 Iop/Cmdu Cards Or Nt6D63 Iop And Nt6D64 Cmdu Cards With Nt5D61 Iodu/C Cards

    Page 298 of 362 Replacing equipment Replacing NT5D20 IOP/CMDU cards or NT6D63 IOP and NT6D64 CMDU cards with NT5D61 IODU/C cards This procedure replaces NT5D20 IOP/CMDU cards or NT6D63 IOP and NT6D64 CMDU cards on Options 51C/61C/81/81C with NT5D61 IODU/C cards.

  • Page 299: Replacement Procedures For Redundant Systems (Options 61C, 81, 81C)

    Replacing equipment Page 299 of 362 Replacement procedures for redundant systems (Options 61C, 81, 81C) To perform this procedure the following is required: • an Install Program diskette specific to your CP type • a CD-ROM containing generic system software •...

  • Page 300: Splitting The Cores

    Page 300 of 362 Replacing equipment CAUTION If the data dump is not successful, do not continue; contact your technical support organization. A data dump problem must be corrected before proceeding. To access the Core during the replacement procedure, connect a terminal to the J25 port on the I/O panel in the inactive Core Module or Core/Network Module.
  • Page 301 Replacing equipment Page 301 of 362 Verify that Core 0 is the active Core: LD 135 to load the program STAT CPU to check CPU status TEST CPU to test the CPU If Core 0 is active, proceed with step 4. If Core 0 is not the active CPU, swap Cores and verify again: SCPU to swap CPUs...
  • Page 302 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Northern Telecom — Meridian 1 * * * * * * * * * * * *...
  • Page 303 Replacing equipment Page 303 of 362 At the Database Transfer Utility Install menu, select <t> to go to the Tools Menu. NT Meridian - 1 Software/Database/PEROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...
  • Page 304 Page 304 of 362 Replacing equipment At the Database Transfer Utility Tools menu select <s> to archive the database on one or more 2MB diskettes. NT Meridian - 1 Software/Database/PEROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — —...
  • Page 305 Make sure the 8-digit code on the keycode diskette matches the 8-digit code on the Security Device. With the Nortel side facing upward, slide the Security Device between the black round security device holder on the top right hand corner of the IODU/C card and the holder clip.
  • Page 306 Page 306 of 362 Replacing equipment Note: The next step installs the NT5D61AA vintage IODU/C card in Core 1. The AA vintage card has a CD-ROM drive which is required for software installation on Core 1. Ensure that the ENB/DIS switch on the NT5D61AA IODU/C you will install is set to DIS.
  • Page 307 14 When the Main Menu appears, select <u> to go to the Install menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 308 16 At the Install menu, select <b> to install software, database, CP-BOOTROM, and IOP-ROM. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 309 17 Select <a> to continue with the software upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 310 Page 310 of 362 Replacing equipment 18 A Status Summary is displayed indicating what will be installed. Select <y> to confirm the start of installation. INSTALLATION STATUS SUMMARY Choice Option Status Comment from xxxx to xxxx SW: CD to disk SW: disk to ROM Database CP-BOOTROM...
  • Page 311 The terminal displays information about the software upgrade. 19 Select <a> to continue with software installation. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 312 IODU/C. Select <a> to install the customer database. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 313 28 Select <a> to continue with the ROM upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 314 30 Select <y> to begin installation of IOP-ROM upgrade. 31 Select <a> to continue with the IOP-ROM upgrade Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...
  • Page 315 Replacing equipment Page 315 of 362 Switch call processing from Core 0 to Core 1 CAUTION Call processing will be interrupted Perform the next steps carefully. This is the point at which your service is interrupted. Calls in progress will be interrupted, especially if Peripheral Software Download takes place.
  • Page 316 Make sure that the 8-digit code on the Keycode diskette matches the 8-digit code on the Security Device. With the Nortel side facing upward, slide the Security Device between the black round security device holder on the top right hand corner of the IODU/C card and the holder clip.
  • Page 317 14 When the Main Menu appears, select <u> to go to the Install Menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 318 15 Insert the Keycode diskette when prompted and select <a> to continue with the keycode validation. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 319 16 At the Install menu, select <o> to copy the software from Core 1 to Core 0. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 320 17 Select <a> to copy /p partition from Core 1 to Core 0. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 321 23 When the Install Menu appears, select <f> to install IOP-ROM. 24 Select <a> to continue with the IOP-ROM upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...
  • Page 322 Page 322 of 362 Replacing equipment 33 Select <a> to reboot the system. The system will reboot. Wait for the “INI” and “DONE” messages to display before continuing. It will take at least 70 seconds between the “DONE” and “INI” messages. Return the system to redundant mode To place the system back in the redundant (normal) mode with automatic switchover capability, perform the following steps in uninterrupted sequence...
  • Page 323 Replacing equipment Page 323 of 362 Clear the display, and minor alarms on both Cores. CDSP Clear the displays on the Cores. CMAJ Clear major alarm. CMIN ALL Clear minor alarm. Get the status of the Cores, CNIs, and memories STAT CPU Get the status of both Cores.

  • Page 324: Replacement Procedure For Option 51C Systems

    Page 324 of 362 Replacing equipment Insert the database diskette into both IODU/Cs for backup. Load LD 43 and datadump. This creates a backup on the floppy disk in the active IODU/C. LD 43 Data dump complete (or database backup complete) is printed when the data dump has been successfully completed.
  • Page 325 Replacing equipment Page 325 of 362 When “DATADUMP COMPLETE” and “DATABASE BACKUP COMPLETE” appear on the terminal, enter **** to exit the program CAUTION If the data dump is not successful, do not continue; contact your technical support organization. A data dump problem must be corrected before proceeding.
  • Page 326 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Northern Telecom — Meridian 1 * * * * * * * * * * * *...
  • Page 327 Replacing equipment Page 327 of 362 At the Database Transfer Utility Install menu, select <t> to go to the Tools Menu. NT Meridian - 1 Software/Database/PEROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...
  • Page 328 Page 328 of 362 Replacing equipment At the Database Transfer Utility Tools menu select <s> to archive the database on one or more 2MB diskettes. NT Meridian - 1 Software/Database/PEROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — —...
  • Page 329 13 Make sure the 8-digit code on the Keycode diskette matches the 8-digit code on the Security Device. 14 With the Nortel side facing upward, slide the Security Device between the black round security device holder on the top right hand corner of the IODU/C card and the holder clip.
  • Page 330 21 At the Main menu select <u> to go to the Install menu. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 331 22 Insert the Keycode diskette when prompted and select <a> to continue with the keycode validation. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 332 23 At the Install menu, select <b> to install software, database, CP-BOOTROM, and IOP-ROM. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 333 24 Select <a> to continue with the software upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 334 Page 334 of 362 Replacing equipment 25 A Status Summary is displayed indicating what will be installed. Select <y> to confirm the start of installation. INSTALLATION STATUS SUMMARY Choice Option Status Comment from xxxx to xxxx SW: CD to disk SW: disk to ROM Database CP-BOOTROM...
  • Page 335 The terminal displays information about the software upgrade. 26 Select <a> to continue with software installation. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 336 IODU/C. Select <a> to install the customer database. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 337 31 Select <a> to continue with the CP-BOOTROM upgrade. Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — — — —...
  • Page 338 32 Select <y> to begin installation of IOP-ROM upgrade. 33 Select <a> to continue with the IOP-ROM upgrade Nortel Meridian - 1 Software/Database/PEROM CDROM INSTALL Tool (x11) — — — — — — — — — — — — — — — — — — — —...

  • Page 339: Completing The Upgrade

    Replacing equipment Page 339 of 362 Completing the upgrade Log into the system. Verify CPU and CNI functionality: LD 135 to load the program STAT CPU to check the CPU status STAT CNI to verify CNI functionality **** to exit the program Make a backup of the customer database on 2MB diskettes: Load the Equipment Data Dump Program (LD 43).
  • Page 340 Page 340 of 362 Replacing equipment 553-3001-520 Standard 16.00 April 2000...
  • Page 341 Page 341 of 362 Replacing an NT7D10 PDU with an NT7D67CB PDU Use this procedure to replace an NT7D10 PDU with an NT7D67CB PDU in DC-powered systems. Note 1: The NT7D67CB PDU replaces the NT7D10 PDU. However, both PDUs can be used in a system. Note 2: Conduit is not required with the NT7D67CB PDU but can be used.
  • Page 342 Page 342 of 362 Replacing an NT7D10 PDU with an NT7D67CB PDU Removing equipment Check the length of existing wire to the PDU. Due to the location of the field wiring terminal block on the NT7D67CB PDU, 6 to 9 inches more length is required to reach its terminals than is required to reach those on the NT7D10 PDU.
  • Page 343 Replacing an NT7D10 PDU with an NT7D67CB PDU Page 343 of 362 Remove the grill on the rear of the pedestal. Set all five circuit breakers on the PDU to OFF (down). Figure 37 shows the NT7D10 PDU in the rear of the pedestal. Figure 37 NT7D10 Power Distribution Unit DC System monitor...
  • Page 344 Page 344 of 362 Replacing an NT7D10 PDU with an NT7D67CB PDU Disconnect cables to the module above the pedestal (module 0): Remove the rear cover on the module. Remove the I/O safety panel over the backplane in the module. Disconnect the system monitor ribbon cable from the PDU and from the module and set it aside for reconnection with the replacement NT7D67CB PDU.
  • Page 345 Replacing an NT7D10 PDU with an NT7D67CB PDU Page 345 of 362 Figure 38 Cabling between the PDU and the field wiring terminal block View looking down at the pedestal Blower unit position in the pedestal Pedestal rear Field wiring pulled out of terminal block the pedestal...
  • Page 346 Page 346 of 362 Replacing an NT7D10 PDU with an NT7D67CB PDU 12 Move the NT7D10 PDU out of the work area. Installing equipment WARNING The NT7D67CB PDU is much heavier than the NT7D10 PDU. Note: The conduit attachment plate provided in the NT7D0902 Rear Mount Conduit Kit must be installed as a safety cover and to restrain wiring to the terminal block.
  • Page 347 Replacing an NT7D10 PDU with an NT7D67CB PDU Page 347 of 362 Figure 40 NT7D67CB Power Distribution Unit DC System monitor/power supply assembly NT7D10CA FLTR / PWR DIST NT7D67CB UNIT ASSY Safety cover—the field terminal block is behind the cover BLO CB Circuit Circuit...
  • Page 348 Page 348 of 362 Replacing an NT7D10 PDU with an NT7D67CB PDU Install the NT7D67CB PDU: Connect the green frame ground wire from the PDU to the frame ground bolt inside the pedestal. Guide the power cable connector through the hole in the top of the pedestal.
  • Page 349 Replacing an NT7D10 PDU with an NT7D67CB PDU Page 349 of 362 Reconnect all external wiring to the terminal block on the PDU (see Figure 41): Remove the plastic safety cover over the terminal block. Connect the red BAT (–48 V) wires: –...
  • Page 350 Page 350 of 362 Replacing an NT7D10 PDU with an NT7D67CB PDU 11 Reseat the blower unit: Lift the unit slightly and slide it into the pedestal glides. Set the toggle switch to ON (right). Tighten the screws on the front of the unit. Replace the front pedestal grill.
  • Page 351 Page 351 of 362 Index Numerics 3PE (Three-Port Extender) Cards backplanes in Core Module Card Cage replacement, 124 jumpers, 121 in Network Module Card Cage replacement, Battery Pack Assembly in MSPS Card replacement, 238 installing, 265 in rectifier replacement, 113 removing, 262 installing, 37 removing, 36...
  • Page 352 Page 352 of 362 Index CC (Clock Controller) Cards CMA (Changeover and Memory Arbitrator) Cards in 3PE Card replacement, 262, 263 installing, 244 in Core Module Card Cage replacement, 117, removing, 244 125, 128 CMDU (Core Multi Drive Unit) installing, 268 in CP Card replacement, 59, 142, 227 removing, 267 installing, 137...
  • Page 353 Index Page 353 of 362 CPU Function Cards Dual Port SDI Paddle Boards installing, 274 installing, 179 removing, 273 removing, 178 CPU Interface cards in CPU Function Card replacement, 273 in CPU/Network Module Card Cage E&M Trunk Cards replacement, 88 installing, 167 in ROM Card replacement, 240 removing, 166, 167...
  • Page 354 Page 354 of 362 Index IOD system messages battery pack replacement, 38 grills, removing, 31 CPU Card replacement, 282 Data Cartridge replacement, 255 FDI Card replacement, 286 hard disk synchronization in CP Card replacement, FDU replacement, 247 MDU replacement, 219, 248 HWI0533 messages in CP Card replacement, 58, 61, MSI Card replacement, 279 145, 224, 229...
  • Page 355 Index Page 355 of 362 LD 30 program LD 35 program CPU/Network Module Card Cage CMA replacement, 244 replacement, 91 CPU Function Card replacement, 273 DLB replacement, 280 CPU Interface Card replacement, 275 IPE Module Card Cage replacement, 217 CPU Module Card Cage replacement, 205 maintenance telephones for, 15 CPU/Network Module Card Cage Network Module Card Cage replacement, 214...
  • Page 356 Page 356 of 362 Index LD 43 program LEDs in Thermostat Harness replacement, 182, 183 CMDU replacement, 136 Line Cards CNI Card replacement, 139 installing, 167 FDI Card replacement, 285, 287 removing, 166 IOP Card replacement, 66, 67, 71, 72, 75, 76, Line Side T1 80, 81, 82, 131 removing, 166...
  • Page 357 Index Page 357 of 362 MSPS (Misc/SDI/Peripheral Signaling) Cards NT5D30AA Dual InterGroup Switch (DIGS) card, in battery pack replacement, 36 installing, 238 NT5K09 Quad Digitone Receiver, 40 removing, 238 installing, 39, 41 MTA (maintenance set allowed) class of service, 15 removing, 39, 40 Multi User Login feature, 13 NT5K10 Dual Loop Peripheral Buffer Card (IDLB),...
  • Page 358 Page 358 of 362 Index NT7D14 Power Supply AC NT8D18 Network/DTR Cards installing, 152 installing, 174 removing, 151 removing, 173 NT7D15 System Monitors NT8D19 Memory/Peripheral Signaling Cards, 174 installing, 154 NT8D21 Power Supply AC removing, 153 installing, 152 NT7D67CB Power Distribution Unit DC removing, 151 installing, 158 NT8D22 System Monitors...
  • Page 359 Index Page 359 of 362 NT8D56AC Module Power Distribution Units NTND02 Misc/SDI/Peripheral Signaling Cards installing, 198 installing, 238 removing, 198 removing, 238 NT8D57 Module Power Distribution Units NTND08 ROM Cards installing, 198 installing, 240 removing, 198 removing, 240 NT8D68 Floppy Disk Units NTND09 Memory Cards installing, 246 installing, 242...
  • Page 360 Page 360 of 362 Index PWR system messages, 177 P0699798 Air Filters installing, 253 QMM42 Security Data Cartridges removing, 252 installing, 255 P0741489 Extraction Tool, 22 removing, 254 packaging, 20 QPC43 Peripheral Signaling Cards Paddle Boards installing, 256 installing, 179 removing, 256 removing, 178 QPC215 Segmented Bus Extender Cards...
  • Page 361 Index Page 361 of 362 QPC659 Dual Loop Peripheral Buffer Cards removing/replacing installing, 280 Local Carrier Interface card, 161 removing, 280 Remote Carrier Interface card, 162 QPC687 CPU Cards replacing installing, 282 NT1P61 Fibre Superloop Network cards, 49 removing, 281 NT1P62 Fibre Peripheral Controller card, 51 QPC742 Floppy Disk Interface Cards Ringing Generators...
  • Page 362 Page 362 of 362 Index SDL system messages, 165 Tone Detector Cards Security Data Cartridges removing, 166 installing, 255 tones, testing, 15 removing, 254 top caps serial data interface (SDI) card, 271 in Air Probe Harness replacement, 186, 189 slaves in System Monitor replacement, 177 in Fan Unit replacement, 33, 35 SPRE (Special Prefix) numbers for maintenance in Thermostat Harness replacement, 180, 184...
  • Page 364 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. SL-1 and Meridian 1 are trademarks of Nortel Networks. Publication number: 553-3001-520 Document release: Standard 16.00...

Table of Contents
