Each channel on MIM-8ASE/MIM-16ASE has only one LED.
Table 113 LED description
LED
LINK
ACTIVE
Interface cables and the connection methods
For more information about asynchronous serial port cables and the connection methods, see
"Asynchronous serial

POS terminal access interface module

•
MIM-6FCM
Introduction
The 6-port fast connect modem interface module (FIC-6FCM) provides services for point of sale
(POS) terminal devices to fast dial up to a bank card accounting system.
NOTE:
The point of sale (POS) access service refers to a type of smart card service widely used in places
such as shopping malls and gasoline service stations. It links a POS terminal device located in a
shopping mall or a gasoline service station to a bank card accounting system to provide services.
Interface specifications
Table 114 Interface specifications
Item
Connector
Number of connectors
Cable
Supported protocols
Interface LEDs

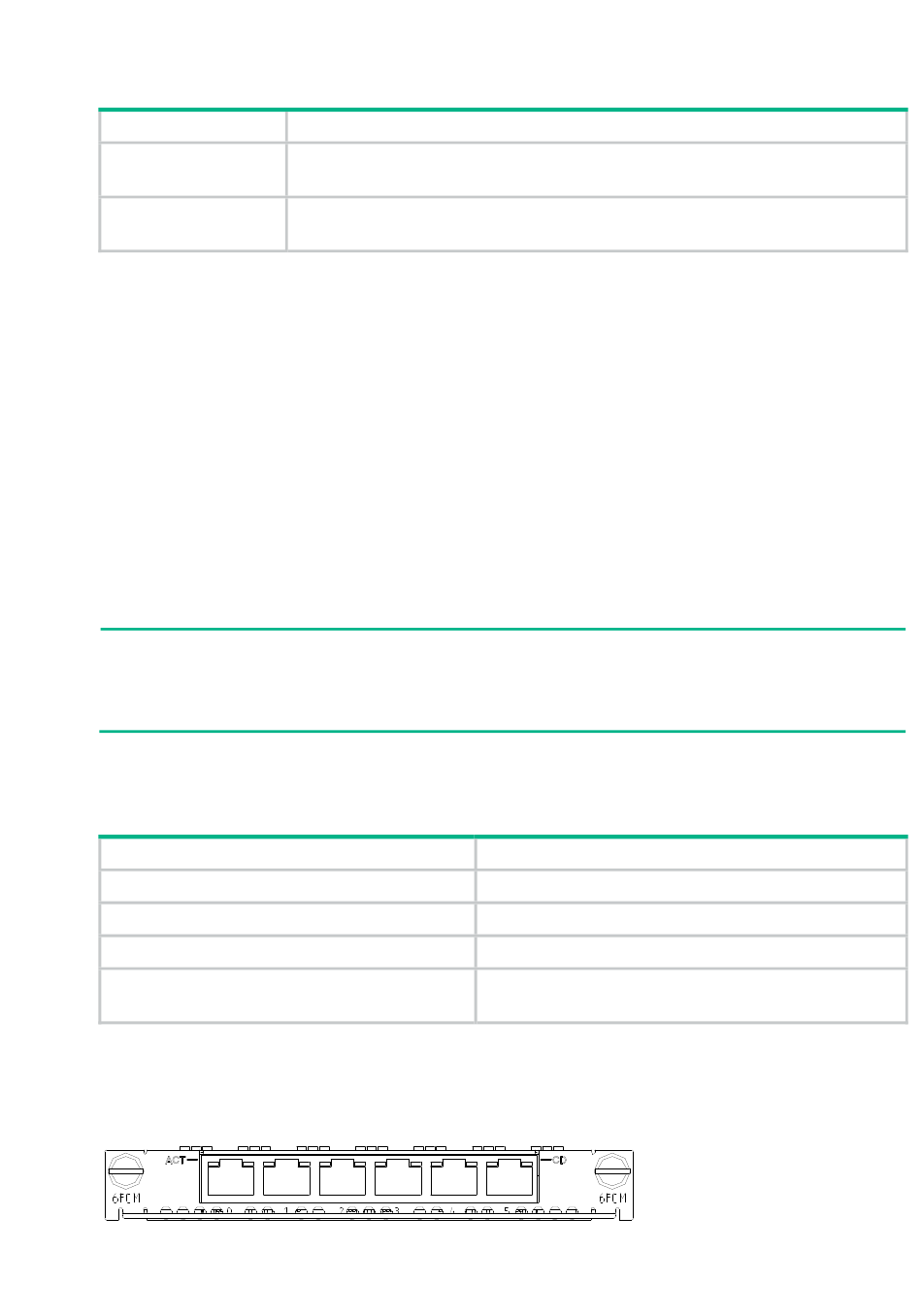

Figure 91 MIM-6FCM panel
Description
•
Off: No link is present;
•
On: A link is present.
•
Off: No data is being transmitted or received.
•
Flashing: Data is being transmitted or received.
ports."
Description
RJ-45
6
Telephone cable with ferrite core
•
ITU-T-V.22 (PSK/QPSK)
•
V.22 BIS (QAM)
83
