SIC-3G-CDMA

Introduction
The SIC-3G-CDMA module is used to access 3G WLANs. It supports:
•
CDMA 2000 1x RTT
•
1x EV-DO Rev.0
•
1x EV-DO Rev.A
Interface specifications
Table 48 Interface specifications
Item
Connector type
Number of connectors
Interface standard
Cable type
Rates
Services
Interface LEDs

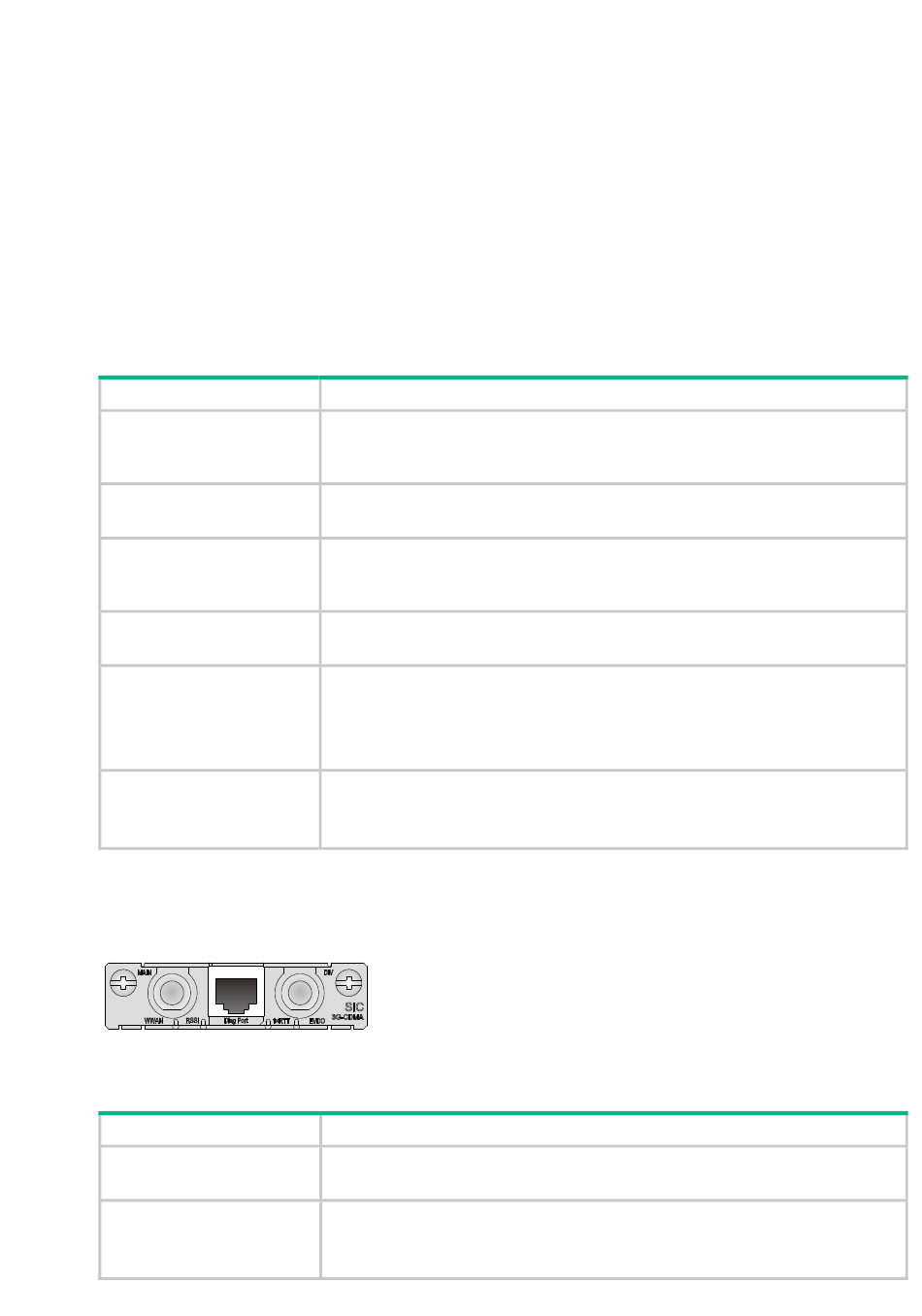

Figure 39 SIC-3G-CDMA panel
Table 49 LED description
LED
WWAN
RSSI
Description
•
TNC RF: Antenna for accessing WLANs.
•
RJ-45: For connecting to a third-party WLAN debugging and testing
software such as CAIT of Qualcomm.
•
2 TNC RF
•
1 RJ-45
•
TNC RF: Omni antenna, supporting CDMA 2000 1 No RTT, 1 No EV-DO
Rev.0, 1 No EV-DO Rev.A.
•
RJ-45: RS-232
•
TNC RF: None
•
RJ-45: AUX cable
Network standards:
•
1 No EV-DO Rev.A (Downlink: 3.1 Mbps, uplink: 1.8 Mbps)
•
1 No EV-DO Rev.0 (Downlink: 2.4 Mbps, uplink: 153.6 Kbps)
•
1 No RTT (Downlink: 153.6 Kbps, uplink: 153.6 Kbps)
•
CDMA 2000 1x RTT
•
1 No EV-DO Rev.0
•
1 No EV-DO Rev.A
Description
•
Steady green indicates that a link is present.
•
Flashing green indicates that data is being transmitted or received.
•
Steady green indicates strong signal.
•
Flashing green indicates middle or low signal.
•
Off indicates weak signal or no signal.
