H3C S9500 LSB1FW2A0 Card Manual

Manual version: T2-082324-20141219-C-1.02
H3C S9500 LSB1FW2A0 Card Manual

1 Card identifier

The card identifier LSB1FW2A0 is at the upper right corner of the front panel.

2 Introduction

The LSB1FW2A0 module provides one console port, one CF card slot, two USB interfaces, two
10/100/1000BASE-T management Ethernet electrical interfaces, and two management Gigabit combo
interfaces.
You can use a GE port or combo interface to provide the following functions:
In-band management.
•
Outgoing interface for log messages.
•
Failover interface for stateful failover.
•

3 Specifications

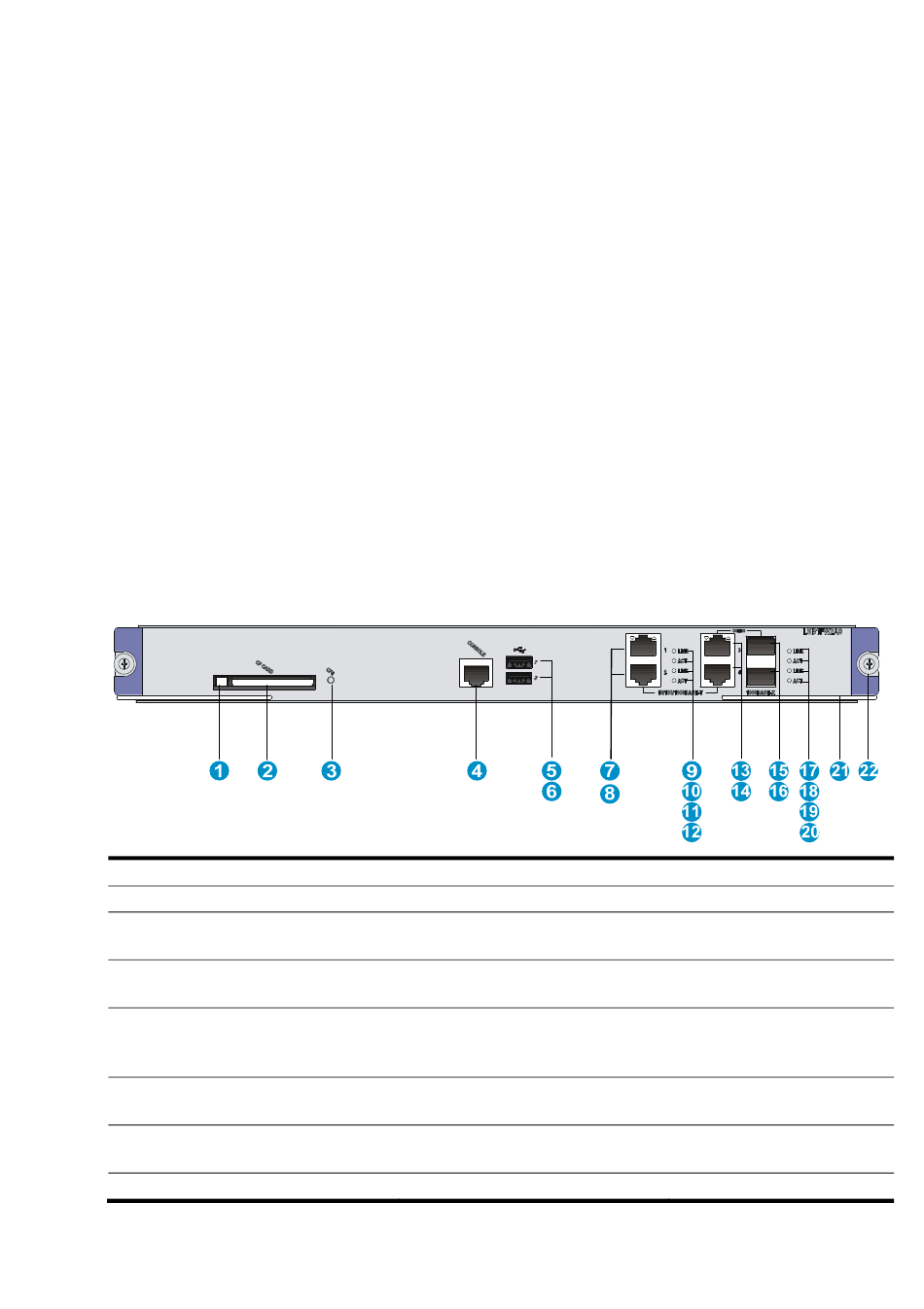

Figure 1 Front panel
(1) CF card eject button
(4) Console port (CONSOLE)
(7) Management Ethernet interface 1
(10/100/1000BASE-T)
(10) Management Ethernet interface 1
LED (ACT)
(13) Management interface 3
(Electrical port of combo interface
10/100/1000BASE-T)
(16) Management interface 4 (Optical
port of combo interface 1000BASE-X)
(19) Management interface 4 LED
(LINK)
(22) Captive screw
(2) CF card slot (CF CARD)
(5) USB interface 1 (reserved)
(8) Management Ethernet interface
2 (10/100/1000BASE-T)
(11) Management Ethernet interface
2 LED (LINK)
(14) Management interface 4
(Electrical port of combo interface
10/100/1000BASE-T)
(17) Management interface 3 LED
(LINK)
(20) Management interface 4 LED
(ACT)
i
BOM: 3123A124
(3) CF LED (CFS)
(6) USB interface 2 (reserved)
(9) Management Ethernet
interface 1 LED (LINK)
(12) Management Ethernet
interface 2 LED (ACT)
(15) Management interface 3
(Optical port of combo
interface 1000BASE-X)
(18) Management interface 3
LED (ACT)
(21) Ejector lever
