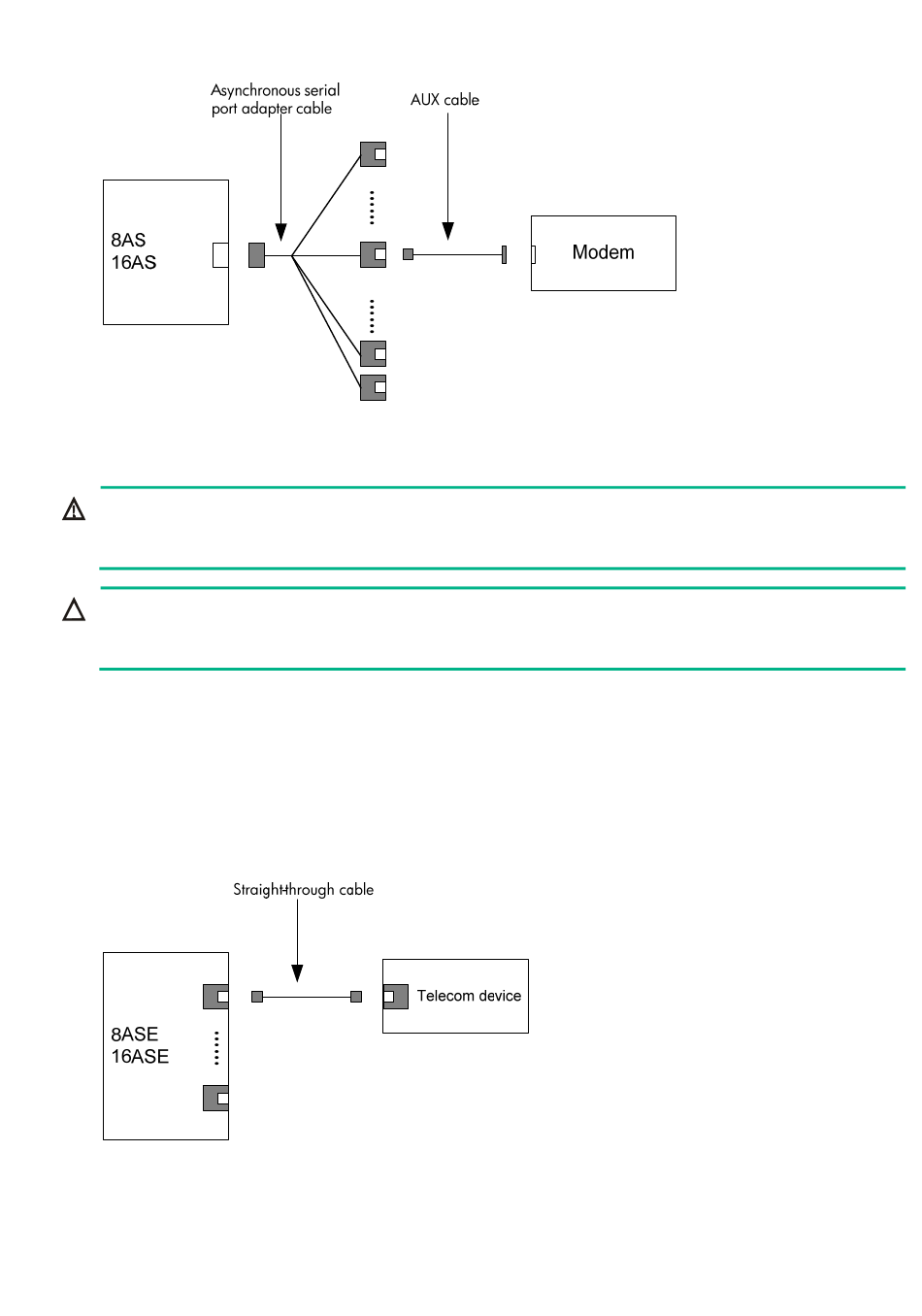

Figure 181 Connecting a modem
Connecting a MIM-8ASE/MIM-16ASE/FIC-8ASE/FIC-16ASE interface module
WARNING!
To avoid damage to the device and the ports, do not plug or unplug the MIM-8ASE/MIM-16ASE
module interface cable when the router is powered on.
CAUTION:
To avoid damages to the interface module or the chassis, make sure you insert the cable into the
right interface.
Choose the cable connection type according to the remote device type:
•
If the remote device is a telecommunications device with an RJ-45 interface, connect it with the
RJ-45 interface of the MIM-8ASE/MIM-16ASE/FIC-8ASE/FIC-16ASE interface module by a
straight-through cable. The sequence is shown in the following figure:
Figure 182 Connecting a telecommunications device
