Interface specifications
Table 172 Interface specifications
Item
Connector
Number of connectors
Interface standard
Interface rate
Interface cable
Supported services
Interface LEDs

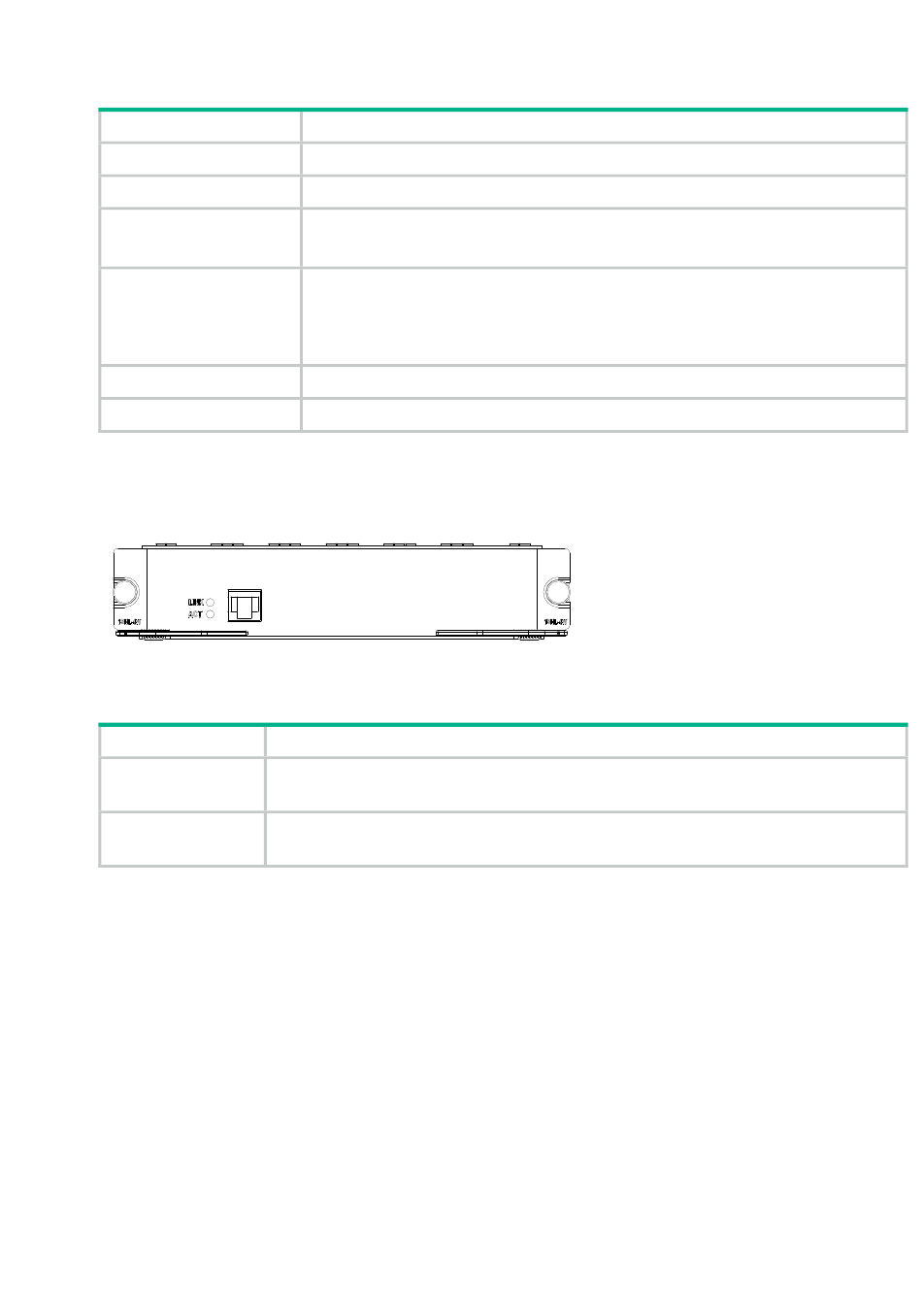

Figure 144 FIC-1SHL-4W panel
Table 173 LED description
LED
LINK
ACT
Interface cables and the connection methods
For more information about G.SHDSL interface cables and the connection methods, see
interface."

FIC-1G.SHDSL

Introduction
The 1-port single-pair high-speed digital subscriber line module (FIC-1G.SHDSL) uses trellis coded
pulse amplitude modulation (TCPAM) for coding and provides the symmetric rates up to 2.3 Mbps.
Its transmission speed can automatically adapt to cable length and conditions.
Description
RJ-11
1
ITU-T G991.2
ITU-T G994.1 handshaking
In single-pair mode, supports the sending/receiving independent symmetric
rates in the range from 192 kbps to 2312 kbps in steps of 8 kbps.
In dual-pair mode, supports the sending/receiving independent symmetric rates
in the range from 384 kbps to 4624 kbps in steps of 16 kbps.
Tailor-made 4-wire telephone cable
G.SHDSL over ordinary telephone lines
Description
•
Off: No link is present.
•
On: A link is present.
•
Off: No data is being transmitted or received.
•
Flashing: Data is being received or transmitted.
