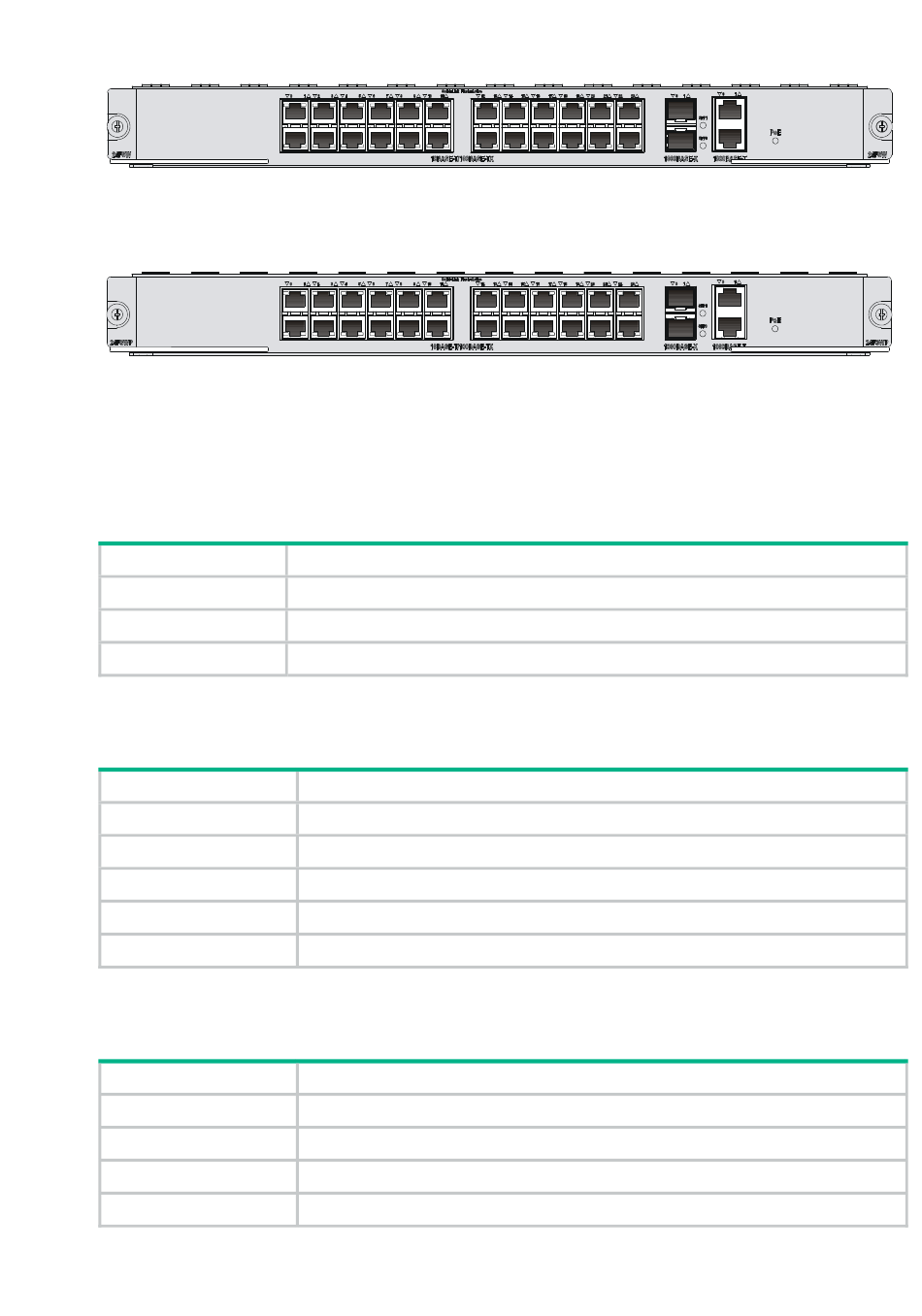

Figure 109 DFIC-24FSW panel
Figure 110 DFIC-24FSWP panel
On the FIC-16FSW/FIC-16FSWP/DFIC-24FSW/DFIC-24FSWP panel, each port on the network
connector corresponds to one green LED.
Table 137 LED description for the FIC-16FSW/FIC-16FSWP/DFIC-24FSW/DFIC-24FSWP FE
interface
LED
Steady green
Off
Flashing green
Table 138 LED description for the FIC-16FSW/FIC-16FSWP/DFIC-24FSW/DFIC-24FSWP GE
interface
LED
Off
Steady green
Flashing green
Steady yellow
Flashing yellow
Table 139 LED description for the FIC-16FSW/FIC-16FSWP/DFIC-24FSW/DFIC-24FSWP fiber
port
LED
Off
Steady green
Flashing green
Steady yellow
Description
A link is present, but no data is being transmitted and received.
No link is present.
A link is present and data is being transmitted and received (ACT).
Description
No link is present.
A 1000 Mbps link is present, but no data is being transmitted and received.
A 1000 Mbps link is present and data is being transmitted and received (ACT).
A 100 Mbps link is present, but no data is being transmitted and received.
A 100 Mbps link is present and data is being transmitted and received (ACT).
Description
No link is present.
A link is present, but no data is being transmitted and received.
A link is present and data is being transmitted and received (ACT).
