FIC-1VE1

Introduction
The 1-port E1 voice interface module (FIC-1VE1) can handle dense voice signals in VoIP system. It
provides a CE1/PRI/R2 port, allowing the access of 30 channels of voice signals.
Interface specifications
Table 201 Interface specifications
Item
Connector
Number of connectors
Operating mode
Interface rate
Cable
Supported service
Interface LEDs

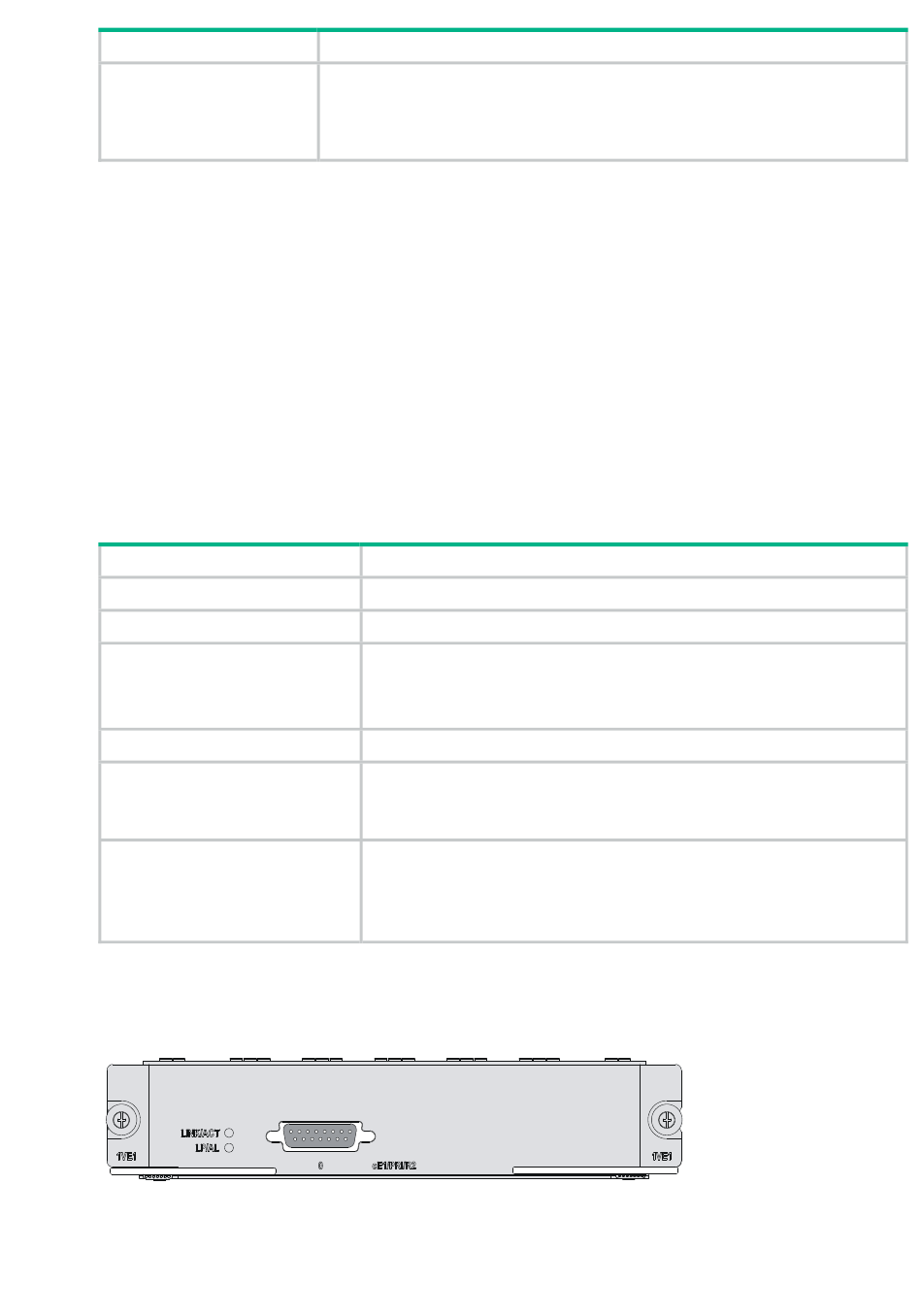

Figure 169 FIC-1VE1 panel
Description
•
On: The interface is in a loopback.
•
Off: No loopback or alarm is present.
•
Flashing: An alarm indication signal (AIS), loss of frame alignment (LFA)
signal, or remote alarm indication (RAI) signal is present.
Description
D15
1
CE1
ISDN PRI
R2
2.048 Mbps
•
E1 120-ohm balanced twisted pair cable
•
75ohm-to-120ohm adapter
•
Network interface connector
•
R2 signaling
•
DSS1 signaling
•
IP Fax
•
General VoIP features in Comware
