BSV/BSE interface

BSV/BSE interface cable appearance and applicable models

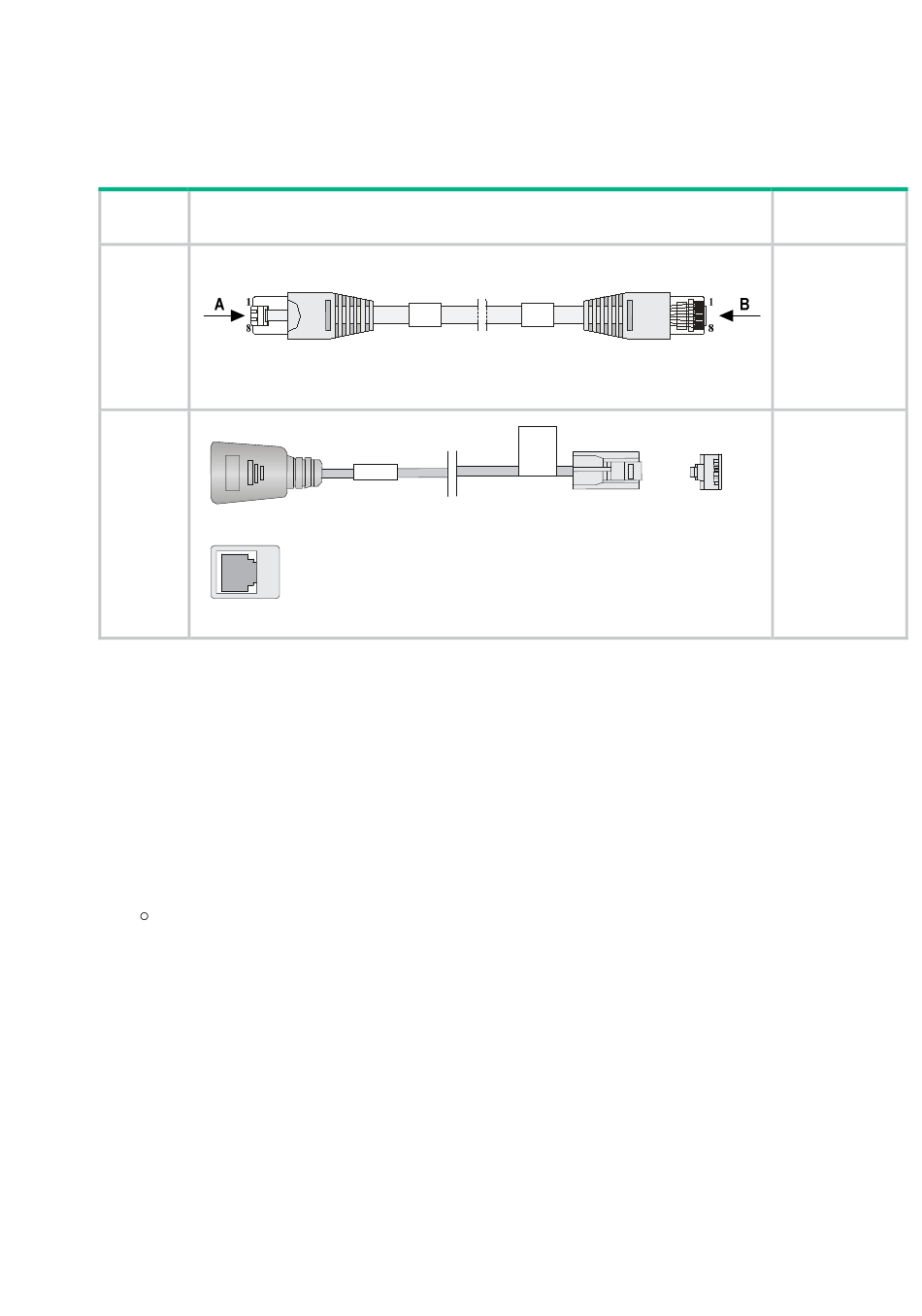

Table 233 BSV/BSE interface cable appearance and applicable models
Cable
ISDN S/T
interface
standard
cable
ISDN S/T
interface
crossove
r cable
Connecting a SIC-1BSV / SIC-2BSV / MIM-4BSV interface module cable
BSV interface supports the User and Network operating modes. The BSV interface works in User
mode when connecting to an ISDN network, or works in Network mode when connecting to TE
devices such as the digital telephones or the BSV interfaces working in User mode.
Choose the cable connection type according to the operating mode:
•
When the BSV interface works in User mode, choose the connection method according to the
type of the cable provided by the service provider:
If the service provider provides an ISDN U interface cable, you must use an NT1 device for
adaptation. Connect one end of the standard ISDN S/T interface cable to the RJ-45
interface of the BSV interface module. Connect the other end of the standard ISDN S/T
interface cable to the S/T interface of the NT1 device. Connect the ISDN U interface cable to
the U interface on the NT1 device.
Appearance
1 × RJ-45 < ---- > 1 × RJ-45
1 × RJ-45 (female) < ---- > 1 × RJ-45 (male)
186
Applicable
models
SIC-1BSV
SIC-2BSV
MIM-4BSE
MIM-2BSV
MIM-4BSV
FIC-4BSE
SIC-1BSV
SIC-2BSV
MIM-2BSV
MIM-4BSV
